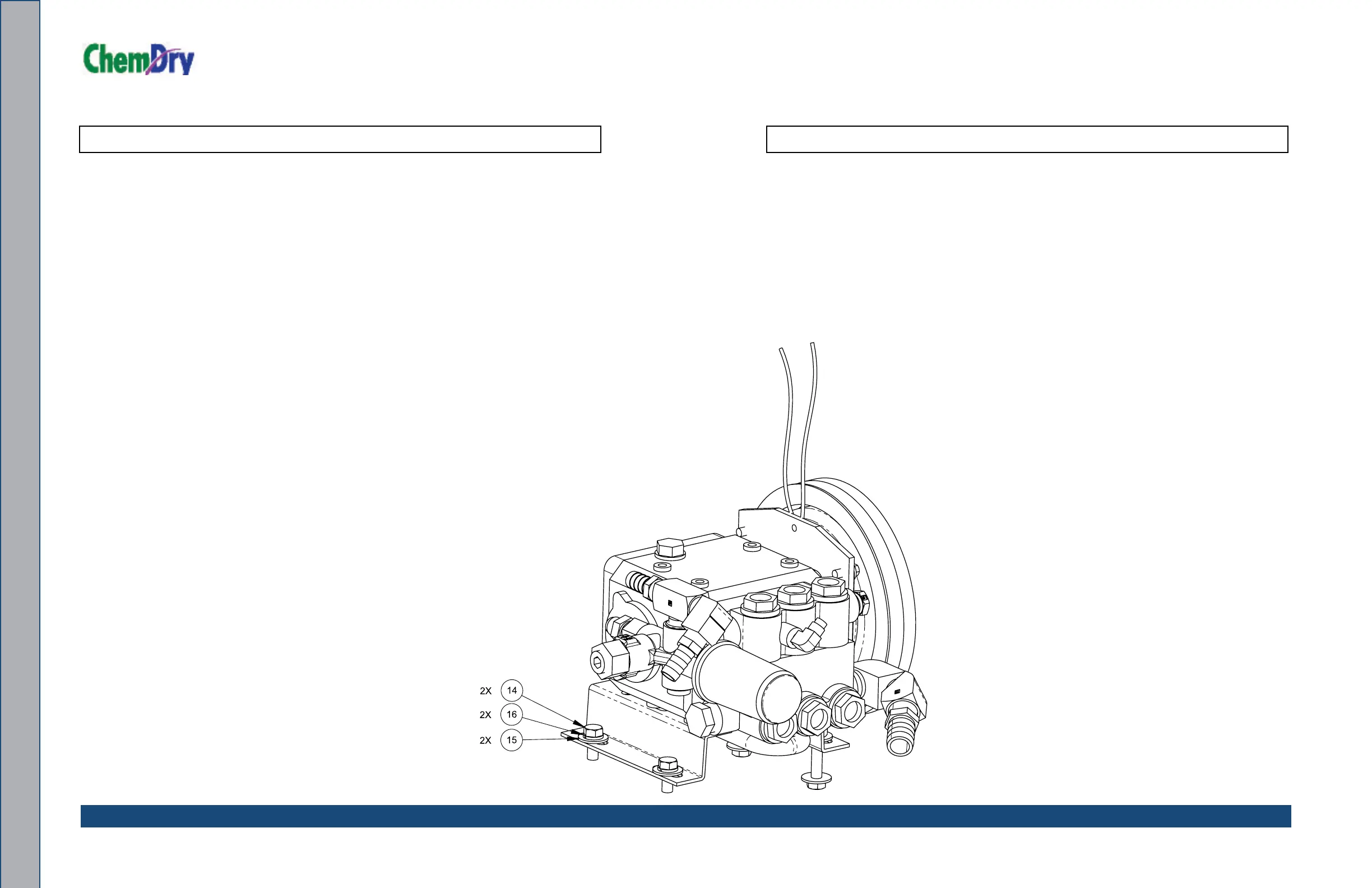

Pump Assembly Parts List
Item Part Number Description Qty
1 610-009-747 Assembly, By-Pass Valve - CTS 403 Flex 1
2 000-036-008 Clutch, 7” O.D. 24MM Single Groove 1
3 000-052-087 Elbow, 1/2” NPT Street 1
4 000-052-081 Elbow, 1/2” NPT Street X 45 Degree 1
5 000-052-531 Elbow, 1/8” NPT X 1/4” SAE 1
6 000-052-086 Elbow, 3/8” NPT Street 1
7 000-068-219 Hose, Drain 1
8 000-052-129 Insert, #812, 1/2NPT X 3/4 Hose 1
9 000-094-038 Nut, 5/16”-18UNC Hex Nylock 2
10 000-105-148 Plate, Clutch Mount Pump 1
11 000-111-042 Pump 1
12 000-143-221 Screw, M6-1 X 14MM Lg. Hex Head 4
13 000-143-375 Screw, 5/16”-18UNC X 1.75” Lg. Hex Head Grd. 8 Z/P 2
14 000-143-012 Screw, 5/16”-18UNC X 3/4” Lg. 2
15 000-174-004 Washer, 5/16” Flat, USS 6
16 000-174-018 Washer, 5/16” Lock 2
