HydraMaster CTS 403 Flex - Machine Assembly with 50 Gallon Tank Parts List

Assemblies and Parts Lists: 8-6
5.813
61.938
106.809
60.620
12.500
35.125
6.375
6.188 24.000 14.190
D
C
B
A
A
B
C
D
1
3
4 5
6
7
8
8
7
6
5
4
3
2
1
E
F
E
F
SCALE: 1:6
SHEET 2 OF 2
PROPRIETARY INFORMATION
11015 47th Avenue West,
Mukilteo, Washington 98275
D
SIZE
PART NUMBER
WEIGHT:
750-010-749-10
REV
PACKAGE, CTS 403 FLEX w/ 50 HRI TANK
B
PRJ000245
M.B.B.
M.B.B.
L.O.L.
DRAWN
CHECKED
APPVD
01/15/2020
01/15/2020
01/15/2020
CODE:
815.88

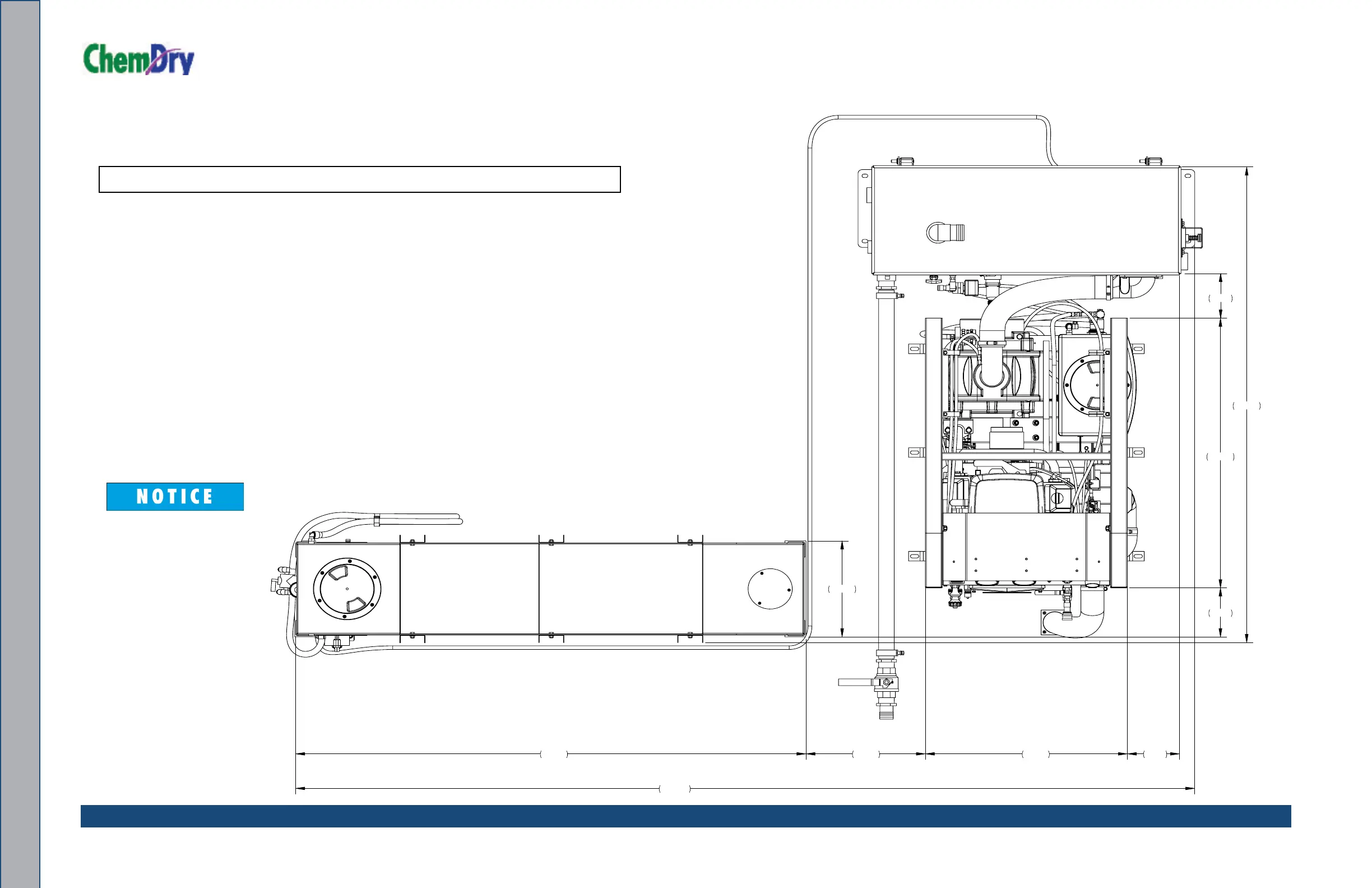

Figure 8-5. Machine Assembly with 50 Gallon Tank - View 2 of 2
750-010-749-10 Rev. B
Item Part Number Description Qty
1 610-050-749 ASSEMBLY, CONSOLE - CTS 403 FLEX 1
2 000-163-751 ASSEMBLY, TANK - 50 GAL - HRI FLEX KIT 1
3 610-003-749 ASSEMBLY, 70 GALLON URT - CTS 403 1
4 000-041-707 ASSEMBLY, COVER - PUMP - HRI FLEX 1
5 601-021-752 ASSEMBLY, PUMP - PASSENGER - HRI FLEX KIT 1
6 000-063-078 HARNESS, WIRE - CTS 403 FLEX 1
7 000-068-598 HOSE, 1-1/2” DUMP - BLUE 1
8 000-068-317 HOSE, 1-1/2” X 10’ WHIP BLUE 1
9 000-068-990 HOSE, 1/4” X 125’ SOLUTION 1
10 000-068-065 HOSE, 2” X 50’ VACUUM BLUE 1
11 000-078-934 KIT, INSTALLATION VER 3 - HRI FLEX 1
12 000-078-614 KIT, PARTS PACKAGE CTS 403 1
13 000-078-515 KIT, THRU FLOOR EXHAUST 2.5” 1
Machine Assembly with 50 Gallon Tank Parts List
Items 6 - 12 not shown
on illustration.
