HydraMaster CTS 403 Flex - Page 76

8-5: Assemblies and Parts Lists
1
3
2
5
4
13
2
000-078-957
OPTIONAL INSTALL: DUMP HOSE
HOOK UP KIT (PART PF 000-078-614)
2 000-068-776
HOSE 2.5" ID X 30" LG.
(PART OF 000-078-614)
B
NOTES:
1. ITEMS ARE NOT SHOWN.
2
1
1
1
1
1
1
LTR REVISION DESCRIPTION CODE DATE BY CHKD APPVD
A RELEASE DRAWING.
NEW
1/15/2020 L.O.L. M.B.B. M.B.B.
B
ADDED 000-078-957 TO THE DRAWING. UPDATED
FIELD NOTES.
NA
02/10/2020 P.E. M.B.B. M.B.B.
ITEM NO. QTY. DESCRIPTION MATERIAL PART NO.
13 1 KIT, THRU FLOOR EXHAUST 2.5" VARIOUS 000-078-515
12 1 KIT, PARTS PACKAGE CTS 400 VARIOUS 000-078-614
11 1 KIT, INSTALLATION VER 3 - HRI FLEX VARIOUS 000-078-934
10 1 HOSE, 2" X 50' VACUUM BLUE VARIOUS 000-068-065
9 1 HOSE, 1/4" X 125' SOLUTION VARIOUS 000-068-990
8 1 HOSE, 1-1/2" X 10' WHIP BLUE VARIOUS 000-068-317
7 1 HOSE, 1-1/2" DUMP - BLUE VARIOUS 000-068-598
6 1 HARNESS, WIRE - CTS 400 FLEX VARIOUS 000-063-078
5 1 ASSEMBLY, PUMP - PASSENGER - HRI FLEX KIT VARIOUS 601-021-752
4 1 ASSEMBLY, COVER - PUMP - HRI FLEX VARIOUS 000-041-707
3 1 ASSEMBLY, 70 GALLON URT - CTS 403 VARIOUS 610-003-749
2 1 ASSEMBLY, TANK - 50 GAL - HRI FLEX KIT VARIOUS 000-163-751
1 1 ASSEMBLY, CONSOLE - CTS 403 FLEX VARIOUS 610-050-749
D
C
B
A
A
B
C
D
1
2
3
4 5
6
7
8
8
7
6
5
4
3
2
1
E
F
E
F
MACHINE
FINISH
125
SCALE: 1:6
SHEET 1 OF 2
PROPRIETARY INFORMATION
11015 47th Avenue West,
Mukilteo, Washington 98275
D
SIZE
BREAK ALL SHARP EDGES 0.005-.015
UNLESS OTHERWISE NOTED
DIMENSIONS ARE IN INCHES
PART NUMBER
WEIGHT:
APPLICATION
NEXT ASSY USED ON
750-010-749-10
REV
PACKAGE, CTS 403 FLEX w/ 50 HRI TANK
B
PRJ000245
CTS 403 FLEX - - -
- - - - - -
- - -- - -
- - - - - -
- - - - - -
M.B.B.
M.B.B.
L.O.L.
DRAWN
CHECKED
APPVD
01/15/2020
01/15/2020
01/15/2020
TOLERANCES
.X= .1
.XX= .03
.XXX= .010
ANGULAR = 2°
CODE:
815.88

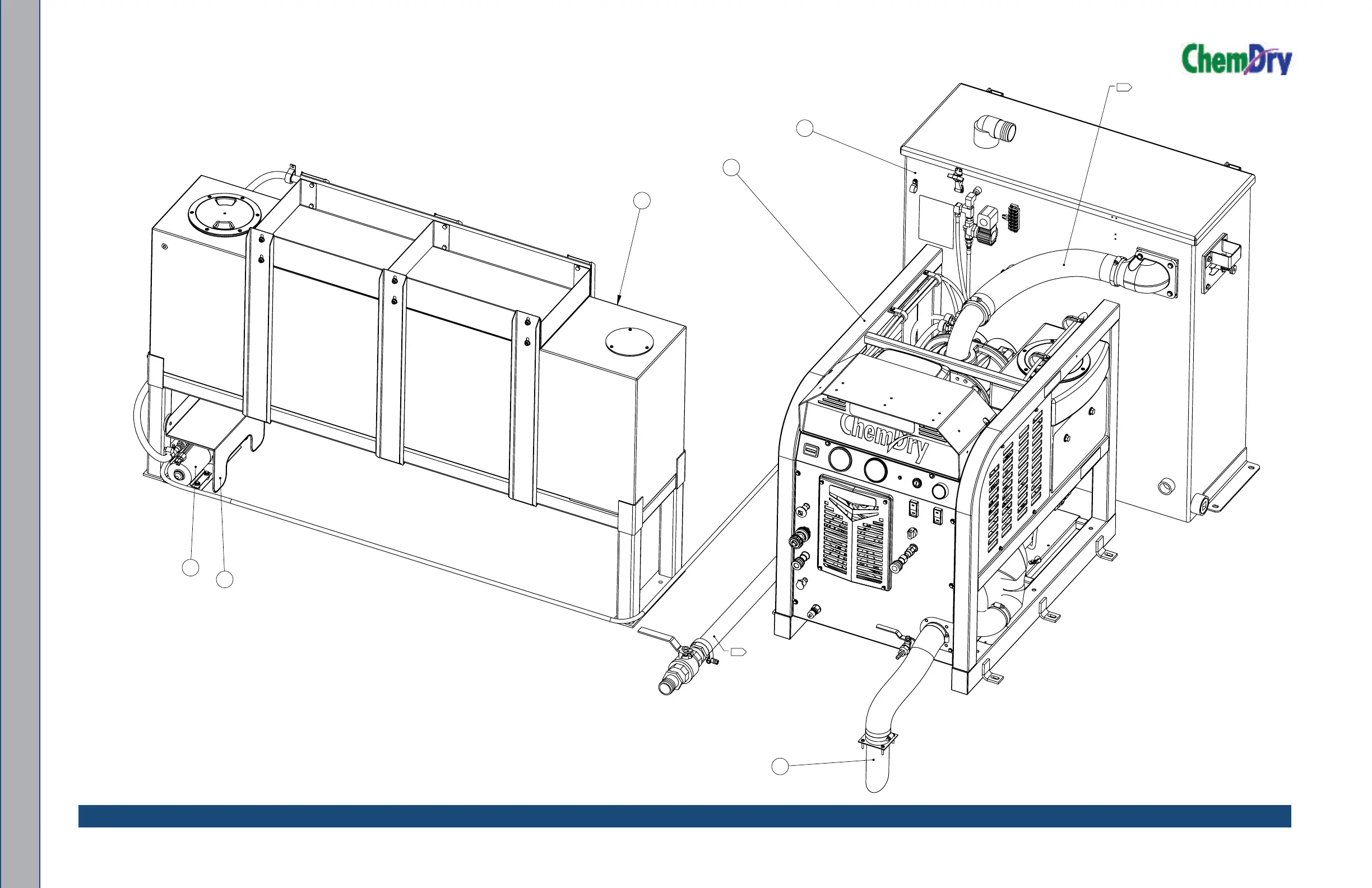

Figure 8-4. Machine Assembly with 50 Gallon Tank - View 1 of 2
750-010-749-10 Rev. B
DUMP HOSE HOOK UP KIT
(PART OF 000-078-614)
