8-7: Assemblies and Parts Lists

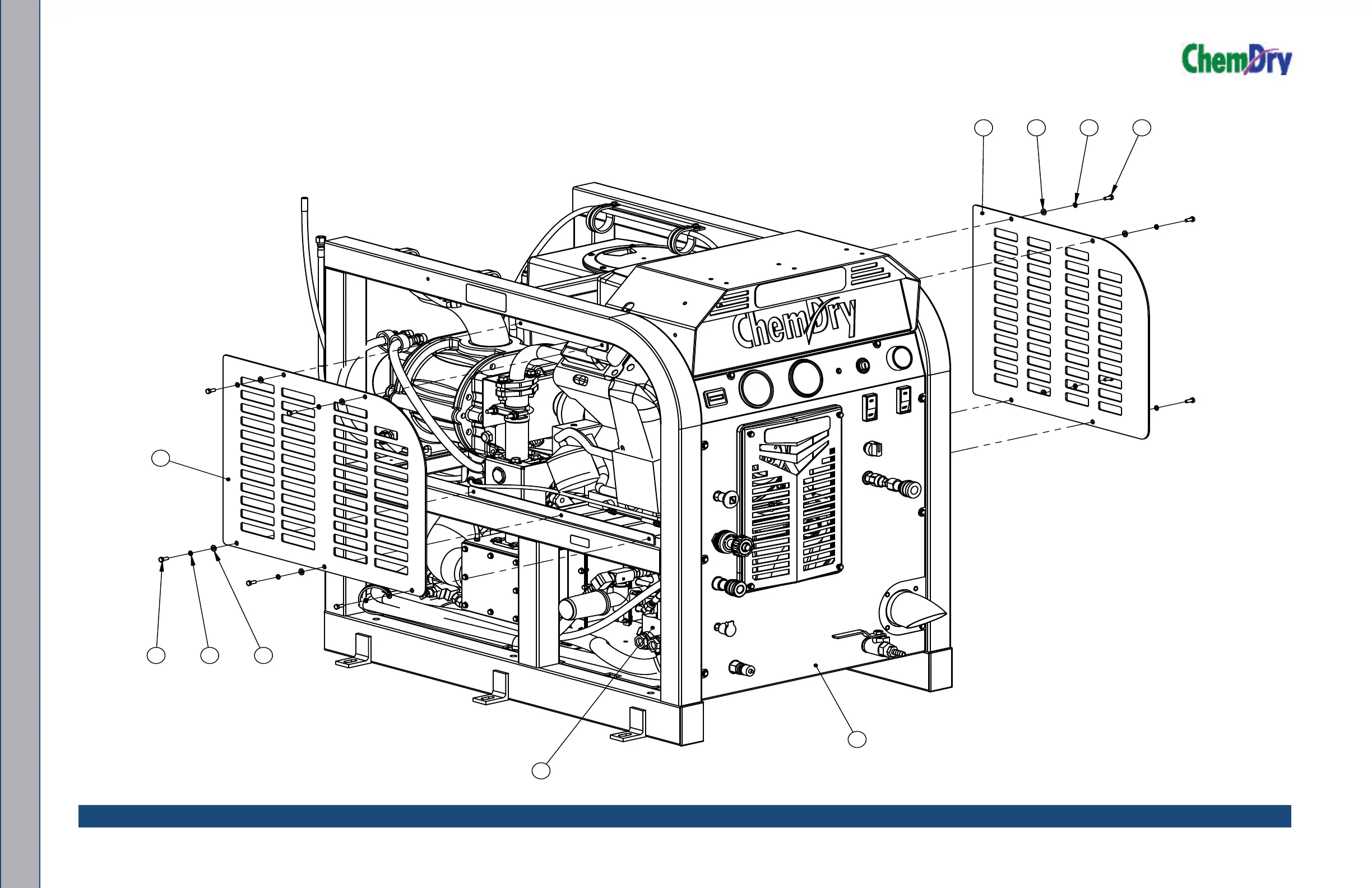

Figure 8-6. Console Assembly - View 1 of 6
610-050-749 Rev. C
CODE:
D
C
B
A
A
B
C
D
1
2
3
45
6
7
8
8
7
6
5
4
3 2 1
E
F
E
F
2°
FINISH
125
SCALE: 1:4
SHEET 1 OF 3
PROPRIETARY INFORMATION
MACHINE
Mukilteo, Washington 98275
D
SIZE
BREAK ALL SHARP EDGES 0.005-.015
11015 47th Avenue West,
DIMENSIONS ARE IN INCHES
PART NUMBER
WEIGHT:
APPLICATION
NEXT ASSY USED ON
610-050-749
REV
ASSEMBLY, CONSOLE - CTS 403 FLEX
C
PRJ000245
CTS 403 FLEX 50
750-010-749-10
750-010-758-10
CTS 403 FLEX 35/15
- - -- - -
- - - - - -
- - - - - -
M.B.B.
M.B.B.
L.O.L.
DRAWN
CHECKED
APPVD
01/15/2020
01/22/2020
01/22/2020
UNLESS OTHERWISE NOTED
TOLERANCES
.X=
.1
.XX=
.03
.XXX=
.010
ANGULAR =
568.21
NOTES.
1. REFERENCE DRAWINGS:
000-179-854 WIRING DIAGRAM
000-179-855 ELECTICAL SCHEMATIC
000-179-856 FLOW DIAGRAM
LTR REVISION DESCRIPTION CODE DATE BY CHKD APPVD
B 610-013-728 WAS 610-013-747
-
1/17/2020 L.O.L. M.B.B. M.B.B.
C 610-013-749 WAS 610-013-728
-
1/22/2020 L.O.L. M.B.B. M.B.B.
ITEM NO. QTY. DESCRIPTION MATERIAL
PART NO.
39 9 WASHER, #10 LOCK S. STEEL 000-174-014
38 9 WASHER, #10 FLAT S. STEEL 000-174-001
37 9 SCREW, #10-24UNC x 0.50" LG. HEX HEAD S. STEEL 000-143-126
36 2
RIVET, AB4-3A ALUMINUM POP 1/8" x 1/4" LG. (GRIP RANGE 0.126"-
0.187")
ALUMINUM 000-140-001
35 1 PLATE, MACHINE SERIAL I.D. 1100-H14 000-105-012
34 1 HOSE, 5/32" I.D. VACUUM X 82" LG. (BLOWER TO VAC GAUGE) RUBBER 000-068-977
33 1 HOSE, 5/32" I.D. VACUUM X 52" LG. (BLOWER TO LUBE PORT) RUBBER 000-068-978
32 1 HOSE, 5/32" I.D. VACUUM X 36" LG. (SOL INLET TO ENGINE TEE) RUBBER 000-068-347
31 1 HOSE, 5/32" I.D. VACUUM X 16" LG. (SOL VAVLE TO AIR CYLINDER) RUBBER 000-068-1009
30 1 HOSE, 5/32" I.D. VACUUM X 14" LG. (SOL VAVLE TO AIR CYLINDER) RUBBER 000-068-348
29 1 HOSE, 3/4" I.D. RUBBER x 56" LG. (PUMP TO WB) RUBBER 000-068-1059
28 1 HOSE, 1/8" HI-TEMP SILICONE X 40" LG. BLACK VACUUM SILICONE 000-068-1133
27 1
HOSE, 1/4" I.D. RUBBER X 60" LG. (POP OFF VALVE TO THERMO
VALVE TEE) & (THERMO VALVE TEE TO REC TANK)
RUBBER 000-068-997
26 1 HOSE, 1/2" I.D. RUBBER x 69" LG. (FRESH WATER IN TO WB) RUBBER 000-068-969
25 1 HOSE, 1/2" I.D. RUBBER x 56" LG. (PUMP TO WB) RUBBER 000-068-968
24 1 HOSE, 1/2" I.D. RUBBER x 20" LG. (WB DRAIN) RUBBER 000-068-967
23 1 HOSE ASSEMBLY, 5/16" TEFLON X 18" LG. (HX TO SOL OUT) S. STEEL 000-068-724
22 1
HOSE ASSEMBLY, 3/16" TEFLON X 71" LG. (HX TO CHEMDRY SOL
OUT)
S. STEEL 000-068-760
21 1 HOSE ASSEMBLY, 3/16" TEFLON X 44" LG. (ORIFICE TO REC TANK) S. STEEL 000-068-627
20 1 HOSE ASSEMBLY, 3/16" TEFLON X 34" LG. (ORIFICE ASSY TO WB) S. STEEL 000-068-203
19 1 HOSE ASSEMBLY, 3/16" TEFLON X 24" LG. (HX TO ORIFICE ASSY) S. STEEL 000-068-888
18 1 HOSE ASSEMBLY, 3/16" TEFLON X 18.25" LG. (PUMP TO GAUGE) S. STEEL 000-068-518
17 1 HOSE ASSEMBLY, THROB 52" LG. VARIOUS 000-068-588
16 1 COVER, RIGHT SIDE - COATED
ASTM A1008
CS TYPE B
000-041-452
15 1 COVER, LEFT SIDE - COATED
ASTM A1008
CS TYPE B
000-041-451
14 6 CLAMP, SIZE #5 HOSE S. STEEL 000-033-005
13 2 CLAMP, SIZE #12 HOSE S. STEEL 000-033-029
12 1 BELT, 9430HD VARIOUS 000-010-124
11 1 ASSEMBLY, WATER BOX - CTS 403 FLEX VARIOUS 610-010-749
10 1 ASSEMBLY, TOP COVER - CTS 403 FLEX VARIOUS 610-022-749
9 1 ASSEMBLY, SILENCER VARIOUS 610-021-728
8 1 ASSEMBLY, PUMP - CTS 400 FLEX VARIOUS 610-007-747
7 1 ASSEMBLY, ORIFICE VARIOUS 610-021-729
6 1 ASSEMBLY, HEAT EXCHANGER - CTS 403 FLEX VARIOUS 610-005-749
5 1 ASSEMBLY, FRAME - CTS 403 FLEX VARIOUS 610-001-749
4 1 ASSEMBLY, EXHAUST - CTS 403 VARIOUS 610-013-749
3 1 ASSEMBLY, ENGINE - CTS 403 FLEX VARIOUS 610-004-749
2 1 ASSEMBLY, DASH - CTS 403 FLEX VARIOUS 610-018-749
1 1 ASSEMBLY, BLOWER - CTS 400 FLEX VARIOUS 610-002-747
C
16
2
4X
38
4X
39
4X
37
5X
38
5X
3937
5X
15
8
