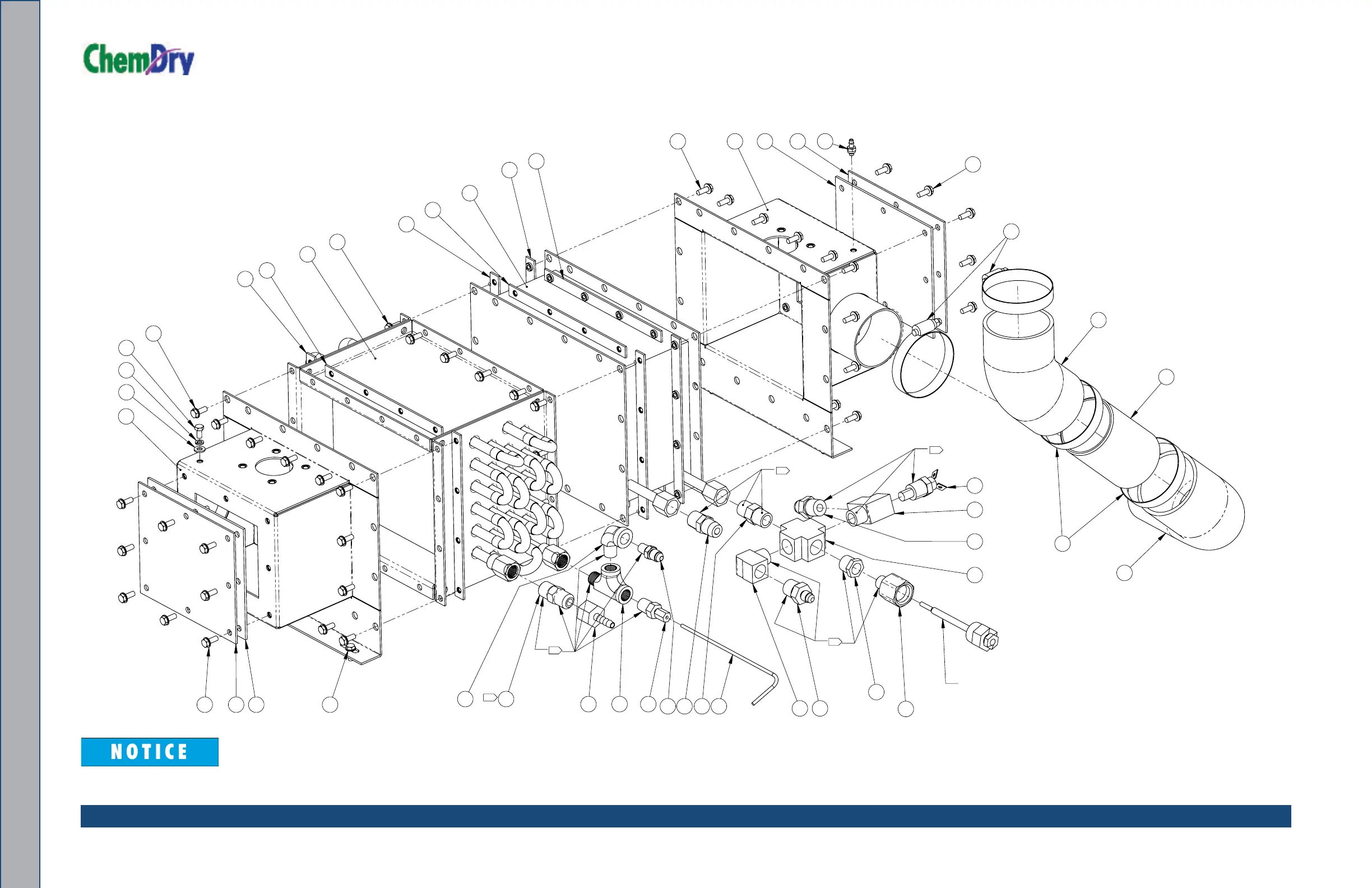

Figure 8-28. Heat Exchanger Assembly
610-005-749 Rev. G
See Figure 8-1 for adhesive/sealant information.
2
15
14
16
25
16X
25
16X
25
16X
27
30
21
22 28
12 24
10
6
1
23
829
11 32
PART OF
000-149-025
25
4X
7
2X
A3
A3
A3
A2
20
4
2X
5
2X
4
2X
5
2X
4
2X
5
2X
18
2
7
2X
31
17
13 1993
25
8X
33
34
26
13925
8X
B
B
B
B
B
B
NOTES:
1. SEE ENG-45975 OR ADHESIVE MATERIAL PRODUCTION LINE REFERENCE
CARD FOR SEALANT INFORMATION.
2. ARROW ON ITEM
32
MUST POINT TOWARDS HEAT EXCHANGER
2
ITEM NO. QTY. DESCRIPTION MATERIAL PART NO.
34 1 WASHER, #10 LOCK S. STEEL 000-174-014
33 1 WASHER, #10 FLAT S. STEEL 000-174-001
32 1 VALVE, 3/8" HI-PSI SS - CHECK S. STEEL 000-169-589
31 1 TUBE, 2.5" OD x 3.5" LG. AL 6061-T6 000-125-347
30 1 TEE, 3/8" NPT MALE STREET BRASS 000-052-023
29 1 TEE, 1/4" BRANCH SS S. STEEL 000-052-190
28 1 SENSOR, 6" - 90° RTD VARIOUS 000-149-566
27 1 SENSOR, 285F NASON- 3/8" NPT VARIOUS 000-149-027
26 1 SCREW, #10-32UNC x 3/8" LG. HEX HEAD S. STEEL 000-143-730
25 68 SCREW, #10-24UNC x 0.50" LG. HEX HEAD FLANGE Z/P STEEL 000-143-583
24 1 NIPPLE, 3/8" NPT x 1/4" M SAE BRASS 000-052-662
23 1 NIPPLE, 3/8" NPT HEX BRASS 000-052-074
22 1 NIPPLE, 3/8" MPT x 3/8" SAE FLARE BRASS 000-052-128
21 1 NIPPLE, 3/8" M JIC x 3/8" NPT BRASS 000-052-528
20 1 NIPPLE, 1/4" NPT x 1/4" JIC S. STEEL 000-052-526
19 1 INSERT, 27 MALE - 1/4"BARB X 10-32 UNF BRASS 000-052-961
18 1 INSERT, #F46 S/S S. STEEL 000-052-935
17 1 HOSE 2.5 X 90 ELBOW SILICONE SILICONE 000-068-1097
16 1 HOSE 2.5 X 45 ELBOW SILICONE MOD SILICONE 000-068-1098
15 1 HEAT EXCHANGER, 4 ROW 6X8 S/S S. STEEL 000-038-082
14 1 HEAT EXCHANGER, 4 ROW 6X8 VARIOUS 000-038-072
13 2 GASKET, HX ACCESS COVER
ASTM D2000
M1GE605
000-057-272
12 1 ELBOW, 3/8" NPT STREET BRASS 000-052-086
11 1 ELBOW, 1/4" NPT STREET S/S AISI 304/304L 000-052-691
10 1 CROSS, 3/8" FPT BRASS 000-052-113
9 2 COVER, HX ACCESS AISI 304 2B 000-041-930
8 1 COMPRESSION, FITTING 1/4" NPT x 1/8" TUBE - STOCK S. STEEL 000-052-931
7 4 CLAMP, SIZE #36 HOSE S. STEEL 000-033-011
6 1 BUSHING, 3/8" NPT x 1/4" FPT BRASS 000-052-061
5 6 BRACKET, HX PLENUM TOP BACKING 5052-H32 000-015-1302
4 6 BRACKET, HX PLENUM SIDE BACKING 5052-H32 000-015-1303
3 1 BOX, PLENUM CTS 403 - WELDMENT VARIOUS 000-013-135
2 1 BOX, OUTLET PLENUM - WELDED - CTS 403 AISI 304 2B 000-013-136
1 1 ADAPTER, 1/4" NPT x 1/2" FPT BRASS 000-052-738
