Assemblies and Parts Lists: 8-58

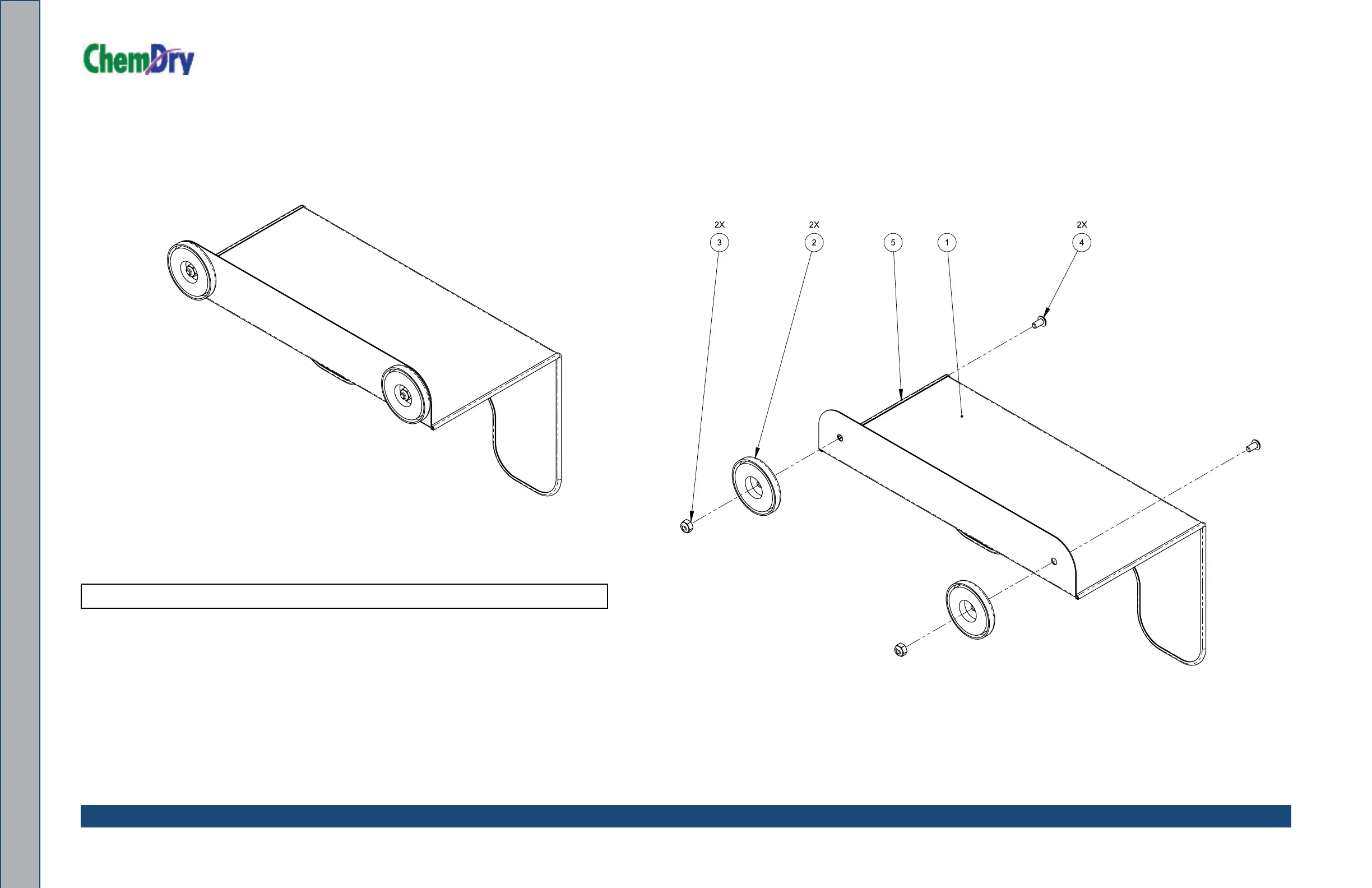

Figure 8-47. Pump Cover Assembly
000-041-707 Rev. B
Pump Cover Flex Assembly Parts List
Item Part Number Description Qty
1 000-041-706 Cover, Pump 1
2 000-089-003 Magnet 2
3 000-094-034 Nut, #10-24UNC Nylock 2
4 000-143-107 Screw, #10-24UNC X 0.375” Lg. Button Head Socket 2
5 000-131-027 Trimlok, 1/8” X 3/8” 2 ft
