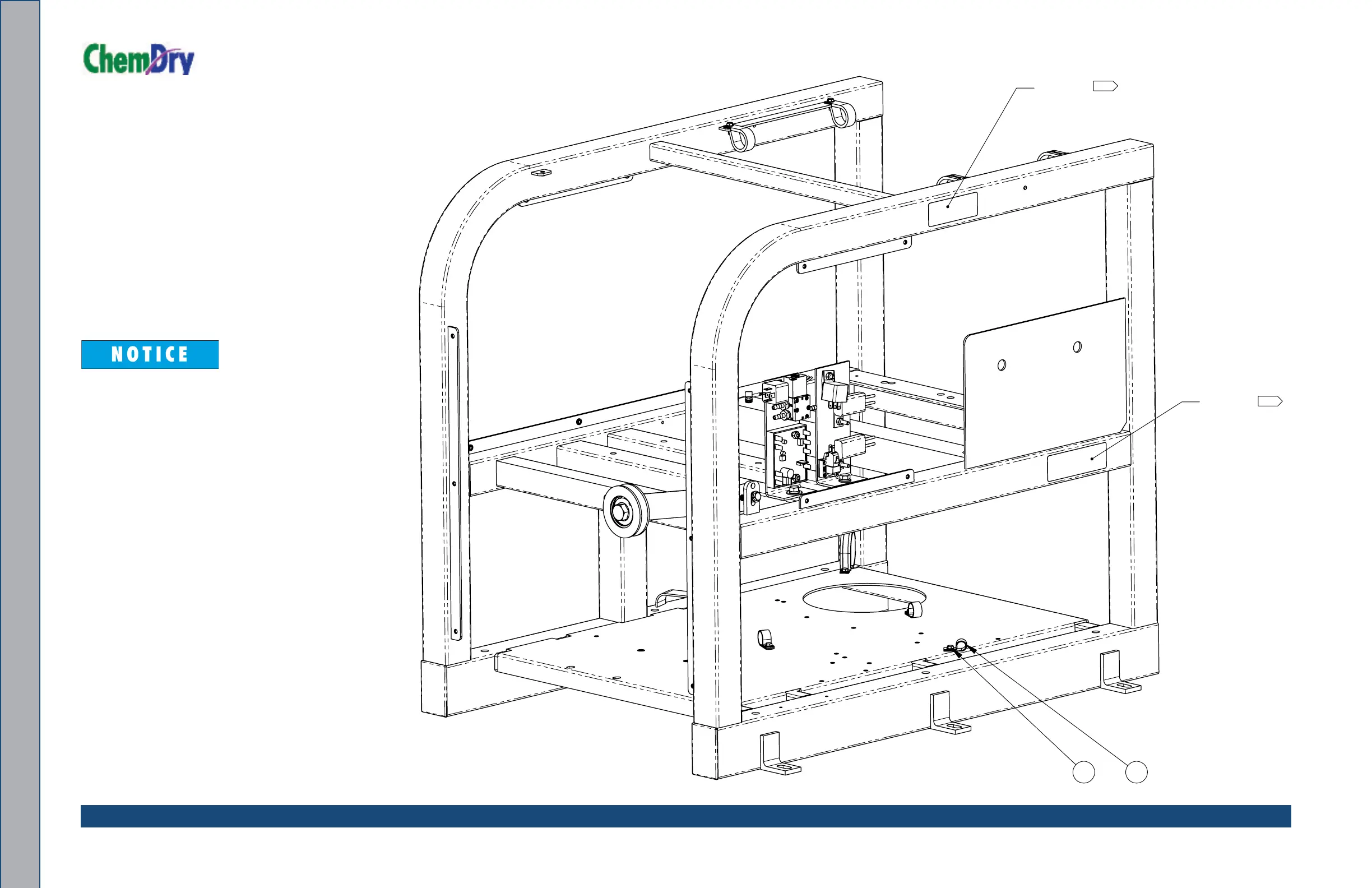

Figure 8-23. Frame Assembly - View 1 of 2
See Figure 8-1 for adhesive/sealant information.
INSTALL
PRIOR TO
ROUTING
HOSES
NOTES:
1.
ITEMS ARE PART OF LABEL SET P/N 000-081-555.
2. SEE ENG-45975 OR ADHESIVE MATERIAL PRODUCTION LINE
REFERENCE CARD FOR SEALANT INFORMATION.
1
B
B
LTR
REVISION DESCRIPTION
CODE
DATE
BY
CHKD
APPVD
A
RELEASE DRAWING.
NEW
12/19/2019
L.O.L.
M.B.B. M.B.B.
B
ADDED 033-128; 143-583 WAS QTY. 8; MOVED 2
CLAMPS.
-
01/14/2020
L.O.L.
M.B.B. M.B.B.
ITEM
NO.
QTY.
DESCRIPTION
MATERIAL
PART NO.
15 1
WASHER, #10 FLAT
S. STEEL
000-174-001
14 1
SCREW, #10-24UNC x 1.75" LG. HEX HEAD
S. STEEL
000-143-065
13 9
SCREW, #10-24UNC x 0.50" LG. HEX HEAD FLANGE Z/P
STEEL
000-143-583
12 1
FRAME, COMPLETE - COATED
STEEL
000-055-195
11 1
CLAMP, 3/8" NYLON HOSE
NYLON
000-033-128
10 2
CLAMP, 3/4 ID, CUSHION
STEEL
000-033-134
91
CLAMP, 2" CUSHION LOOP
S. STEEL
000-033-067
81
CLAMP, 1/2" WIDE X 1/2" TUBE
VARIOUS
000-033-046
72
CLAMP, 1-3/4" CUSHION LOOP VARIOUS
000-033-050
62
CLAMP, 1" CUSHION LOOP
VARIOUS
000-033-057
52
CAP, 2" X 3" FRAME END
POLYETHYLENE
000-027-110
41
BRACKET, HOSE TIE DOWN
5052-H32
000-015-1304
31
ASSEMBLY, SOLENOID VALVE - CTS 400 FLEX
VARIOUS
610-026-747
21
ASSEMBLY, IDLER PULLEY
VARIOUS
610-021-009
11
ASSEMBLY, BACK PRESSURE SWITCH MOUNT - CTS 403
VARIOUS
610-021-749
D
C
B
A
A
B
C
D
1
2
3
4
5
6
7
8
8
7
6
5
4
3
2
1
E
F
E
F
MACHINE
FINISH
125
SCALE: 1:4
SHEET 1 OF 1
PROPRIETARY INFORMATION
11015 47th Avenue West,
Mukilteo, Washington 98275
D
SIZE
BREAK ALL SHARP EDGES 0.005-.015
UNLESS OTHERWISE NOTED
DIMENSIONS ARE IN INCHES
PART NUMBER
WEIGHT:
APPLICATION
NEXT ASSY
USED ON
610-001-749
REV
ASSEMBLY, FRAME - CTS 403 FLEX
B
PRJ000245
CTS 403 FLEX
610-050-749
- - - - - -
- - -- - -
- - - - - -
- - - - - -
M.B.B.
M.B.B.
L.O.L.
DRAWN
CHECKED
APPVD
12/16/2019
