Specifications
184 811390 Operator Manual DynaMAX 550P/560P/575P Waterjet Pump

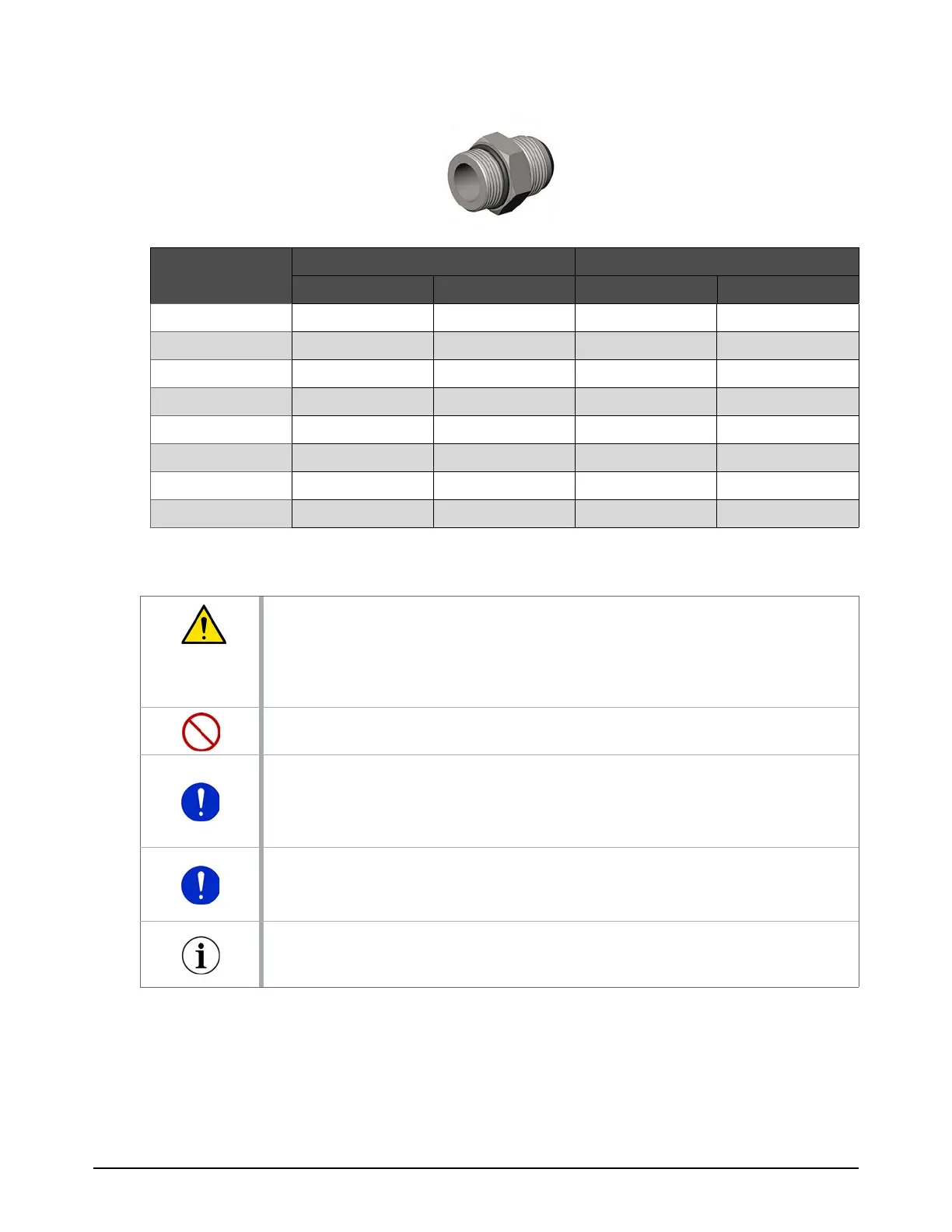

High-pressure water fittings
1/16-inch
dash size
Minimum Maximum
N∙m lbf∙ft N∙m lbf∙ft
-04 14 10 16 12
-06 24 18 27 20
-08 43 32 47 35
-10 62 46 68 50
-12 88 65 95 70
-16 125 92 136 100
-20 169 125 190 140
-24 203 150 224 165
WARNING
High-pressure water fittings are designed to make a tight seal. If a fitting is installed
incorrectly, it can fail.
To prevent causing damage or premature failure, use 2 wrenches when loosening or
tightening a high-pressure connection.
Do not use an adjustable wrench on high-pressure fittings.
Use only enough torque to make a sufficient seal.
Torque values can vary depending on thread condition. A sufficient seal can be made
at values much lower than the maximum values shown in the table.
If a fitting leaks after tightening it to the maximum torque value, disassemble the parts.
Repair or replace parts that show deterioration, corrosion, or damage.
Use a high-pressure antiseize lubricant such as Blue Goop or PURE Goop on
high-pressure water fittings.
