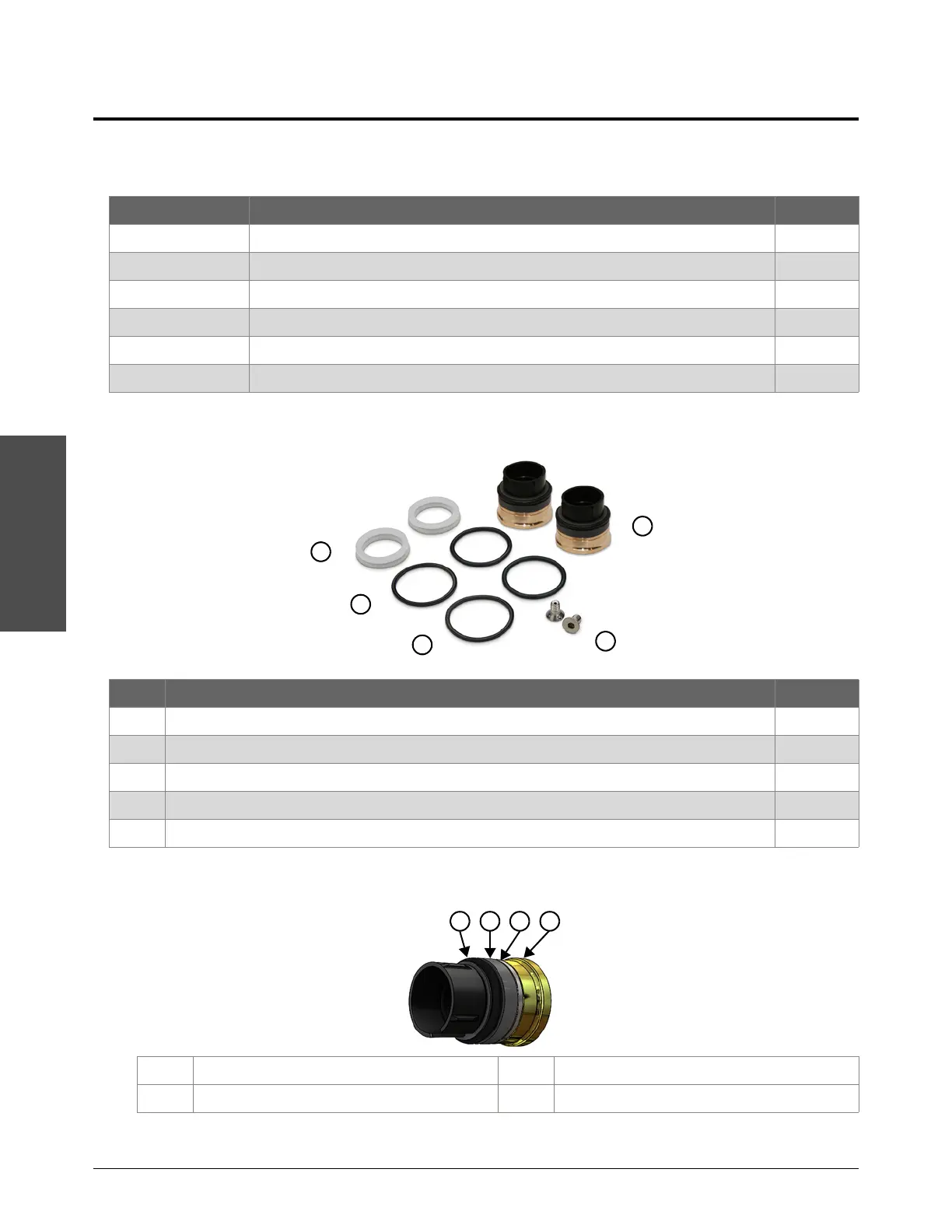

Parts lists

100 810770 Operator Manual Echion

Parts lists

Maintenance and repair kits

1-18769 Echion standard spare parts kit

1-18770 Echion high-pressure seal repair kit

Each high-pressure seal cartridge includes:

Part number Description Quantity

1-18770 Repair kit, high-pressure seal, Echion 2

1-18771 Repair kit, high-pressure poppet, Echion 1

1-18849 Repair kit, low-pressure poppet, Echion 1

1-17434 Repair kit, bleed-down valve 1

1-18772 Replacement kit, hydraulic fluid 1

1-11106 Filter cartridge, water, 1.0 micron, 10-inch 1

Description Quantity

1 Spring, energized seal, 7/8-inch 2

2 O-ring backup, seal housing, -122 2

3 O-ring, seal housing, -122 2

4 Seal cartridge, high-pressure 2

5 Poppet screw, low-pressure 2

1 High-pressure seal O-ring, greased, -119 3 High-pressure hoop

2 High-pressure seal 4 High-pressure seal backup, bronze

1 2 3 4
