Troubleshooting
Echion Operator Manual 810770 11 3

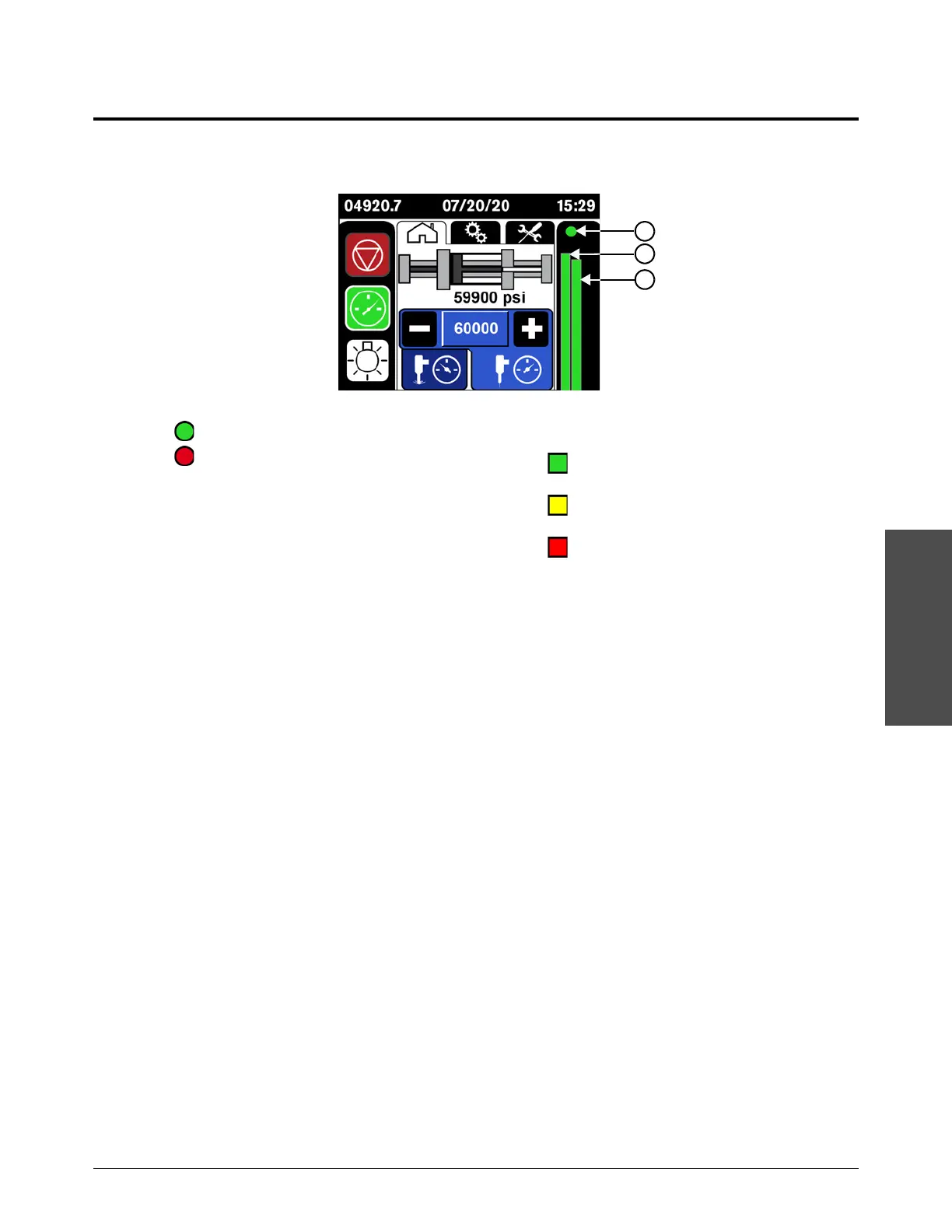

Primary operation screen
Intensifier stroke-rate bars and status indicator
During normal operation, the intensifier strokes smoothly to the left and to the right at the same
speed.
It is normal for the intensifier to stroke faster during the start sequence and when
changing from pierce pressure to cut pressure.
The stroke-rate bars show the speed of the piston and the plunger moving to each side of the
intensifier (if you are facing the front of the pump.)
The height of the bars in relation to each other show if the piston is stroking evenly from side to side
or if one side is stroking faster than the other (overstroking). This information is useful during
troubleshooting. Uneven bars can mean that poppet maintenance required.
If a bar is red, then an overstroke has caused an alarm condition on that side.
1 Intensifier status indicator
Enabled (green)
Not enabled (red)
2 Intensifier stroke rate to the left
3 Intensifier stroke rate to the right
The stroke rate is within the permitted
range (green).
The stroke rate is at the limit of the
permitted range (yellow).
The intensifier is overstroking (red).
