Parts lists
106 810770 Operator Manual Echion

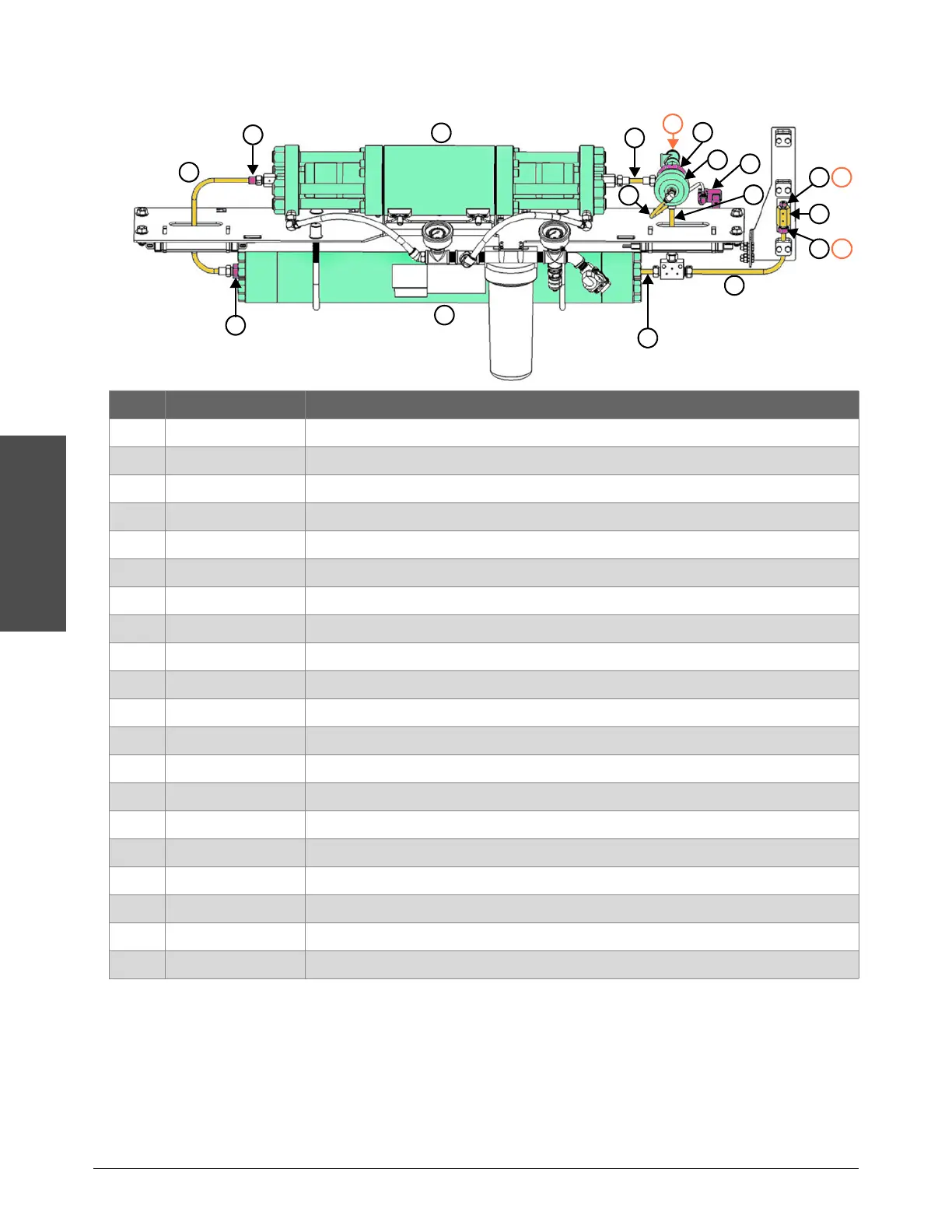

High-pressure water system
Part number Description
1 1-18314 Echion intensifier
2 1-14687 Sheathing end cover, high-pressure tubing, 3/8-inch
3 1-18445 Tube, high-pressure, intensifier left
4 1-12982 Inlet adapter, 3/8-inch male × 3/8-inch female
5 1-12280 Attenuator assembly, 1 liter
6 1-WJN6600375 Tube nipple, high-pressure, attenuator-to-tee
7 1-18694 Tube, high-pressure, L-shaped
8 1-13158-60-6 Gland nut, high-pressure, 3/8-inch
9 1-13157-60-6 Collar, high-pressure, 3/8-inch (not shown)
10 1-13160-60-4F6F Reducing coupling, high-pressure, 3/8-inch female × 1/4-inch female
11 1-13158-60-4 Gland nut, high-pressure, 1/4-inch
12 1-13157-60-4 Collar, high-pressure, 1/4-inch (not shown)
13 1-WJN6600725 Tube nipple, bleed-down valve-to-tee
14 1-13949 Air solenoid, bleed-down valve
15 1-18310 Bleed-down valve assembly, air-actuated
16 1-18311 Bleed-down valve body
17 1-17130 Plug, stainless steel NPT, 1/2-inch (not shown)
18 1-WJN6600500 Tube nipple, high-pressure, intensifier right
19 1-18784 Replacement kit, bleed-down valve air tube, 1/4-inch
— 1-12580 Protective sheathing, 3/8-inch (not shown)
1
3
4
5
1211
10
98
14
16
19
15
13
7
6
2
18
17
