Troubleshooting
5
134 810770 Operator Manual Echion
Troubleshooting
Controller errors
Input/output status

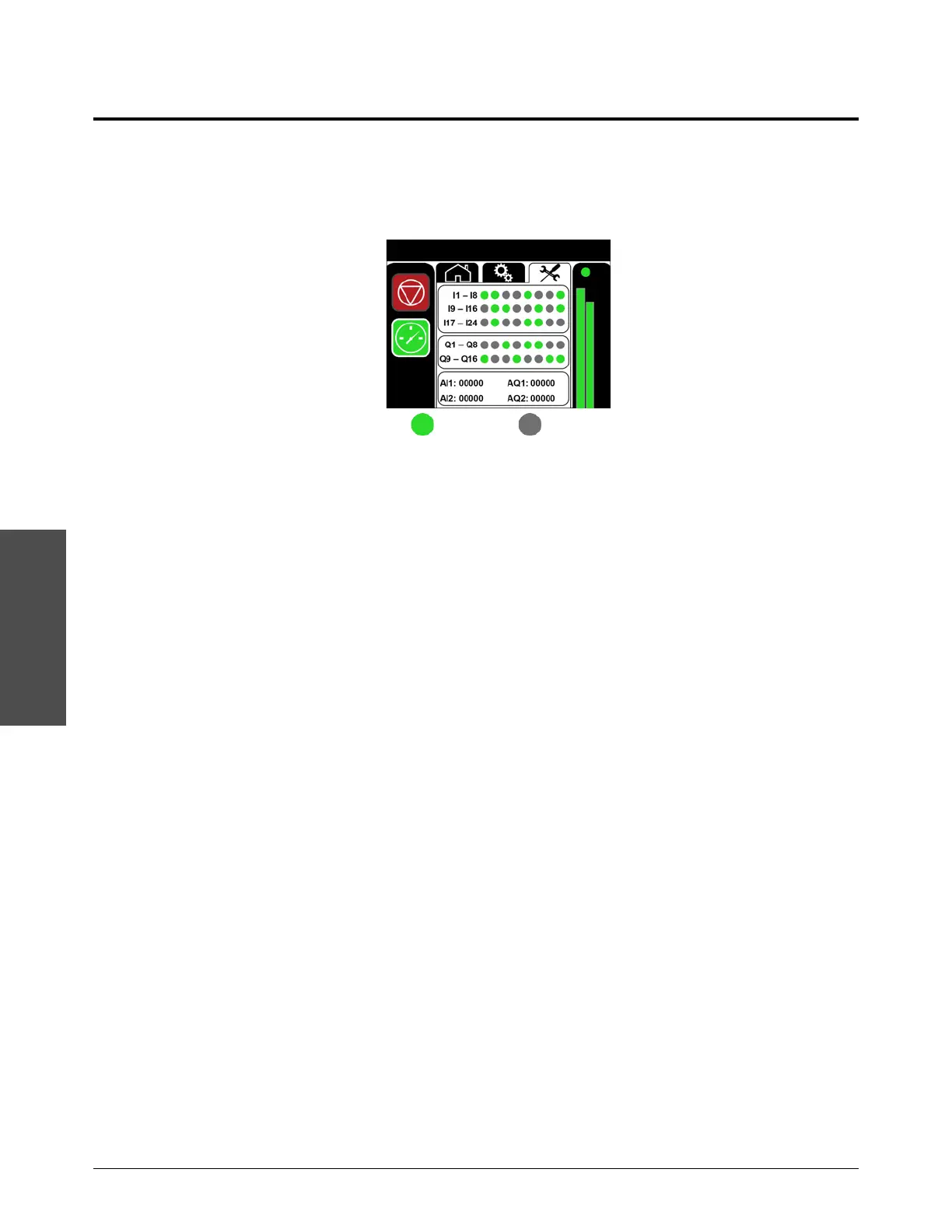

This screen shows the status of inputs to and outputs from the controller.
Status: = enabled = not enabled
This table describes the assigned inputs and outputs. These can be helpful for troubleshooting.
I1 Not used
l2 Not used
I3 Hydraulic fluid temperature is higher
than65°C (149°F)
I4 Hydraulic fluid temperature is higher
than45°C (113°F)
l5 Low inlet pressure switch
l6 Front intensifier left proximity switch
l7 Front intensifier right proximity switch
l8 Not used
l9 Not used
l10 Not used
l11 Not used
l12 Not used
l13 Not used
l14 Not used
l15 Controls on
I16 Remote mode on
l17 Remote pump on
l18 Remote pump off
l19 Not used
l20 Remote pierce-pressure on
l21 Primary motor fault
l22 Primary motor on
l23 Boost pump on
I24 Heat exchanger fan on
Q1 Low-pressure on
Q2 Proportional control output
Q3 Not used
Q4 Pump on
Q5 Fan motor on
Q6 Enable bleed-down valve
Q7 Front-left shift-valve solenoid
Q8 Front-right shift-valve solenoid
Q9 Not used
Q10 Not used
Q11 Not used
Q12 Primary motor on
Q13 Boost pump motor on
Q14 Remote fault light
Q15 Left frame light (red)
Q16 Right frame light (red)
AI1 Hydraulic pressure
AI2 Remote pressure control
AQ1 Not used
AQ2 Not used
