Hypertherm Echion User Manual

Installation
7
166 810770 Operator Manual Echion
Installation

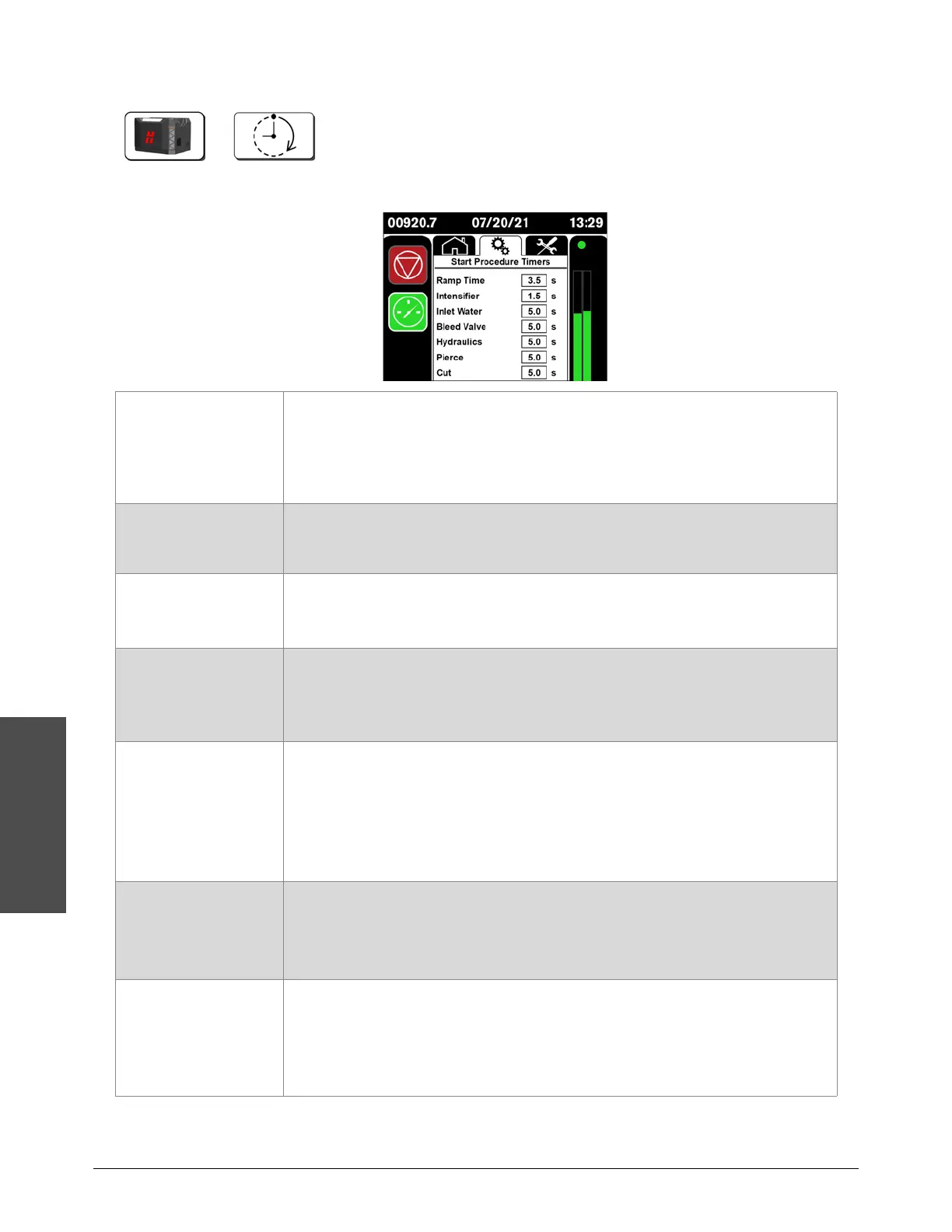

Start Procedure Timers
All time is in seconds. Refer to page 179 for information about the start procedure.
>
Ramp Time This is the time that the system takes to increase the high-pressure water pressure
from0 to the target water pressure.
Increase the value to slow the process.
The timer default is between3 seconds and8seconds, based on the pump
model.
Intensifier The system goes to the next stage when the time between intensifier strokes is
longer than this value.
The timer default is1.5 seconds.
Inlet Water Stage 1
After the system gets to the target water pressure, the Inlet Water timer starts.
The timer default is5 seconds.
Bleed Valve Stage 2
The intensifier strokes and has this much time to push air that is in the system out
through the open bleed-down valve.
The timer default is5 seconds.
Hydraulics Stage 3
After the bleed-down valve closes, the system has this much time to get to the
minimum hydraulic pressure.
The timer default is5 seconds.
The hydraulic pressure setpoint default is17bar(250psi).
Refer to Hydraulic fluid on page 136 in the Specifications section.
Pierce Stage 4
The system has this much time to get to the pierce-pressure setpoint.
The timer default is5 seconds.
Refer to the Water table for your pump model in the Specifications section.
Cut Stage 5
If the pump is in cut-pressure mode, the system has this much time to get to the
cut-pressure setpoint.
The timer default is5 seconds.
Refer to the Water table for your pump model in the Specifications section.
