Hypertherm Powermax65 SYNC Reference Guide

Serial Communication Programmer Reference Guide
66 810400 Reference Guide Powermax65/85/105 SYNC

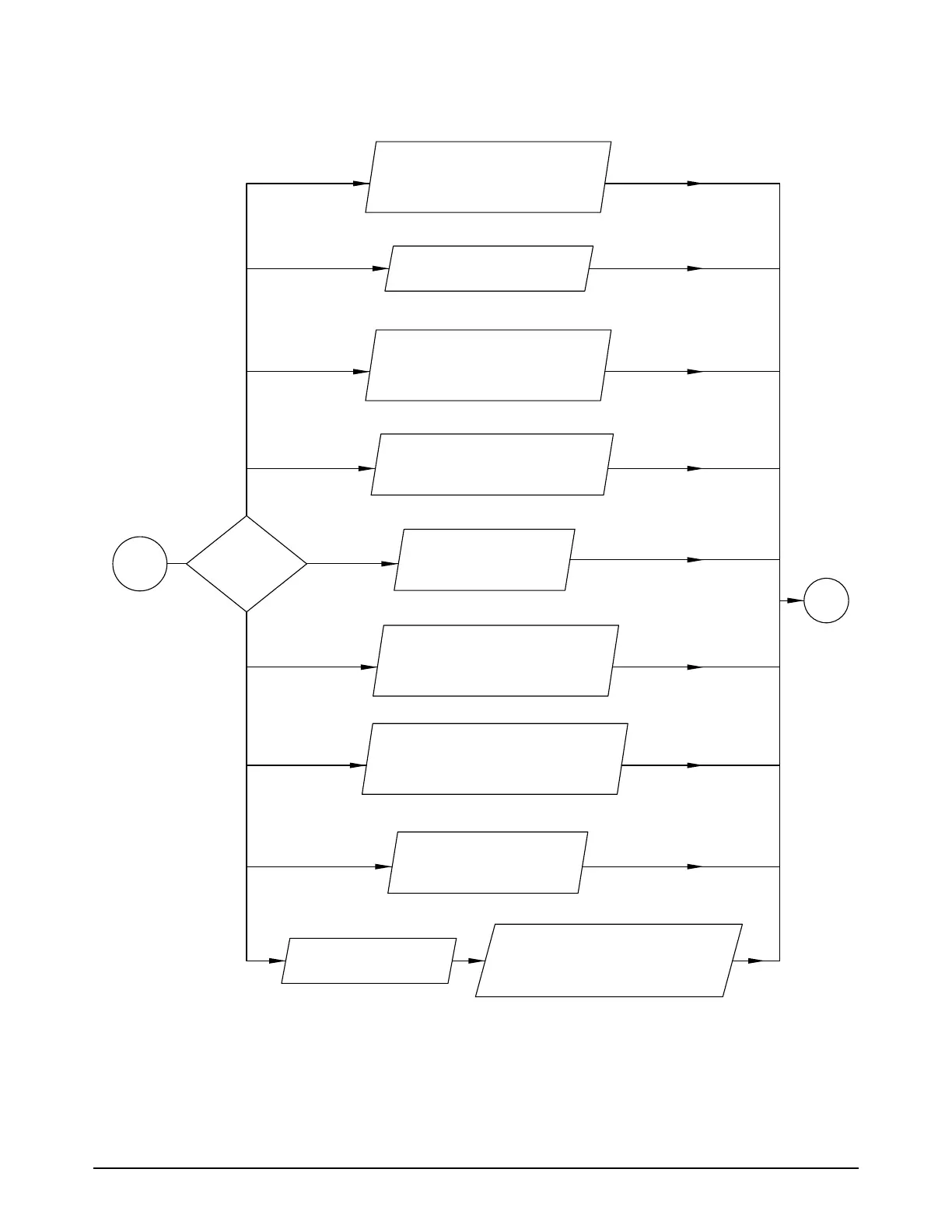

Figure 6 – CNC requests SYNC plasma power supply and cartridge data
READ LATEST FAULT.
REGISTER READ 0x301A
READ CARTRIDGE
NOMINAL AMPS.
REGISTER READ 0x303C
READ INSTANTANEOUS
SYSTEM PRESSURE.
REGISTER READ 0x3019
REQUEST
DATA
READ POWER SUPPLY CUMULATIVE
COUNTS: STARTS, PILOT TIME,
TRANSFERS, TRANSFER TIME.
REGISTER READ 0x03028-0x0302F
READ TORCH TYPE/LENGTH ID,
CARTRIDGE MIN/MAX AMPS AND
PRESSURE.
REGISTER READ 0x3000-0x3005
READ CARTRIDGE CUMULATIVE
STARTS, PILOT TIME,
TRANSFERS, TRANSFER TIME.
REGISTER READ 0x03040-0x03043
READ CARTRIDGE FAULT LOG OF
UP TO 4 FAULTS.
REGISTER READ 0x03044-0x03047
READ POWER SUPPLY ACTIVE
SETTINGS: MODE, CURRENT,
PRESSURE.
REGISTER READ 0x03010-0x03012
ENTER
EXIT
SYNC
READ CARTRIDGE NAME.
REGISTER READ 0x3048-304D
CNC LOGS FAULTS FOR FUTURE
MAINTENANCE, TROUBLESHOOTING,
SHOP AIR CAPACITY OR OPERATOR
TRENDS, ETC.
