Chapter 4 Field Network
POWER CON
PCON-CB/LC
158

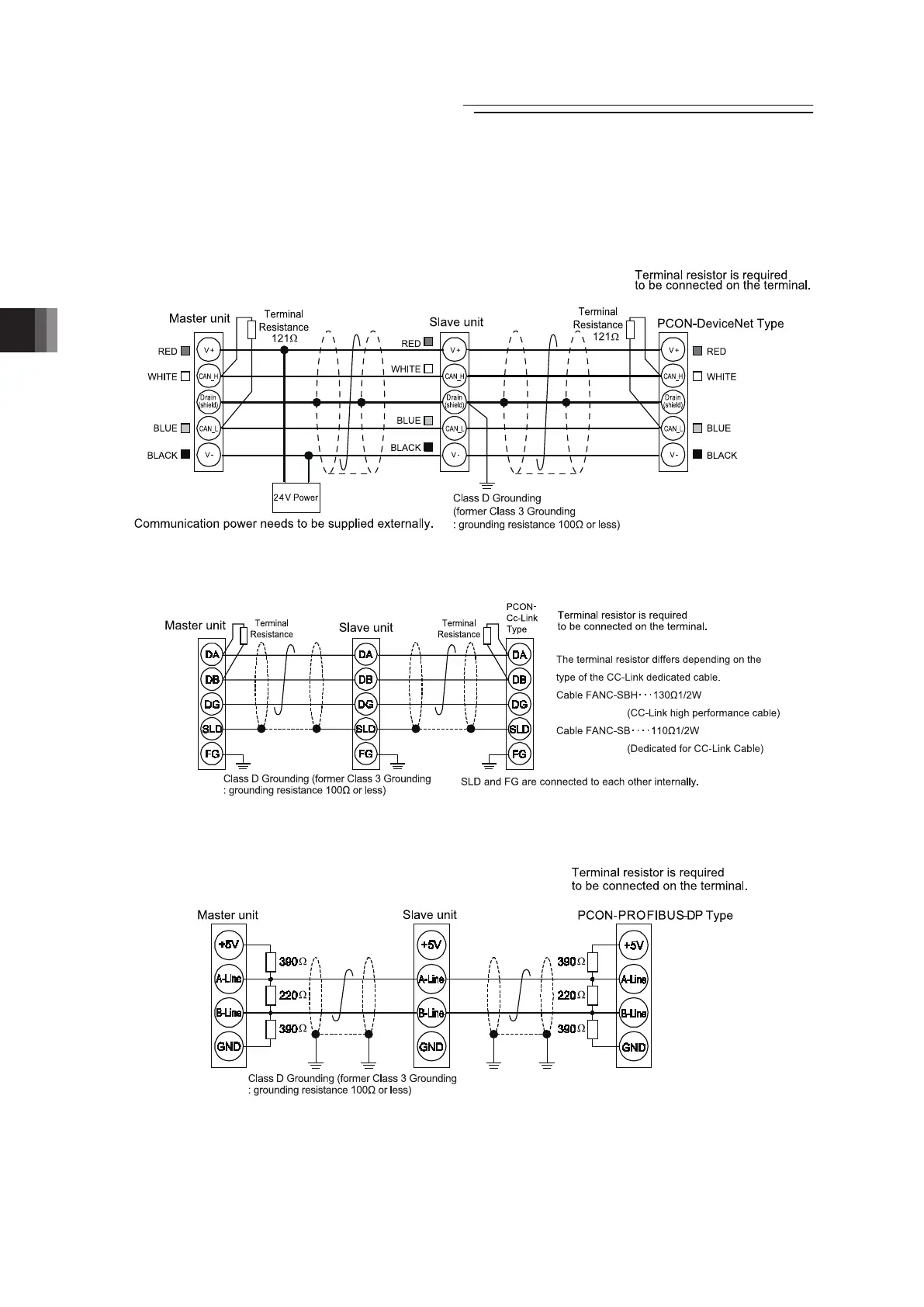

[Reference] Wiring Layout of Fieldbus (for Field
bus type)
Follow the instruction manual of the mast
er unit and PLC consists of each fieldbus for the det
ails of
how to perform connections.
1) DeviceNet T
ype
2) CC-Link T
ype
3) PROFIBUS-DP T
ype
171
173
