Chapter 1 Specications Check
POWER CON
PCON-CB/LC
21

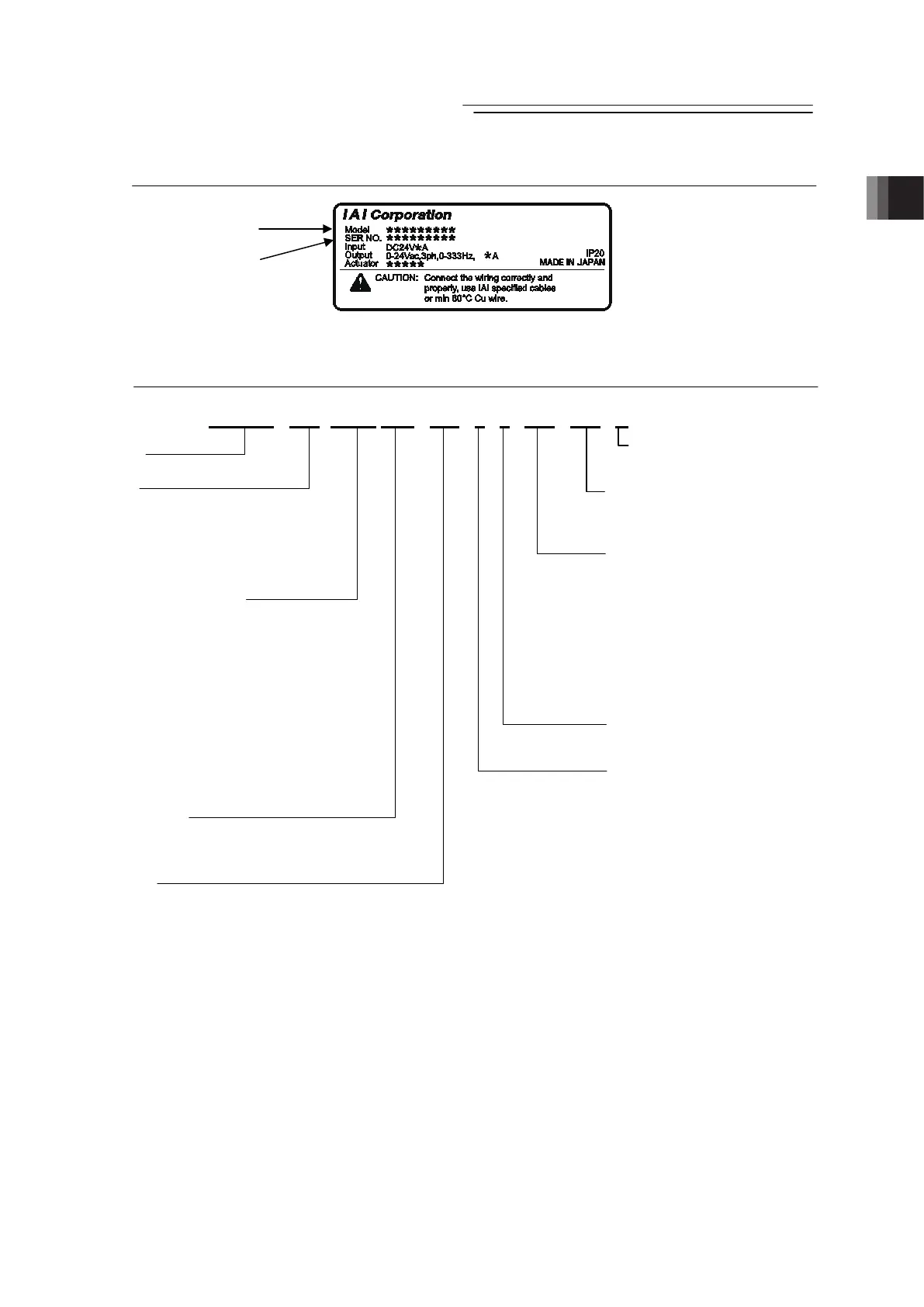

1.1.4 How to Read the Model Plate
1.1.5 How to Read the Model
P C O N
- C B - 2 0 P WAI - N P - 2 - 0 - A B - D N– **
<Series>
<Type>
CB : Standard Type
CGB : Safety Category Compliant Type
CFB : High Thrust Actuator Connected Type
CGFB : High Thrust Actuator Connected
Safety Category Compliant Type
<Detail of Connected Axis>
[Motor Type]
20P : 20 pulse motor
20SP : 20 pulse motor
28P : 28 pulse motor
28SP : 28 pulse motor
35P : 35 pulse motor
42P : 42 pulse motor
42SP : 42 pulse motor
56P : 56 pulse motor
56SP : 56 high thrust pulse motor
60P : 60 high thrust pulse motor
86P : 86 high thrust pulse motor
[Encoder Type]
WAI : Incremental/Battery-less Absolute Shared
SA : Simple Absolute
<I/O Type>
NP : NPN Specification (Sync. Type) (Standard)
PLN : Pulse Train NPN Specification
PN : PNP Specification (Source Type)
PLP : Pulse Train PNP Specification
CC : CC-Link Connection Type
DV : DeviceNet Connection Type
PR : PROFIBUS-DP Connection Type
CN : CompoNet Connection Type
ML : MECHATROLINK
-
/ Connection Type
ML3 : MECHATROLINK
-
Connection Type
EC : EtherCAT Connection Type
EP : EtherNet/IP Connection Type
PRT : PROFINET
IO Connection Type
<Identification for IAI use only>
*
There is no identification in some cases
<Type of Installation>
(Not Specified) : Screw Attachment Type
DN : DIN Rail Mounting Type
<Applicable to Simplified Absolute Unit>
AB : Simple Absolute Type
(With the Absolute Battery)
ABU : Simple Absolute Type
(With the Absolute Battery
Unit (SEP-ABU))
ABUN : Simple Absolute Type
(With no Absolute Battery)
(Not Specified): Incremental/Battery-less
Absolute
<Power-supply Voltage>
0 : 24V DC
<I/O Cable Length>
0 : Equipped with no cable
2 : 2m (Standard)
3 : 3m
5 : 5m
Model
Serial numbe
r
