1.5 Options

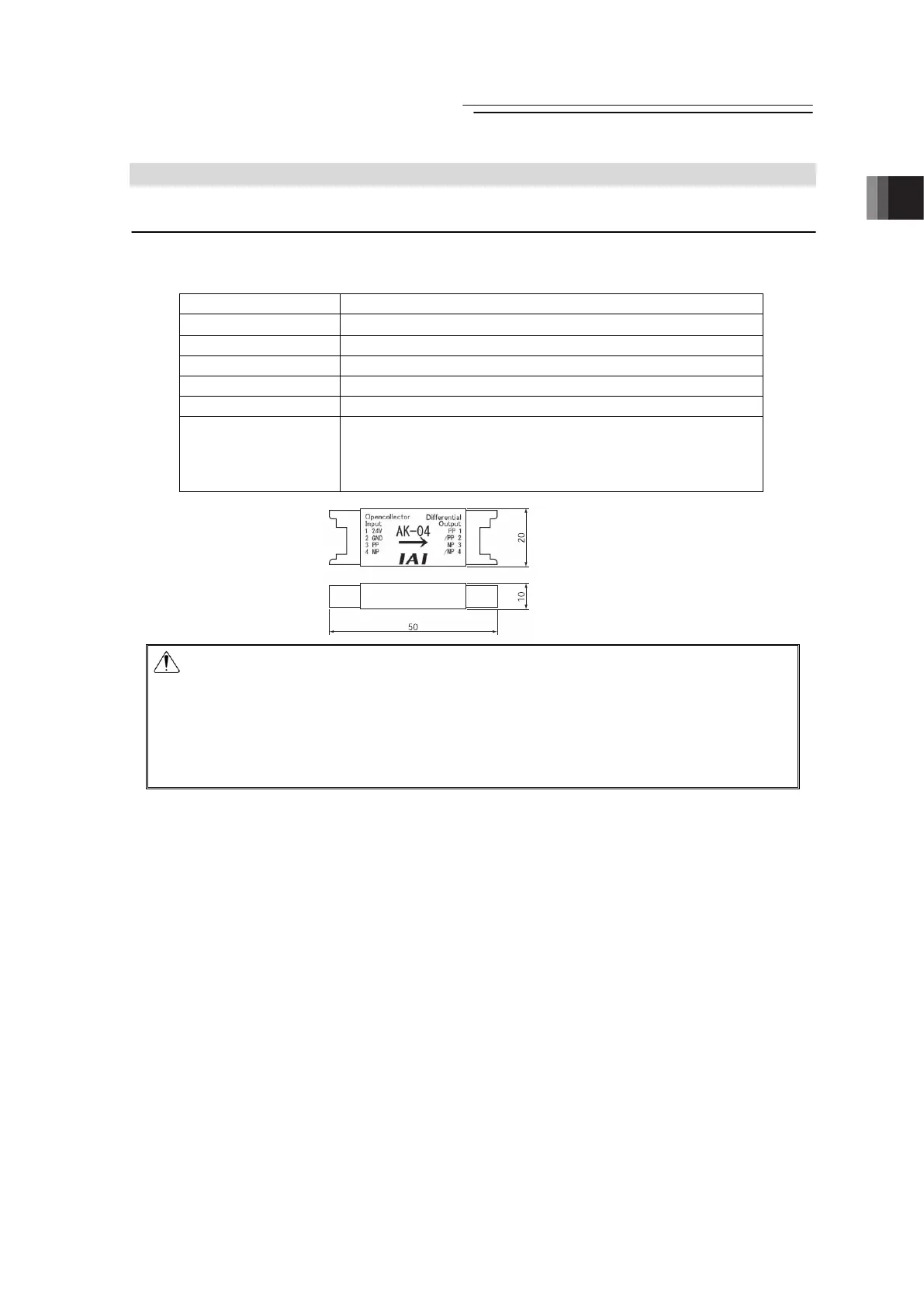

1.5.1 Pulse converter : AK-04
The pulse converter converts command pulses in the open collector mode to those in the
differential mode.
Use this converter if the host controller sends output pulses in the open collector mode.
Item Specification
Input Power Supply
24V DC ±10% (MAX. 50mA)
Input Pulse O/C (Collector current MAX. 12mA)
Input Frequency 200kpps or less
Output Pulse Differential output equivalent to 26C31 (MAX. 10mA)
Mass 10g or less (excluding cable connector)
Accessories 37104-3122-000FL (e-CON Connector) 2 Units
Cover Color : YW
Applicable wire AWG No.24 to 26 (Less than 0.14 to
0.3mm
2
, finished O.D. φ1.0 to 1.2mm)
Caution
1) Use the pulse converter in the surrounding temperature range between 0°C and 40°C.
2) The temperature increase of about 30°C occurs during operation. Accordingly, neither
install several pulse converters in close contact nor install them within a duct. Do not
install the pulse converter near other heating devices.
3) If more than one pulse converter are installed, set a pulse converter apart from another by
10mm or more.
