Chapter 10
Appendix
POWER CON
PCON-CB/LC
238
10.1.6
Communications Cable
1)
Controller Link Cable (CB-RCB-CTL002)
10.1.7

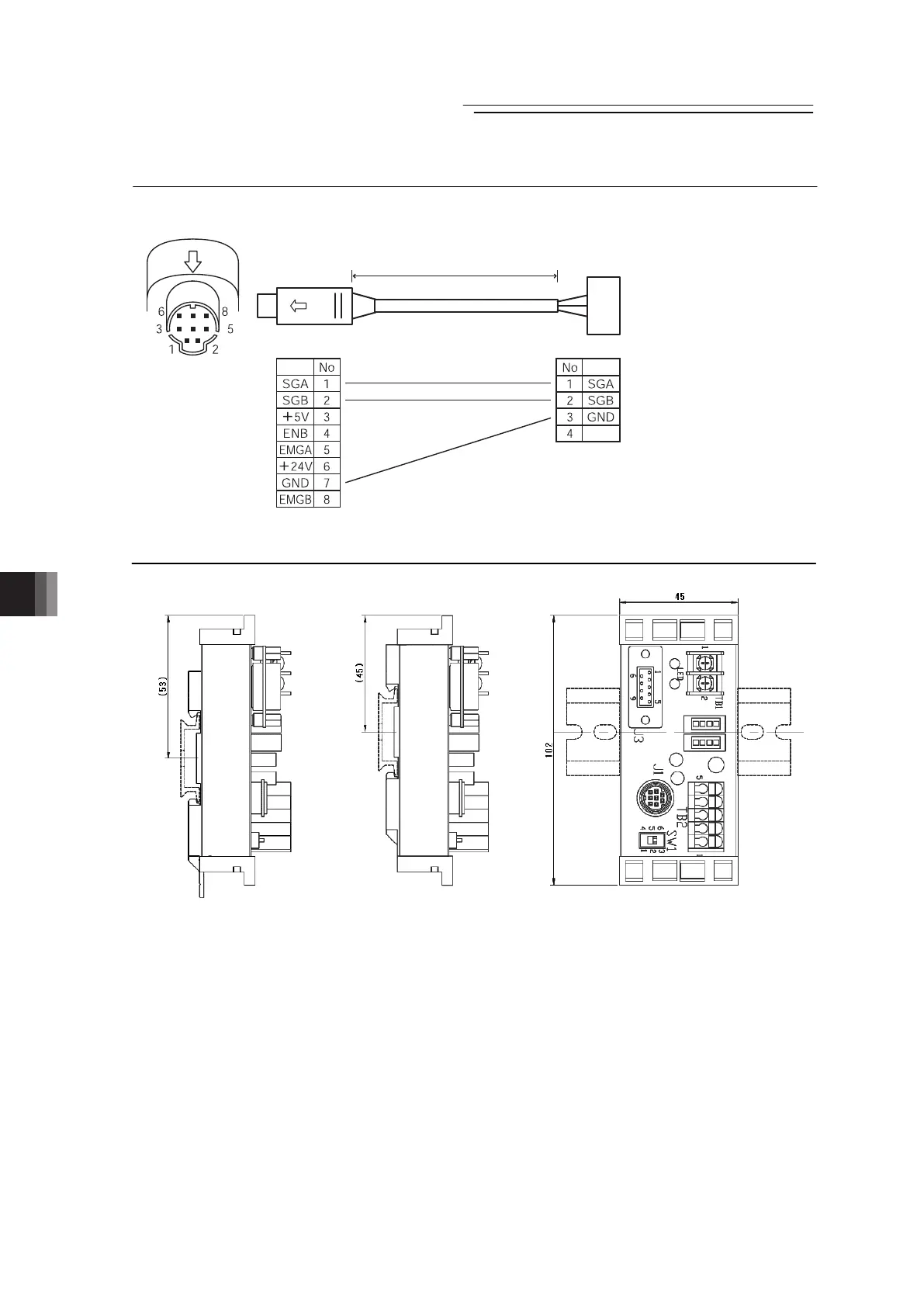

External Dimension
(Leg Element Bottom Side)
(Leg Element T
op Side)
Controller Side
Mini DIN Connector
YW
OR
BL
200mm
e-CON Connector
3-1473562-4
(Housing Color : OR)
Signal
Signal
251
253
