Chapter 10 Appendix
POWER CON
PCON-CB/LC
239
10.2 Conformity to Safety Category
In this section shows an example of a circuit using the dedicated teaching pendant. However, it
is not possible for us to check the conformity of our product to the condition of your system.
Therefore, it is necessary that the user construct the circuit considering the condition of use and
the categories to be applied.

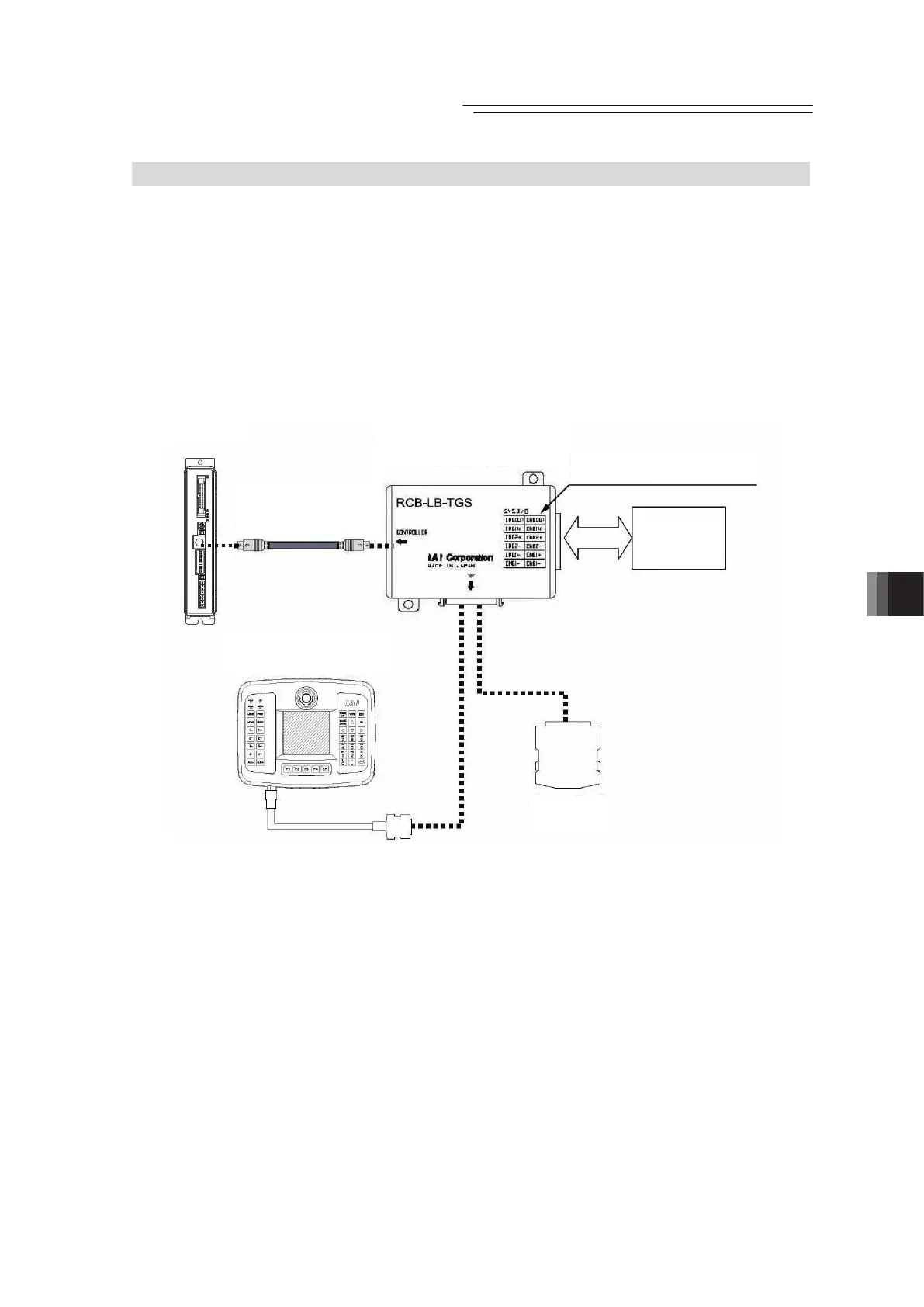

[1] System Configuration
In the case it is necessary to construct a system complying with Safe Category (ISO12100-1),
use the following touch panel teaching (Model: TB-02D, TB-01D (R) or CON-PGAS).
Also, TP adapter (Model : RCB-LB-TGS) is required.
The system can conform to up to safety category B to 4 (ISO12100-1) by changing connections
of system I/O connectors.
Touch Panel Teaching
TB-02D, TB-01D (R) or
CON-PGAS
Adapter for Teaching Box
RCB-LB-TGS
Controller
Dummy Plug
DP-4S
System I/O Connector
(Front of (ENB*) is Lower side,
back(EMG*) is Upper side)
Controller-Adapter
Connecting Cable
Model: CB-CON-LB□□□
Safety Circuit
(Relay, Safety relay)
