Chapter 10
Appendix
POWER CON
PCON-CB/LC
246
3)

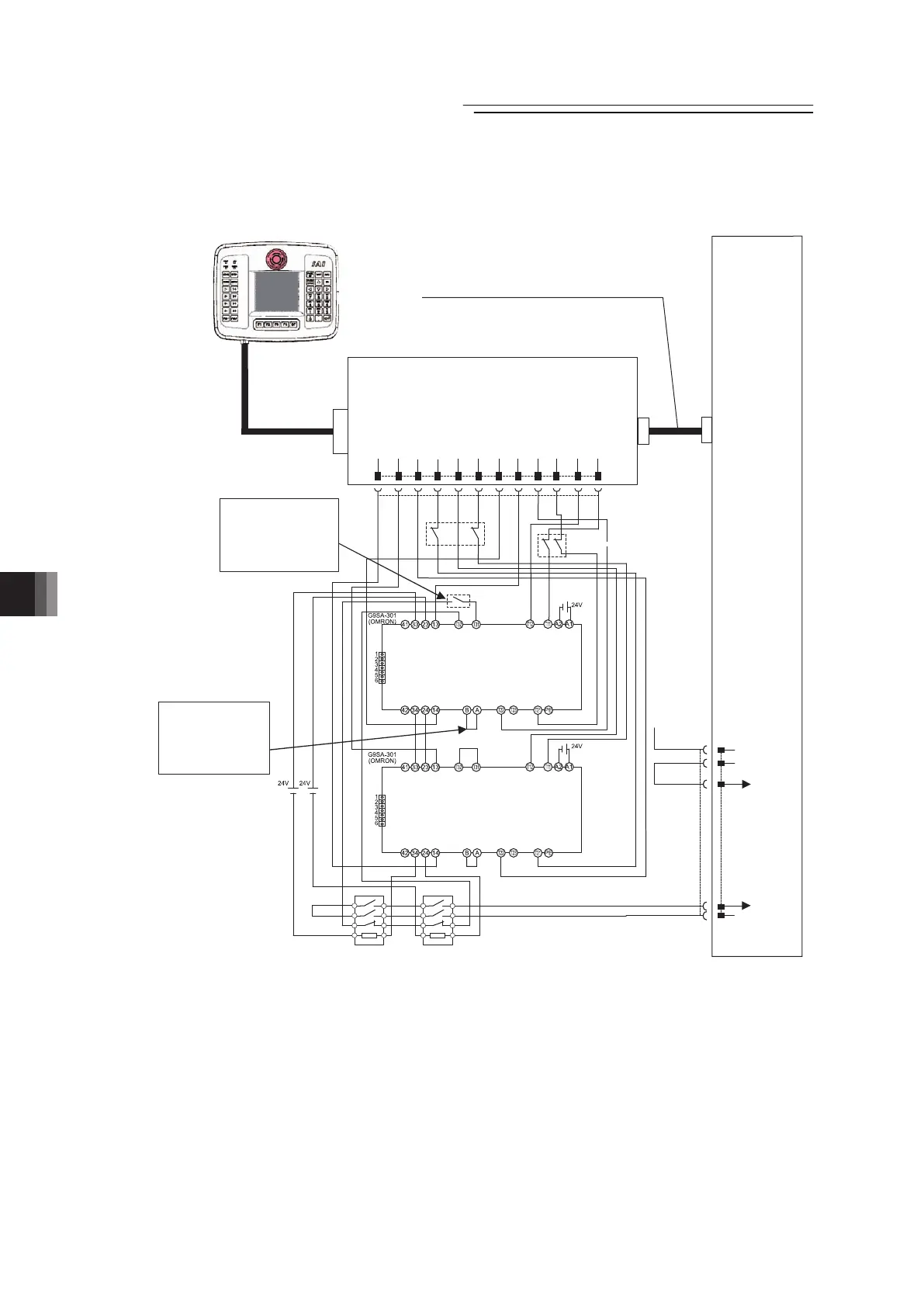

In case of category 3 or 4
Connection Cable CB-CON-LB□□□
Controller
● PCON
ENBOUT
ENBIN
ENB2+
ENB2-
ENB1+
ENB1-
EMGOUT
EMGIN
EMG2+
EMG2-
EMG1+
EMG1-
RCB-LB-TGS
Motor
Power
Supply
12
11
10
9
8
7
6
5
4
3
2
1
Solenoid Contactor
Solenoid Contactor
Enable SW
Reset SW
Emergency Stop SW
Emergency Stop SW
For Category 4, insert
Reset Switch as shown
in the diagram.
For Category 3, layout
the wiring without
inserting Reset Switch.
For Category 4, make
the connection of
A
and B open.
For category 3, make
a short circuit
between
A
and B.
EMG-
S2
S1
24V
MPO
MPI
TB-02D, TB-01D(R), CON-PGAS
(or Dummy plug : DP-4S)
259
261
