Chapter 10
Appendix
POWER CON
PCON-CB/LC
249
2)

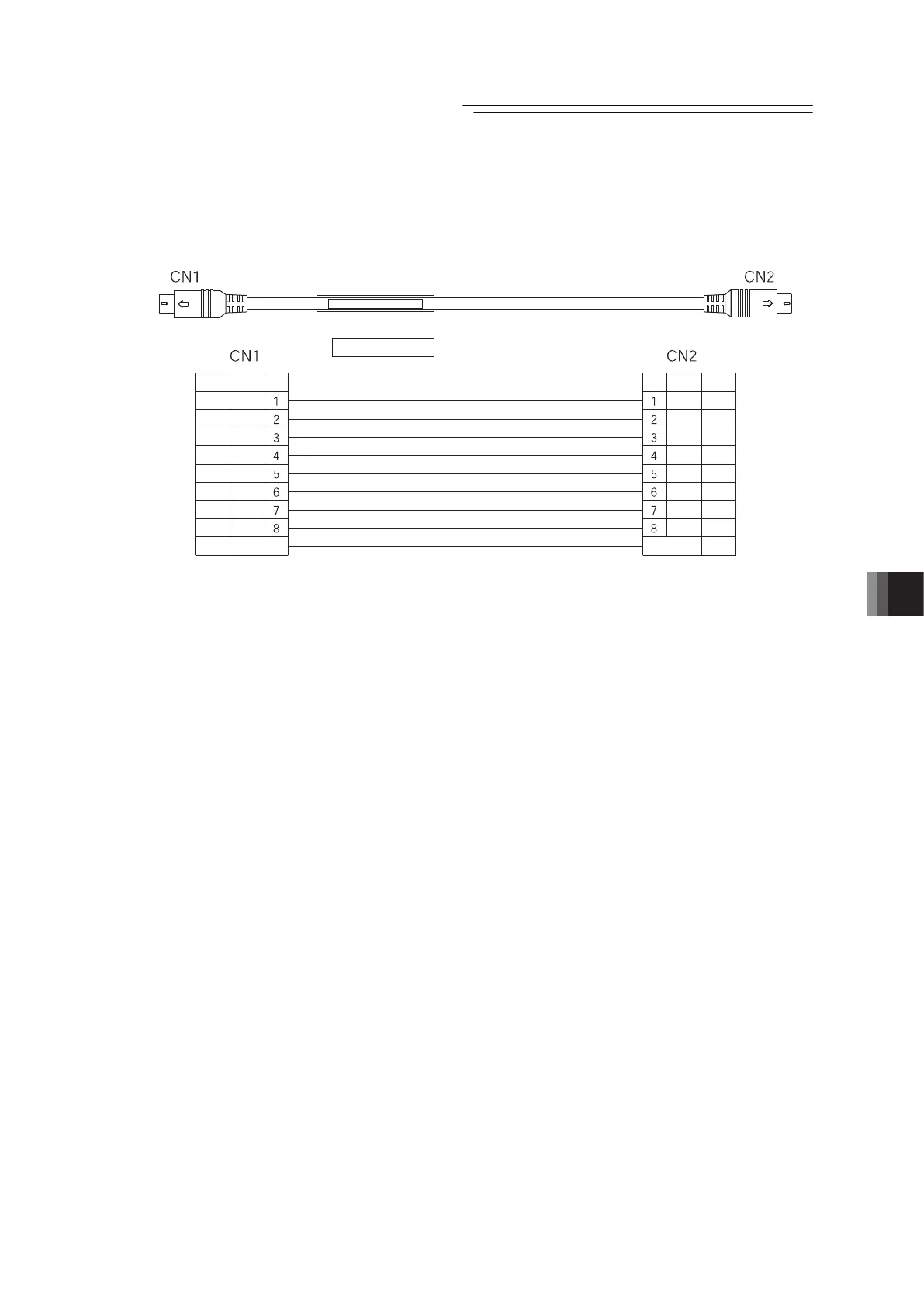

Connection Cable
●
Controller/TP Adaptor Connection Cable
Use this cable to connect the controller
and TP ada
pter (RCB-LB-TG).
Model : CB-CON-LB005 (standa
rd cable length : 0.5m)
Maximum cable length : 2.0m
Color
Signal
No.
Color
Signal
No.
BR
YW
RD
OR
B
L
GN
P
L
GY
Shield
BR
YW
RD
OR
B
L
GN
P
L
GY
Shield
8PIN MIN DIN Connector (overmolded)
8PIN MIN DIN Connector (overmolded)
SGA
SGB
5V
ENBL
EMGA
24V
GND
EMGB
FG
SGA
SGB
5V
ENBL
EMGA
24V
GND
EMGB
FG
CB-CON-LB
□□□
262
264
