Chapter 1 Specications Check
POWER CON
PCON-CB/LC
36
(4) Heat Radiation and Installation
Design and Build the system considering the size of the controller box, location of the controller
and cooling factors to keep the surrounding temperature around the controller below 40°C.
To fix the units in the control box, use the attachment holes on top and bottom of the unit for the
screw fixed type, and use the DIN rails for the DIN rail fixed type.

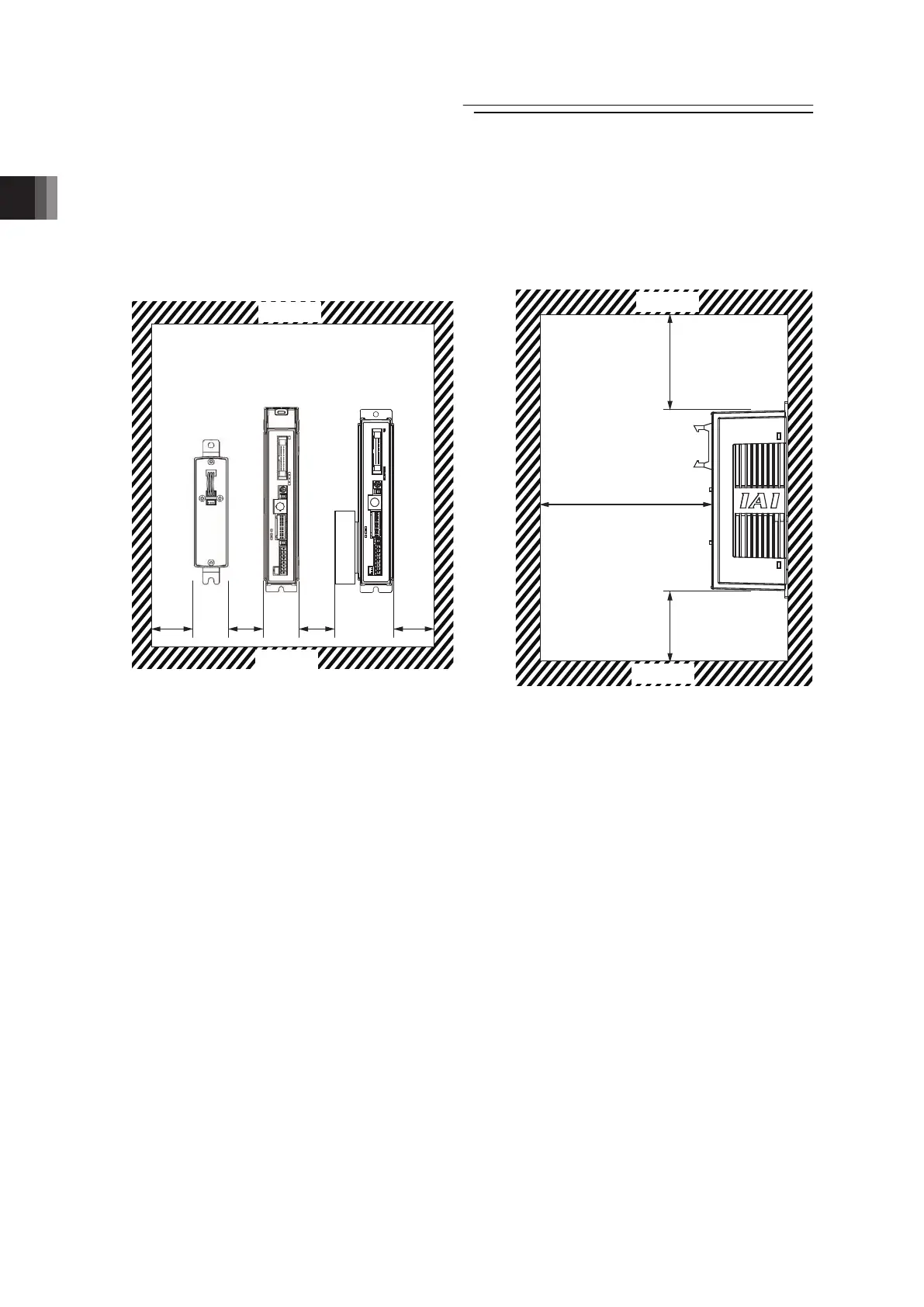

Install in the orientation shown in the figure below for heat radiation.
MIN.
30mm
MIN.
30mm
MIN.
30mm
MIN.
30mm
MIN. 100mm
MIN. 50mm
MIN. 100mm
Ensure enough space
for wiring.
(5) Installation of CFB Type
For CFB (screw fixed type), detach the fan unit temporarily and use the attachment hole on the
top. [Refer to 10.4.3 Replacement of Fan]
Ceiling
Floor
Floor
Ceiling
