IAI RCP6 Series User Manual

Actuator compatible with
presses that allows for simple power control
Capable of both pushing and pulling
1
A pulse press is an actuator combining a
stepper motor and load cell, that is
capable of performing power control.
It provides a loading repeatability of
±1.0% F.S. (full scale), based on feedback
from the load cell.
Both pushing and pulling are supported in the load direction. There are
no limitations on pushing or pulling times.
(Example) Wire harness pulling test
 What is a pulse press?
IAI's new
pulse press
!
POINT
F.S. : Full Scale
Maximum measurable value

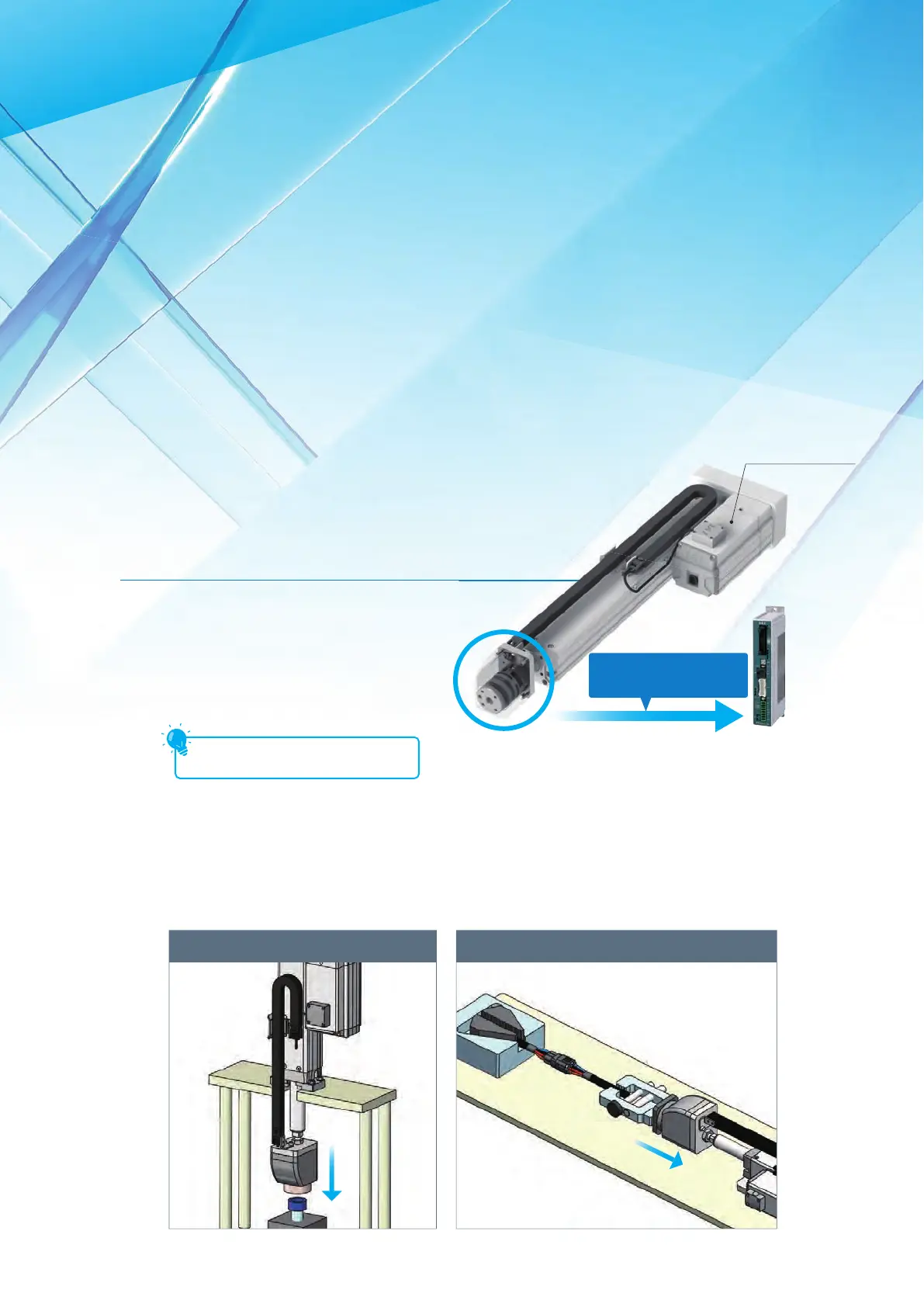

Load cell
RCP6-RRA
(pulse press)
PCON-CBP
(pulse press dedicated
controller)
Pulse motor
Feedback
(load information)
1
(Example) Washer press tting (pushing)

IAI RCP6 Series Specifications

General

Type	Controller
Model	RCP6 Series
Storage Temperature	-10 to 60°C
Control Method	Position Control
Programming	IAI Software
Communication Interface	RS-232C, Ethernet
Humidity	85% RH or less (non-condensing)
