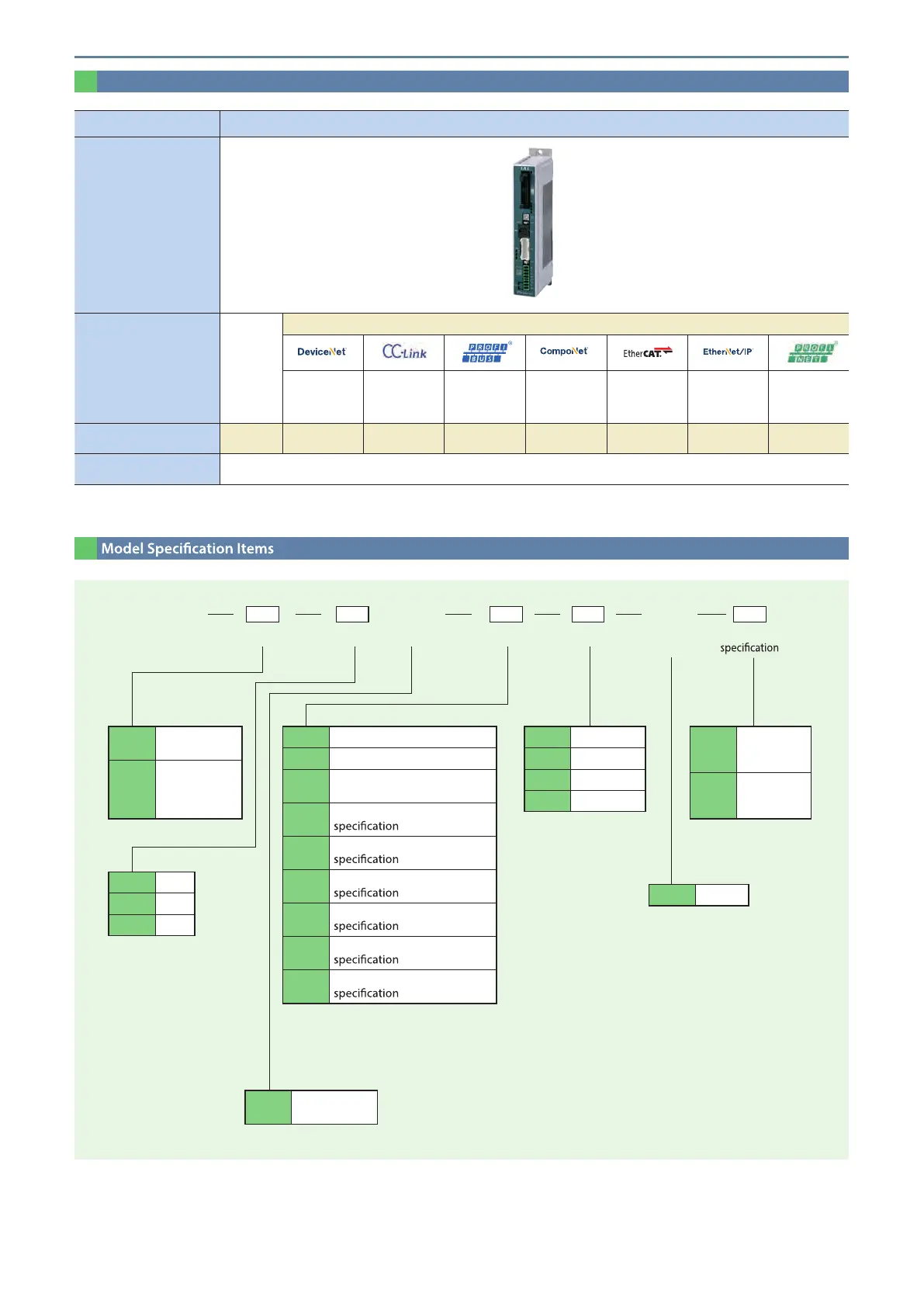

PCON- CBP Controller
Model PCON-CBP/CGBP
External view
I/O type
Positioner
type
Field network type
DeviceNet
connection
specication
CC-Link
connection
specication
PROFIBUS-DP
connection
specication
CompoNet
connection
specication
EtherCAT
connection
specication
EtherNet/IP
connection
specication
PROFINET IO
connection
specication
I/O type model number NP/PN DV CC PR CN EC EP PRT
Supported encoder
High-res battery-less absolute
List of Models
Mounting
I/O cable length
Encoder typeMotor type
TypeSeries
0WAI
I/O type
PCON
Power supply
voltage
CBP
Pulse press
standard type
CGBP
Pulse press
safety
category
specication
35P 35
42P 42
56P 56
NP PIO (NPN) specication
PN PIO (PNP) specication
DV
DeviceNet connection
specication
CC
CC-Link connection
PR
PROFIBUS-DP connection
CN
CompoNet connection
EC
EtherCAT connection
EP
EtherNet/IP connection
PRT
PROFINET IO connection
0 No cable
2
2m (standard)
3 3m
5 5m
WAI
Battery-less
absolute
0 24VDC
Left
blank
Screw
mounting
specication
DN
DIN rail
mounting
specication
* When a eld network
specication is selected,
the I/O cable length is "0"
(no cable).
(Example)
35P: Supports 35 pulse motor
19 PCON-CBP
