29
Part 1 Installation

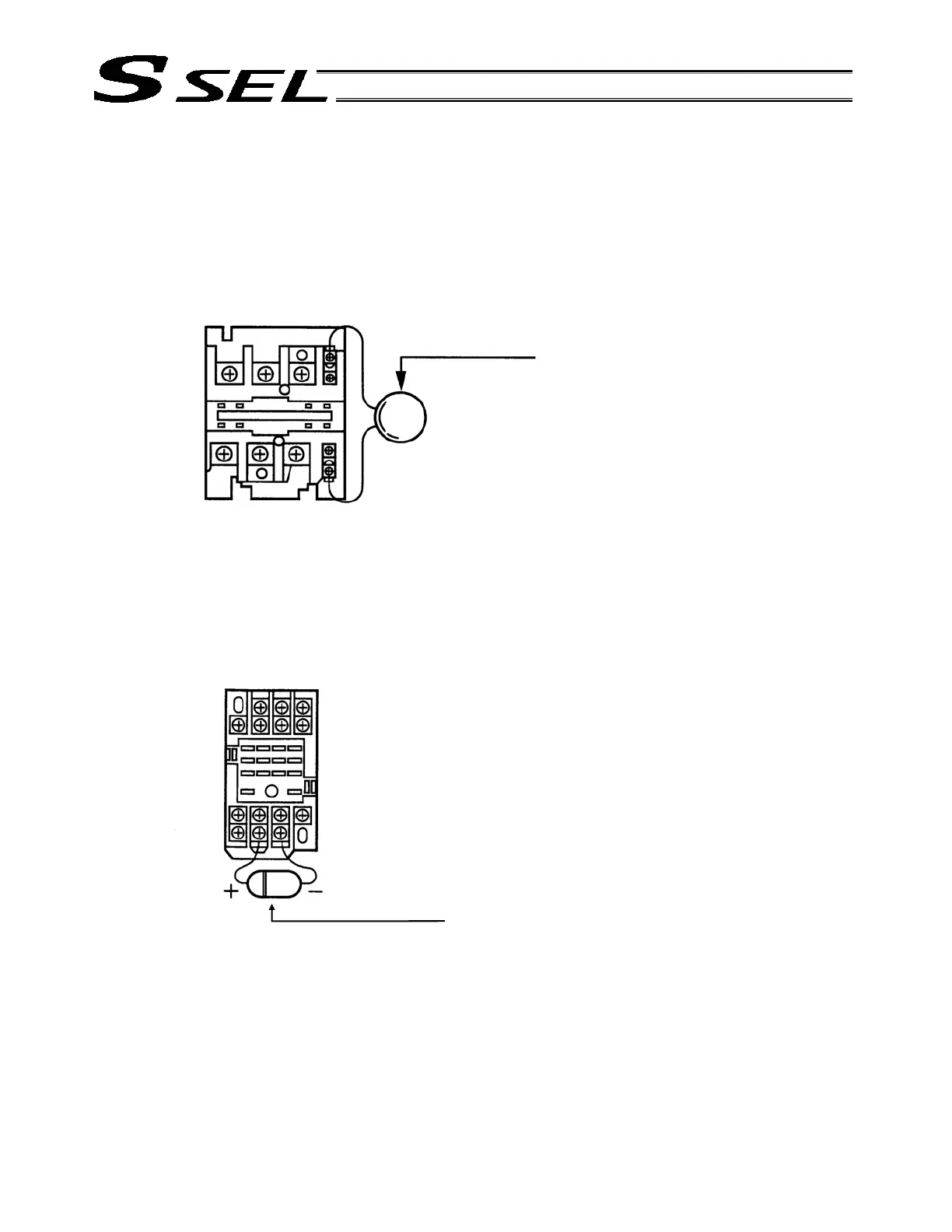

(3) Noise sources and noise elimination
There are many noise sources, but solenoid valves, magnet switches and relays are of particular concern
when building a system. Noise from these parts can be eliminated using the measures specified below:
[1] AC solenoid valve, magnet switch, relay
Measure --- Install a surge killer in parallel with the coil.
[2] DC solenoid valve, magnet switch, relay
Measure --- Install a diode in parallel with the coil. Determine the diode capacity in accordance with the load
capacity.
In a DC circuit, connecting a diode in reversed polarity will damage
the diode, internal parts of the controller and DC power supply.
Exercise due caution.
The above noise elimination measures are particularly important when a 24-VDC relay is driven directly by
a controller output and there is also a 100-VAC solenoid valve, etc.
Surge killer

Point
Wire from each coil over the shortest distance.
Installing a surge killer on the terminal block, etc.,
will be less effective because of a longer distance
from the coil.
Diode
