12. Use the tab key to answer YES to Keep Definition and YES to set Unconfigure Child Devices.
Press Enter.
13. The ARE YOU SURE screen displays. Press Enter to verify the information. Successful
unconfiguration is indicated by the OK message displayed next to the Command field at the top of the
screen.
14. Press F3 to return to the PCI Hot-Swap Manager menu.
15. Press F3 to cancel.
16. Select Replace/Remove a PCI Hot-Swap Adapter and press Enter. The Replace/Remove a PCI
Hot-Swap Adapter menu displays.
17. Move the cursor to select the adapter that you are replacing, and press Enter.
18. Press the Tab key until the entry field displays the replace operation, and then press Enter. Follow the
instructions that display on the screen until you are instructed to remove the adapter.
19. When you are instructed to remove the adapter from the adapter slot, disconnect any cables that are
connected to the adapter being removed.
20. Turn the locking latch, and lift the plastic stop for the adapter.
21. Carefully grasp the adapter by the edges, and pull it straight out from the PCI adapter slot connector.
1
2
3
6
4
5
7

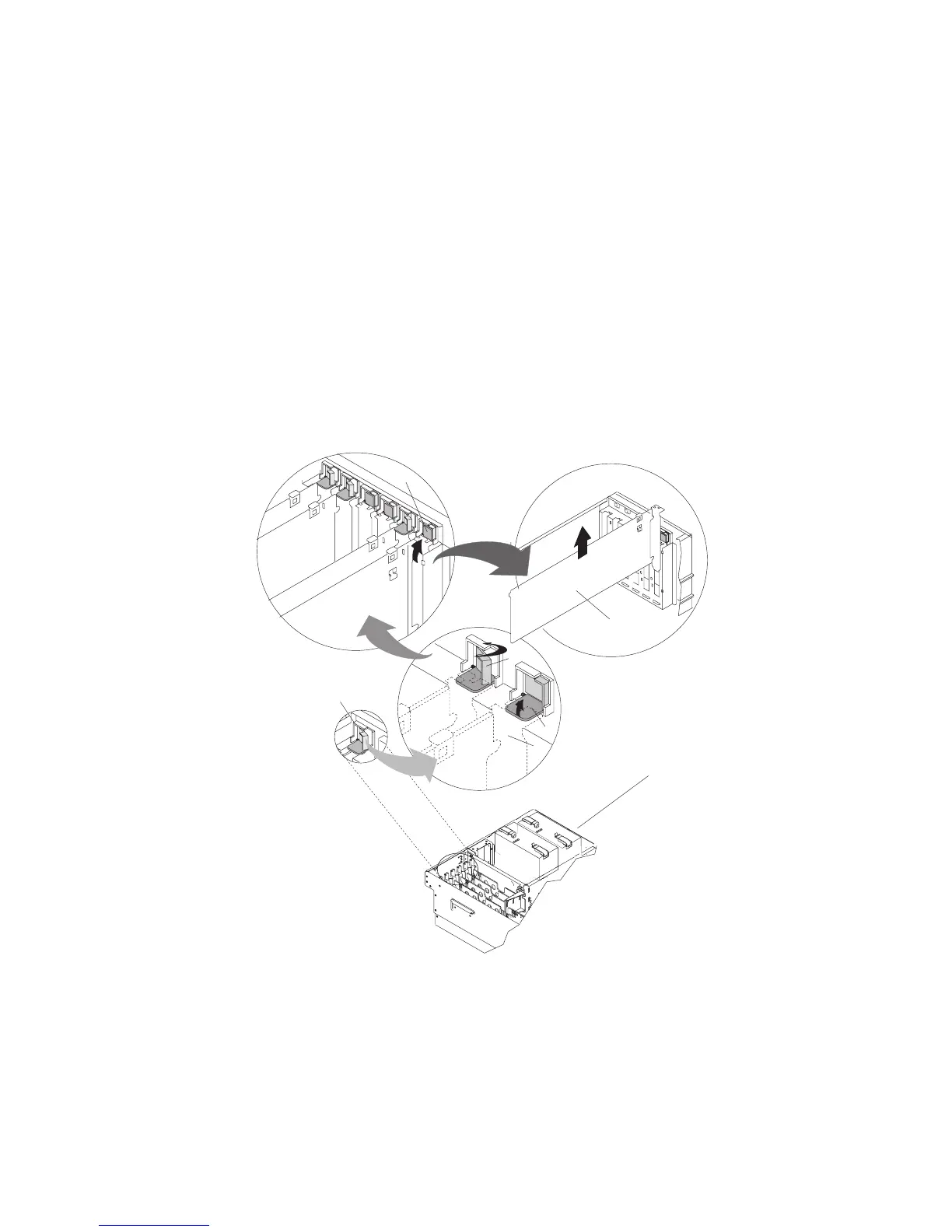

1 Model 6C3 or Model 6E3 5 PCI adapter faceplate (dotted lines)
2 Adapter Retainer Assembly 6 Adapter Retainer Assembly (in the unlocked
position)
3 Adapter Retainer Assembly (retainer seat
down and the locking latch in the locked
position)
7 PCI Adapter
4 Adapter Retainer Assembly (retainer seat
down and the locking latch in the unlocked
position)
302 EserverpSeries 615 Service Guide
