IBM Storwize V7000 Unified Quick Installation Guide

Control enclosure components

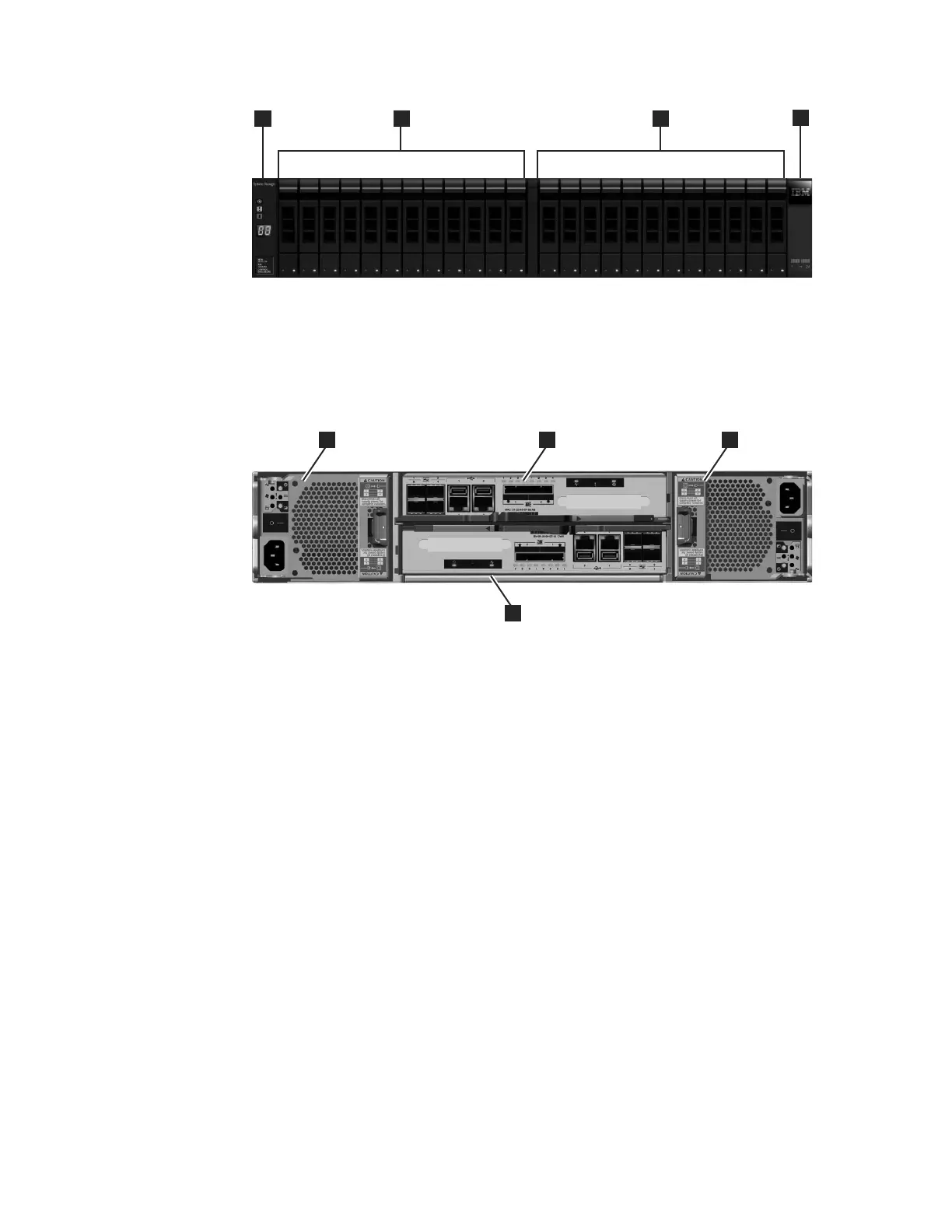

Figure 3 shows the rear view of a control enclosure and identifies the location of
the power supply units and the canisters.
v Power supply units are located on the left and right of the canisters. Each unit
contains a battery. Power supply 1 is located on the left. Power supply 2 is
located on the right. Power supply 1 is inserted top side up, and power
supply 2 is inverted, or top side down.
Important: The power supply units for the control enclosure and expansion
enclosure are not interchangeable.
v Two canisters are housed in the middle of the enclosure. Each canister is known
as a node canister. The upper canister, as shown in Figure 3, is labelled 3, and
the lower canister is labelled 4. Canister 3 is top side up, and canister 4 is
inverted, or top side down.
Figure 4 on page 5 shows the rear view of a model 2076-112 or a model 2076-124
control enclosure and identifies the location of the ports.
svc00693
1 2 2
3
Figure 2. This figure shows 24 drives and two end caps (model 2076-124).
1
2
3
svc00662
4
Figure 3. Rear view of a model 2076-112 or a model 2076-124 control enclosure
4 Storwize V7000 Unified: Quick Installation Guide

IBM Storwize V7000 Unified Specifications

General

Model	IBM Storwize V7000 Unified
Storage Type	Unified Storage
RAID Levels	RAID 0, 1, 5, 6, 10
Form Factor	2U
Drive Types Supported	SAS, SSD
Maximum Drives	504
Network Protocols	iSCSI, FC, FCoE
Drive Bays	24 per enclosure
Host Interface	8 Gb FC, 1 Gb/10 Gb iSCSI
File Protocols	NFS, CIFS
Block Protocols	iSCSI, Fibre Channel
Type	Unified Storage
Maximum Host Ports	16
Operating System Support	VMware, Microsoft Windows, Linux, AIX
Data Services	Thin provisioning, replication
Power Supply	Redundant power supplies
Host Interfaces	8 Gbps Fibre Channel, 10 Gbps iSCSI, 1 Gbps iSCSI
