IBM Storwize V7000 Unified - File Module Ethernet Direct Connections; Ethernet Connections Available with the File

Table 16. Ethernet connections available with the file modules
Item Port Purpose
IP address is
assigned by
InitTool Use
1 Built-in Ethernet
port 2
1 Gbps file
module to file
module
interconnect
From the range File module to
file module
configuration
mirroring
2 Built-in Ethernet
port 1
1 Gbps file
module to file
module
interconnect
From the range File module to
file module
configuration
mirroring
3 Built-in Ethernet
port 3
1 Gbps external
network
connection
Yes Management,
service and
optional file
access. (The file
modules must
be able to
communicate
over the network
with the
Storwize
V7000 control
enclosure.)
4 Built-in Ethernet
port 4
1 Gbps external
network
connection
No Optional
management,
optional service,
optional file
access
3
4
PCI
3
4
PCI
1
2
3
4
5
6
7
ifs00045

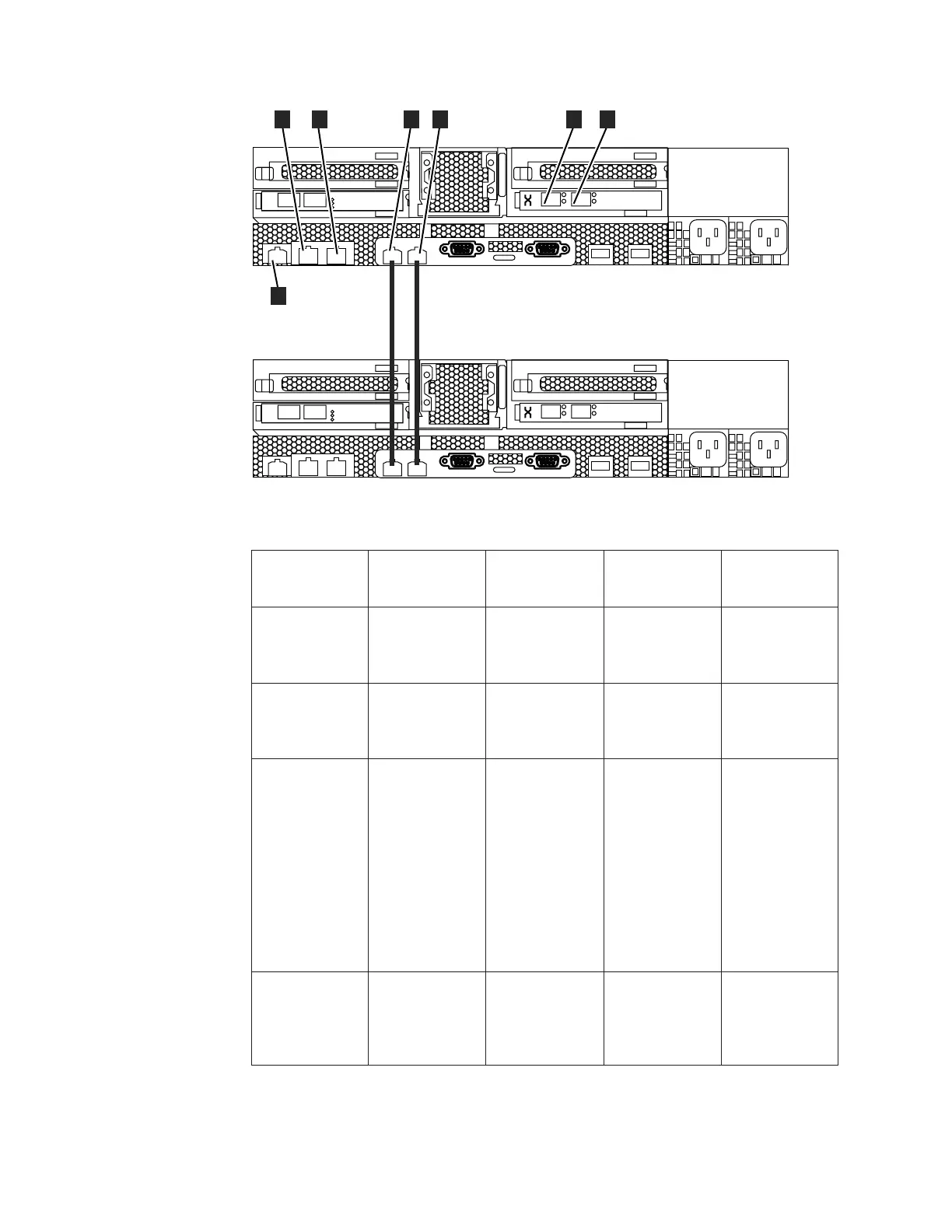

Figure 39. File module Ethernet direct connections.
