6. Attach the power cords and other cables to the rear of the file module
(including keyboard, monitor, and mouse cables, if required).
Route the cables and power cords on the cable management arm 1 and
secure them with cable ties or hook-and-loop fasteners.
Note: Allow slack in all cables to avoid tension in the cables as the cable
management arm moves.
7. Insert the M6 screws to the rear of the slides. Use a cable tie to secure the free
end of the cable management arm to the rack, if needed.
ifs00049

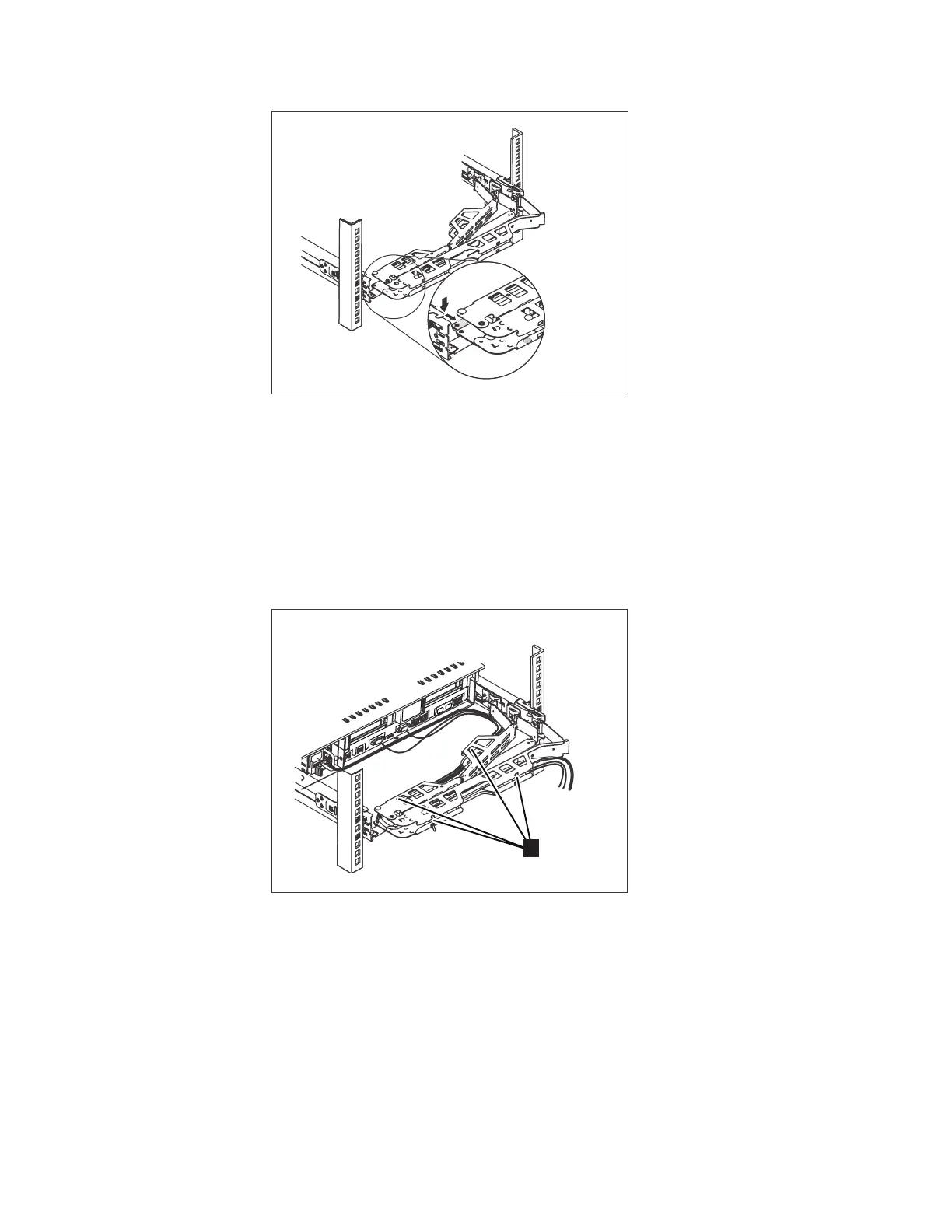

Figure 29. Adjust the location of the cable management arm.
1
ifs00050
Figure 30. Connect and route the cables.
