Figure 9 identifies the various ports and hardware in the rear of the file module:
v 1 Fibre Channel ports, right is port 1, left is port 2
v 2 10 Gbps Ethernet ports, right is port 0, left is port 1
v 3 Power supply
v 4 USB ports
v 5 Serial port
v 6 Video port
v 7 1 Gbps Ethernet ports, left is port 1, right is port 2
v 8 1 Gbps Ethernet ports, left is port 3, right is port 4
v 9 Not used
Miscellaneous hardware
The USB flash drive (also known as a USB flash drive) is packaged with the
publications and contains the initialization tool for performing the initial system
configuration.
Step 3. Verifying environmental requirements
Verify that the physical requirements are met.
Certain requirements for the physical site must be met to ensure that your system
works reliably. This step includes verifying that adequate space in a suitable rack is
available and that requirements for power and environmental conditions are met.
This documentation assumes that you have completed the physical planning for
the environment of your system.
Storwize V7000 Unified
3
4
5
ifs00005
2
1

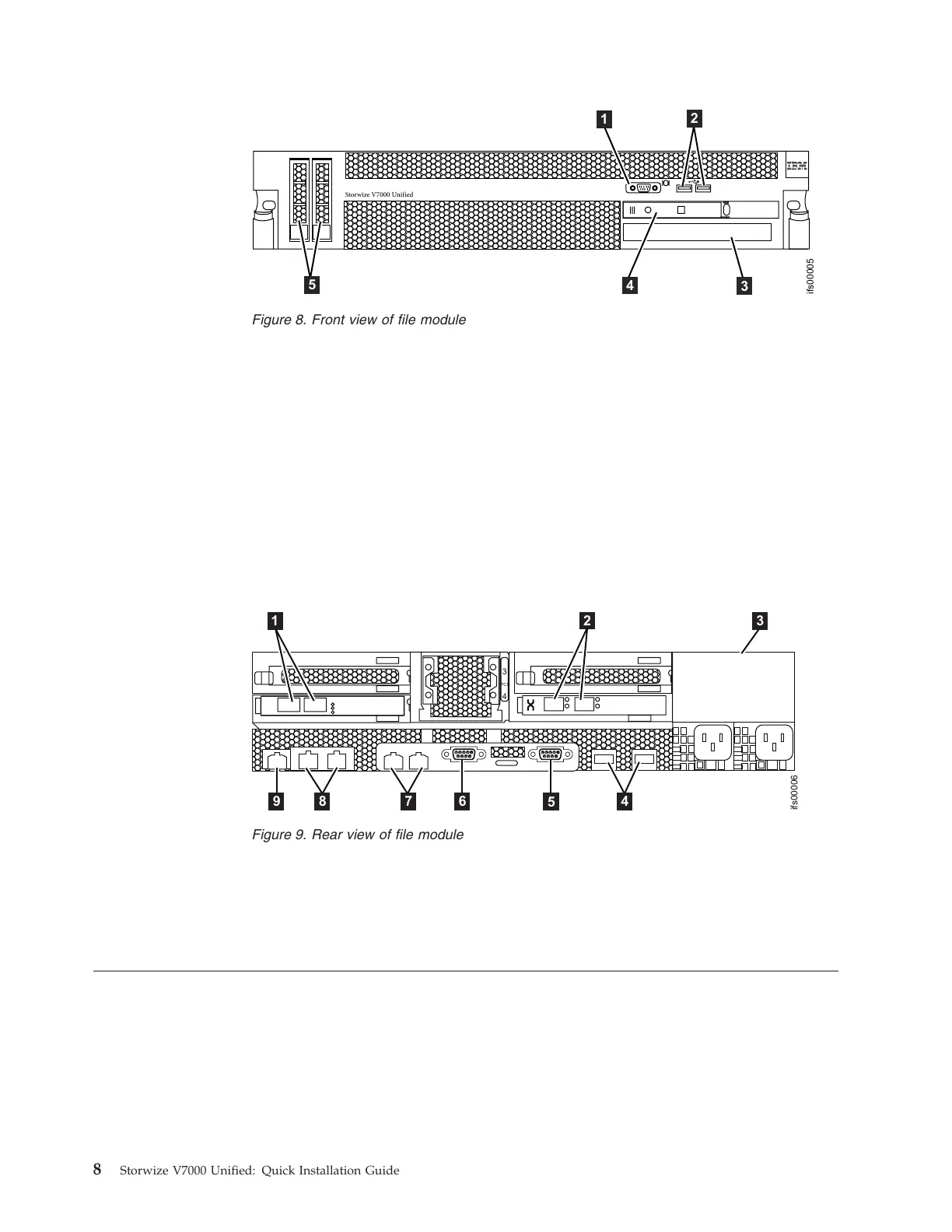

Figure 8. Front view of file module
3
4
PCI
ifs00006
1
2
3
4
5
6
7
8
9
Figure 9. Rear view of file module
8 Storwize V7000 Unified: Quick Installation Guide
