IBM Storwize V7000 Unified Quick Installation Guide

– Minimum depth of 70 mm (2.76 inch) between the front mounting flange and
inside of the front door.
– Minimum depth of 157 mm (6.18 inch) between the rear mounting flange and
inside of the rear door.
– Minimum depth of 718 mm (28.27 inch) and maximum depth of 762 mm (30
inch) between the front and rear mounting flanges to support the use of the
cable management arm.
Note: The maximum distance between the front and the rear EIA rails of the
rack is 810 mm (31.9 inch). Also, cage nuts and clip nuts are not required to
install the file module in a rack cabinet.
v Install the cable management arm on either side of the file module. These
instructions are shown with the cable management arm mounted on the left
side. The installation instructions in this document can be reversed if you are
installing the cable management arm on the side of the file module not shown.

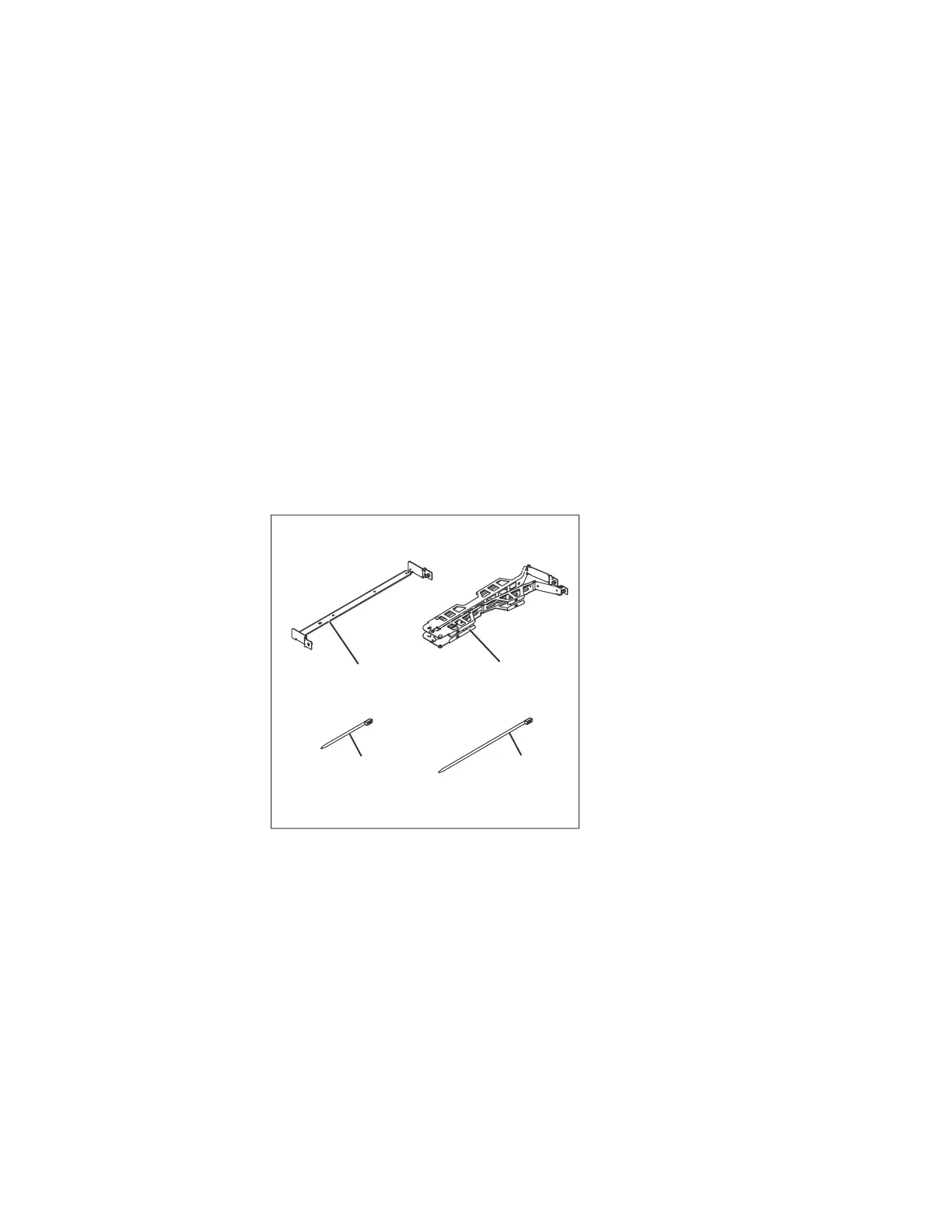

The following illustration shows the items that you need to install the file module
in the rack cabinet. If any items are missing or damaged, contact your place of
purchase. The contents from the slide rail box and the cable management arm box
are necessary for this installation.
Cable management
support arm
Cable management
arm assembly
Cable ties or
hook and
hook fasteners
Large cable
tie or hook
and loop strap
ifs00018
Figure 18. Cable management arm box contents.
Chapter 2. Performing the hardware installation 35

IBM Storwize V7000 Unified Specifications

General

Model	IBM Storwize V7000 Unified
Storage Type	Unified Storage
RAID Levels	RAID 0, 1, 5, 6, 10
Form Factor	2U
Drive Types Supported	SAS, SSD
Maximum Drives	504
Network Protocols	iSCSI, FC, FCoE
Drive Bays	24 per enclosure
Host Interface	8 Gb FC, 1 Gb/10 Gb iSCSI
File Protocols	NFS, CIFS
Block Protocols	iSCSI, Fibre Channel
Type	Unified Storage
Maximum Host Ports	16
Operating System Support	VMware, Microsoft Windows, Linux, AIX
Data Services	Thin provisioning, replication
Power Supply	Redundant power supplies
Host Interfaces	8 Gbps Fibre Channel, 10 Gbps iSCSI, 1 Gbps iSCSI
