IBM Storwize V7000 Unified Quick Installation Guide

4.
Note: Make sure the arm with junctions is facing the file module.
Place the cable management arm on the support arm. Pull out both cable
management arm pins and then slide the cable management arm tabs into the
slots on both inside and outside of the slide rail. Push the tabs until they snap
into place.
5. Make sure that the support rail is located between the 2 nail head features.
ifs00027

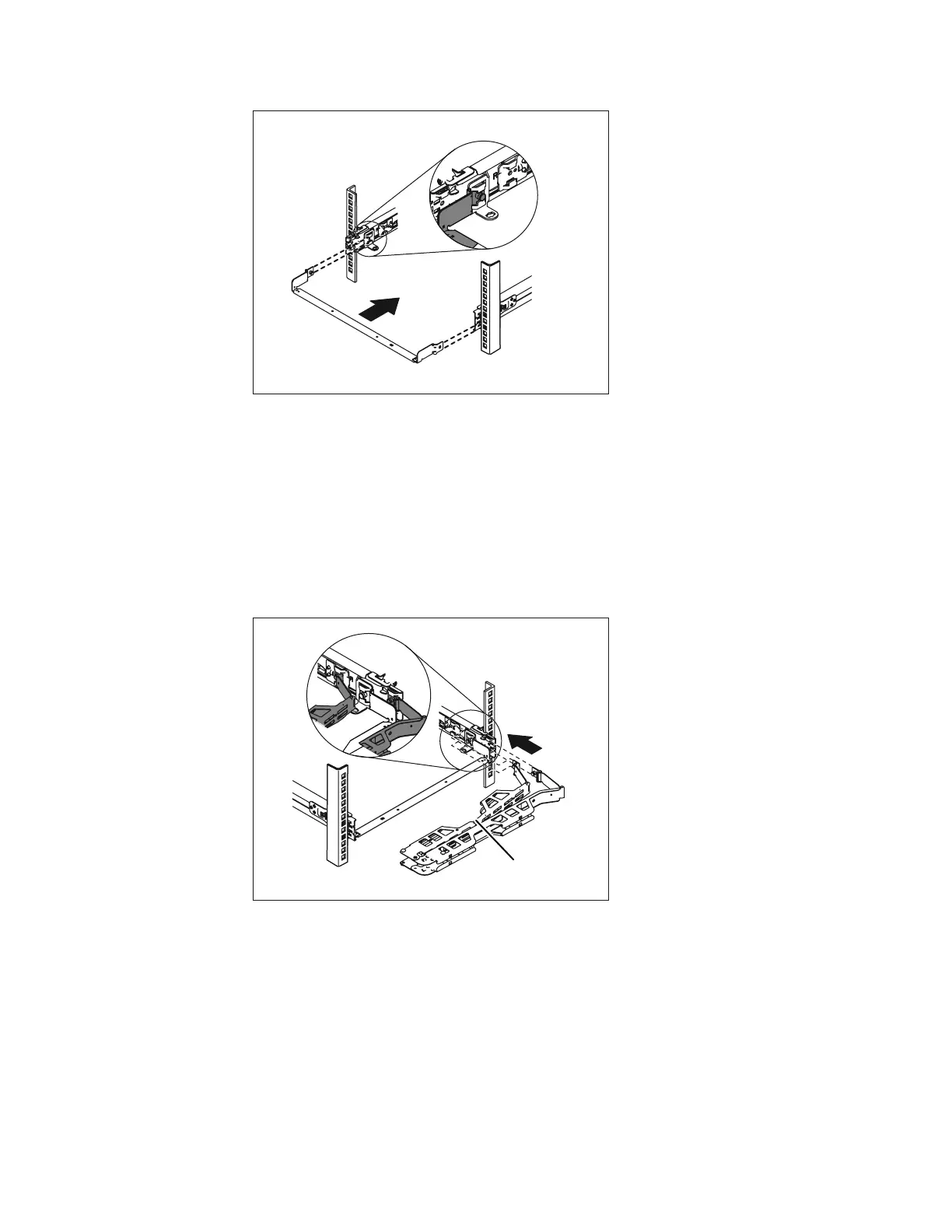

Figure 27. Install the cable management support arm. It can be installed on either side (left or
right). The graphic shows the rear of the rack.
Arm junctions
ifs00048
Figure 28. Install the cable management arm.
40 Storwize V7000 Unified: Quick Installation Guide

IBM Storwize V7000 Unified Specifications

General

Model	IBM Storwize V7000 Unified
Storage Type	Unified Storage
RAID Levels	RAID 0, 1, 5, 6, 10
Form Factor	2U
Drive Types Supported	SAS, SSD
Maximum Drives	504
Network Protocols	iSCSI, FC, FCoE
Drive Bays	24 per enclosure
Host Interface	8 Gb FC, 1 Gb/10 Gb iSCSI
File Protocols	NFS, CIFS
Block Protocols	iSCSI, Fibre Channel
Type	Unified Storage
Maximum Host Ports	16
Operating System Support	VMware, Microsoft Windows, Linux, AIX
Data Services	Thin provisioning, replication
Power Supply	Redundant power supplies
Host Interfaces	8 Gbps Fibre Channel, 10 Gbps iSCSI, 1 Gbps iSCSI
