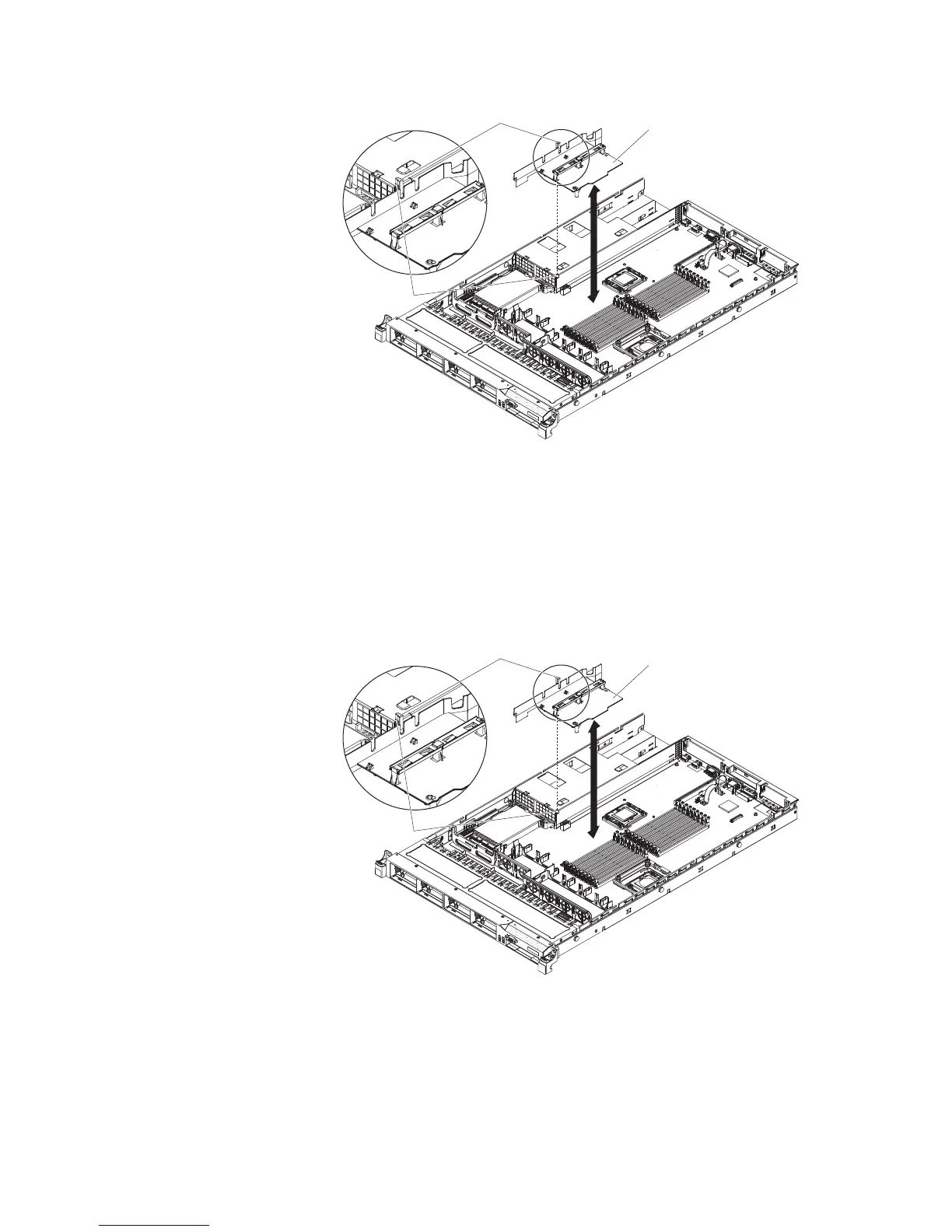

Microprocessor 2
air baffle
Hole for baffle tab
Baffle tab
Installing the microprocessor 2 air baffle
To install the air baffle, complete the following steps:
1. Read the safety information that begins on page vii and “Installation guidelines”
on page 167.
2. Align the microprocessor 2 air baffle tab with the hole on the side of the
power-supply cage; then insert the tab into the hole on the cage (make sure
that the front end of the air baffle is lined up with the blue touch point tab on the
left side of fan 6). Press the air baffle down until it is securely seated.
Microprocessor 2
air baffle
Hole for baffle tab
Baffle tab
3. Install the cover (see “Installing the cover” on page 174).
4. Slide the server into the rack.
5. Reconnect the power cords and any cables that you removed.
6. Turn on the peripheral devices and the server.
176 IBM System x3550 M3 Types 4254 and 7944: Problem Determination and Service Guide
