Installing a hot-swap fan assembly
The server comes standard with five dual-motor hot-swap cooling fans.
Attention: To ensure proper operation, replace a failed hot-swap fan within 30
seconds.
To install an additional hot-swap fan, complete the following steps:
1. Read the safety information that begins on page vii and “Installation guidelines”
on page 167.
2. Remove the cover (see “Removing the cover” on page 174).
3. Touch the static-protective package that contains the new fan to any unpainted
metal surface on the server. Then, remove the new fan from the package.

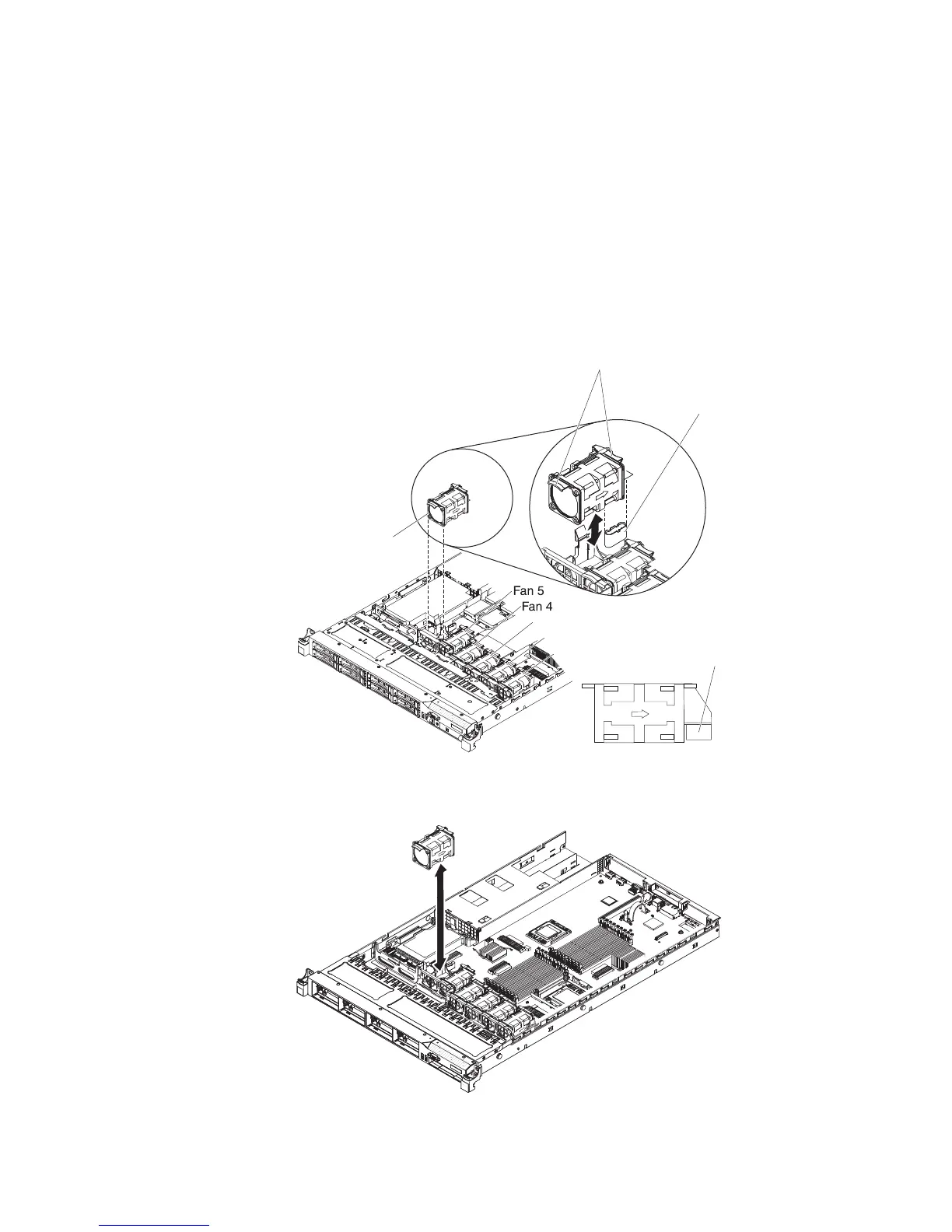

Fan 2
Fan 3
Fan 6
Fan 1
Fan tabs
Fan connector on
the system board
Fan (side view)
Fan connector
4. Orient the fan over the fan slot in the fan assembly bracket so that the fan
connector aligns with the connector on the system board.
Chapter 5. Removing and replacing server components 215
