7. If you are instructed to return the hard disk drive backplate assembly, follow all
packaging instructions, and use any packaging materials for shipping that are
supplied to you.
Installing the simple-swap SATA hard disk drive backplate assembly
To install the replacement simple-swap SATA hard disk drive backplate assembly,
complete the following steps:
1. Read the safety information that begins on page vii and “Installation guidelines”
on page 167.

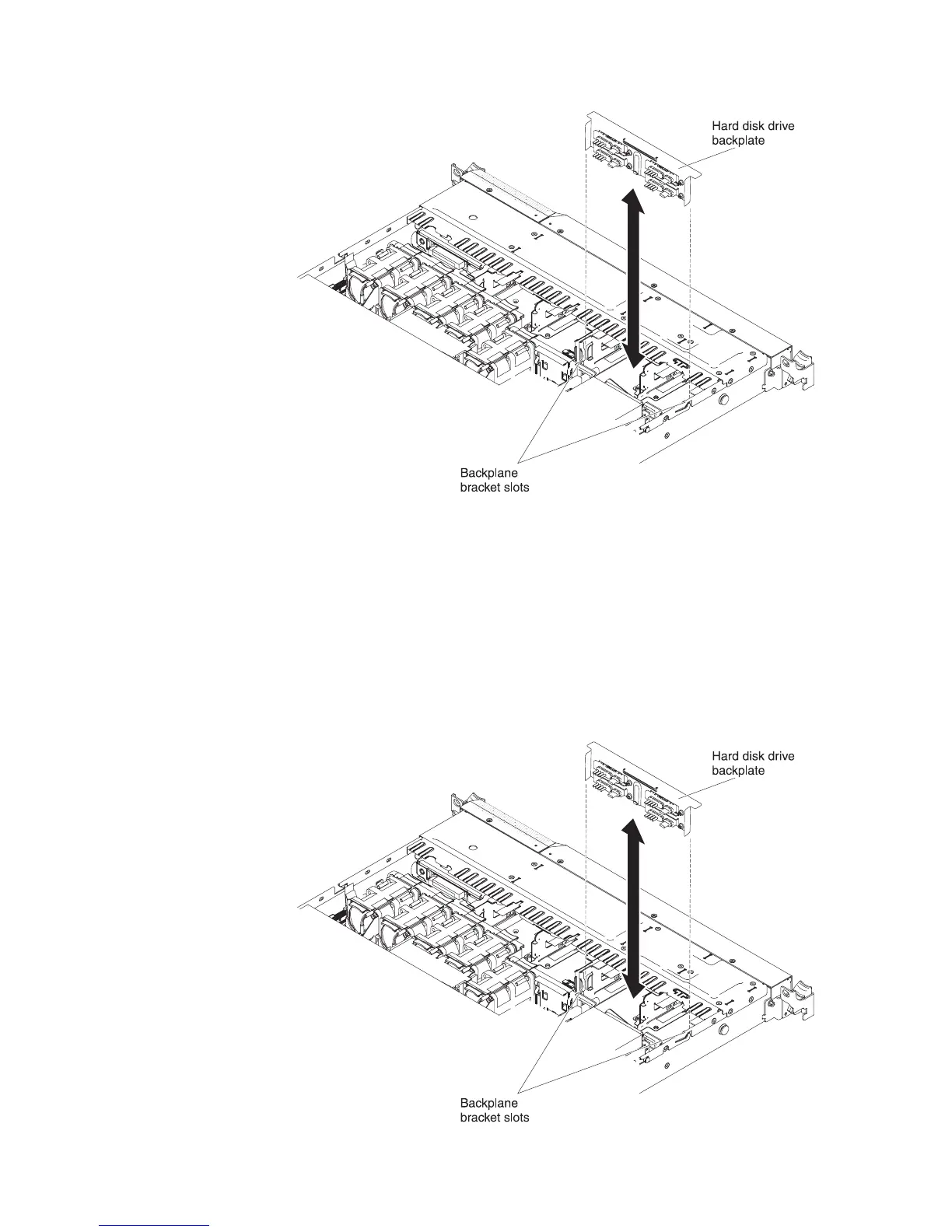

2. Align the sides of the hard disk drive backplate with the slots on the backplane
bracket.
Chapter 5. Removing and replacing server components 239
