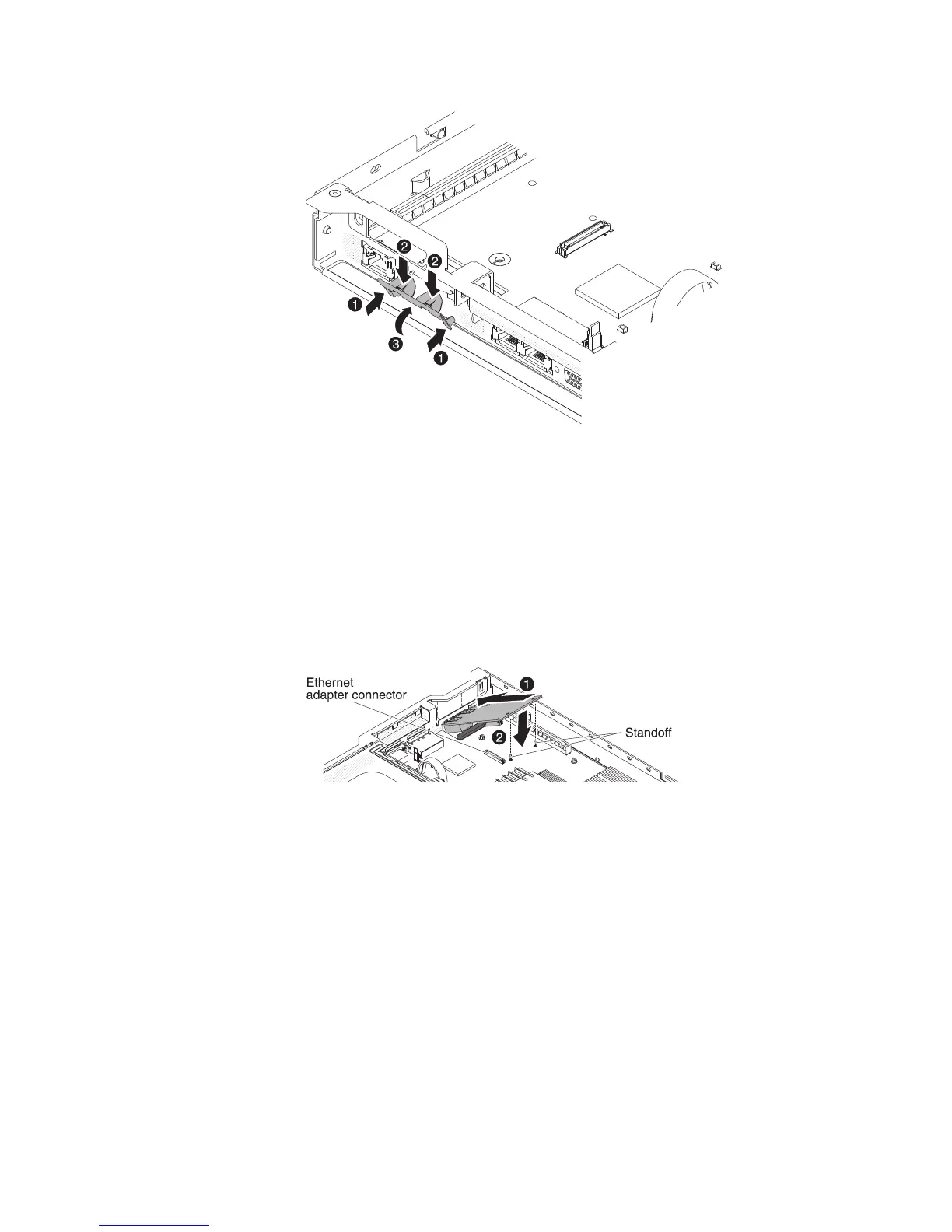

7. While pressing the top of the metal clip, rotate the metal clip toward the front
of the server until the metal clip clicks into place. Make sure the metal clip is
securely engaged on the chassis.
8. Touch the static-protective package that contains the new Ethernet adapter to
any unpainted metal surface on the server. Then, remove the Ethernet adapter
from the package.
9. Align the adapter with the adapter connector on the system board; then, tilt the
adapter so that the port connectors on the adapter line up with the port
openings on the chassis.
10. Slide the port connectors on the adapter into the port openings on the chassis;
then, press the adapter firmly until the two standoffs engages the adapter.
Make sure the adapter is securely seated on the connector on the system
board.
11. Reinstall the PCI riser-card assembly in PCI riser connector 1 if you have
removed it previously (see “Installing a PCI riser-card assembly” on page 235).
12. Replace the cover (see “Installing the cover” on page 174).
13. Slide the server into the rack.
14. Reconnect the power cord and any cables that you removed.
15. Turn on the peripheral devices and the server.
Removing a remotely installed RAID adapter battery
If a RAID adapter battery is installed remotely on the microprocessor 2 air baffle
and you need to replace it, complete the following steps:
1. Read the safety information that begins on page vii and “Installation guidelines”
on page 167.
Chapter 5. Removing and replacing server components 219
