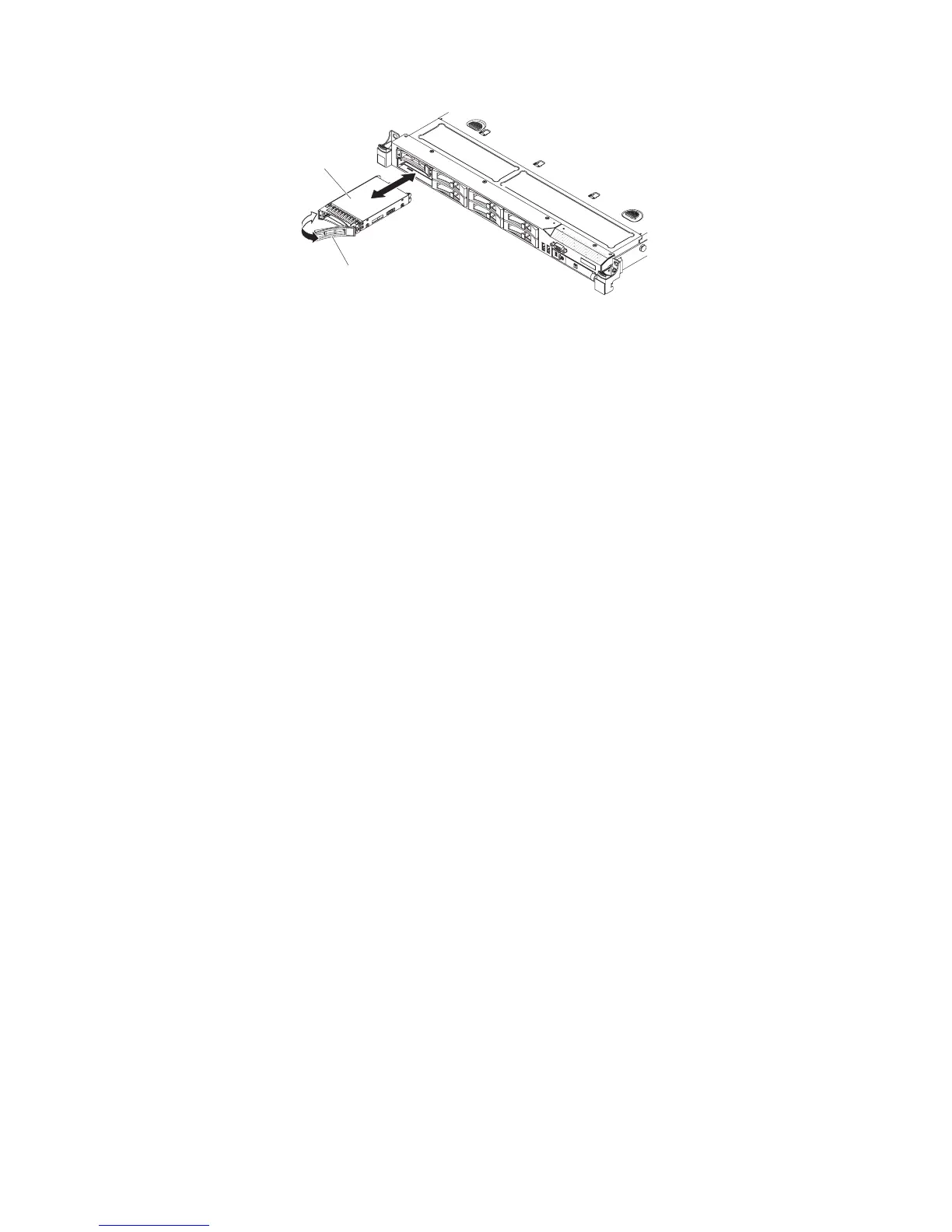

Drive-tray
assembly
Drive handle
4. Grasp the handle and slide the drive out of the drive bay.
5. If you are instructed to return the drive assembly, follow all packaging
instructions, and use any packaging materials for shipping that are supplied to
you.
Installing a hot-swap hard disk drive
The following notes describe the type of hard disk drives that the server supports
and other information that you must consider when you install a hard disk drive. For
a list of supported hard disk drives, see http://www.ibm.com/servers/eserver/
serverproven/compat/us/.
v Locate the documentation that comes with the hard disk drive and follow those
instructions in addition to the instructions in this chapter.
v Make sure that you have all the cables and other equipment that are specified in
the documentation that comes with the drive.
v Select the bay in which you want to install the drive.
v Check the instructions that come with the drive to determine whether you have to
set any switches or jumpers on the drive. If you are installing a SAS or SATA
device, be sure to set the SAS or SATA ID for that device.
v The server supports up to eight 2.5-inch hot-swap SAS or hot-swap SATA hard
disk drives.
v You cannot mix SAS and SATA hard disk drives in the same server.
v The electromagnetic interference (EMI) integrity and cooling of the server are
protected by having all bays and PCI and PCI Express slots covered or
occupied. When you install a drive, PCI, or PCI Express adapter, save the EMC
shield and filler panel from the bay or PCI or PCI Express adapter slot cover in
the event that you later remove the device.
v For a complete list of supported optional devices for the server, see
http://www.ibm.com/servers/eserver/serverproven/compat/us/.
To install a 2.5-inch hot-swap SAS or SATA hard disk drive, complete the following
steps:
1. Read the safety information that begins on page vii and “Installation guidelines”
on page 167.
2. Remove the filler panel from the empty drive bay.
3. Touch the static-protective package that contains the drive to any unpainted
metal surface on the server; then, remove the drive from the package and place
it on a static-protective surface.
4. Install the hard disk drive in the drive bay:
a. Make sure that the tray handle is in the open (unlocked) position.
b. Align the drive assembly with the guide rails in the bay.
Chapter 5. Removing and replacing server components 185
