12. Connect the DVD drive cable (see “Installing the DVD cable” on page 230).

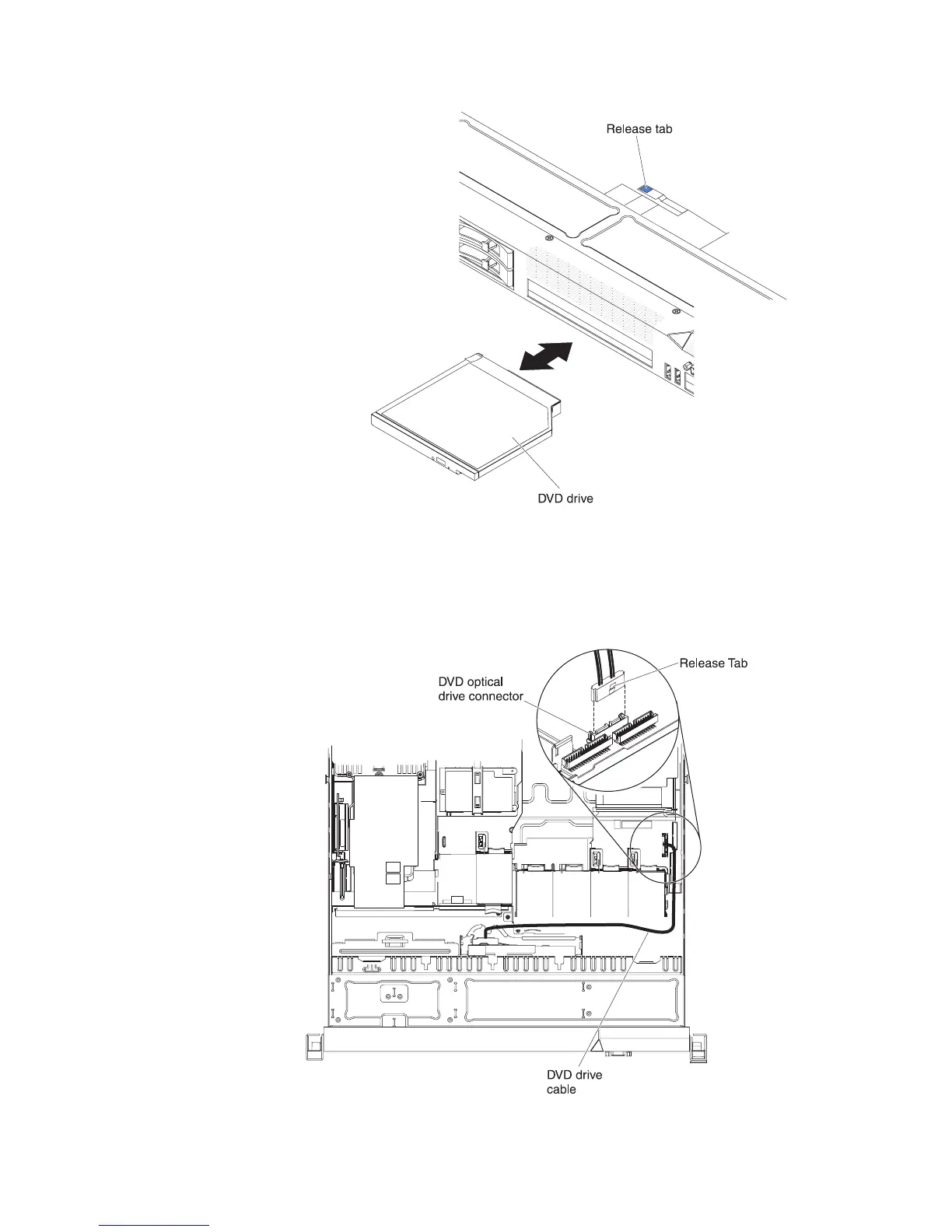

The following illustration shows the cable routing for the DVD drive:
Note: The DVD cable should go on the top of the operation information panel
cable (in the middle) and the Video/USB cable (on the bottom) when all three
cables are installed in the server.
13. Reconnect the power cord and any cables that you removed.
14. Turn on the peripheral devices and the server.
Chapter 5. Removing and replacing server components 193
