IBM System x3550 M3 Type 4254 Problem Determination And Service Guide

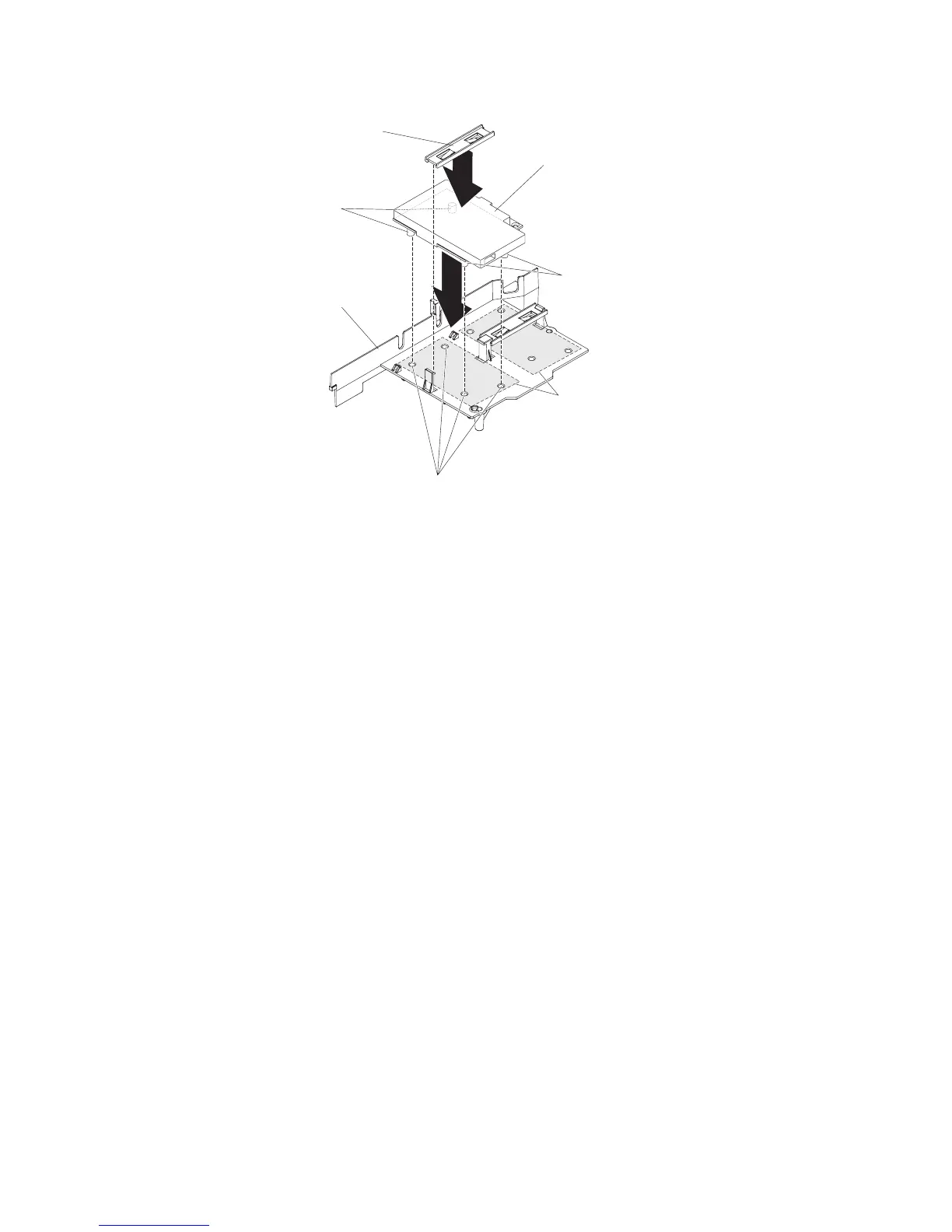

Microprocessor 2
air baffle
Battery
Posts
Posts
Battery
retention clip
Battery
mounting
slots
Rings
c. Take the battery retention clip and place it underneath the other tab while
pressing release tab toward the front of the server; then, press it down until
it snaps in place to hold the battery carrier firmly in place.
6. Install the cover.
7. Slide the server into the rack.
8. Reconnect the power cords and all external cables, and turn on the server and
peripheral devices.
222 IBM System x3550 M3 Types 4254 and 7944: Problem Determination and Service Guide

IBM System x3550 M3 Type 4254 Specifications

General

Processor	Intel Xeon 5600 series
Max Processors	2
Memory	Up to 192 GB DDR3
Form Factor	1U Rack
Chipset	Intel 5520
Drive Bays	Up to 4 hot-swap 2.5-inch SAS/SATA or SSD
RAID Support	RAID 0, 1, 10
Network Interface	Dual-port Gigabit Ethernet
Power Supply	460W or 675W
Expansion Slots	2 PCIe 2.0
Weight	Approximately 17.24 kg (38 lbs)
Memory Slots	18 (RDIMM) or 12 (UDIMM)
