Chapter 5. Preparing the hardware 139
Virtual light path diagnostics
If you are physically in front of the server, it is easy to track hardware problems by noticing the
first tier of light path diagnostics, using the LED panel at the front of the server shown in
Figure 5-7.

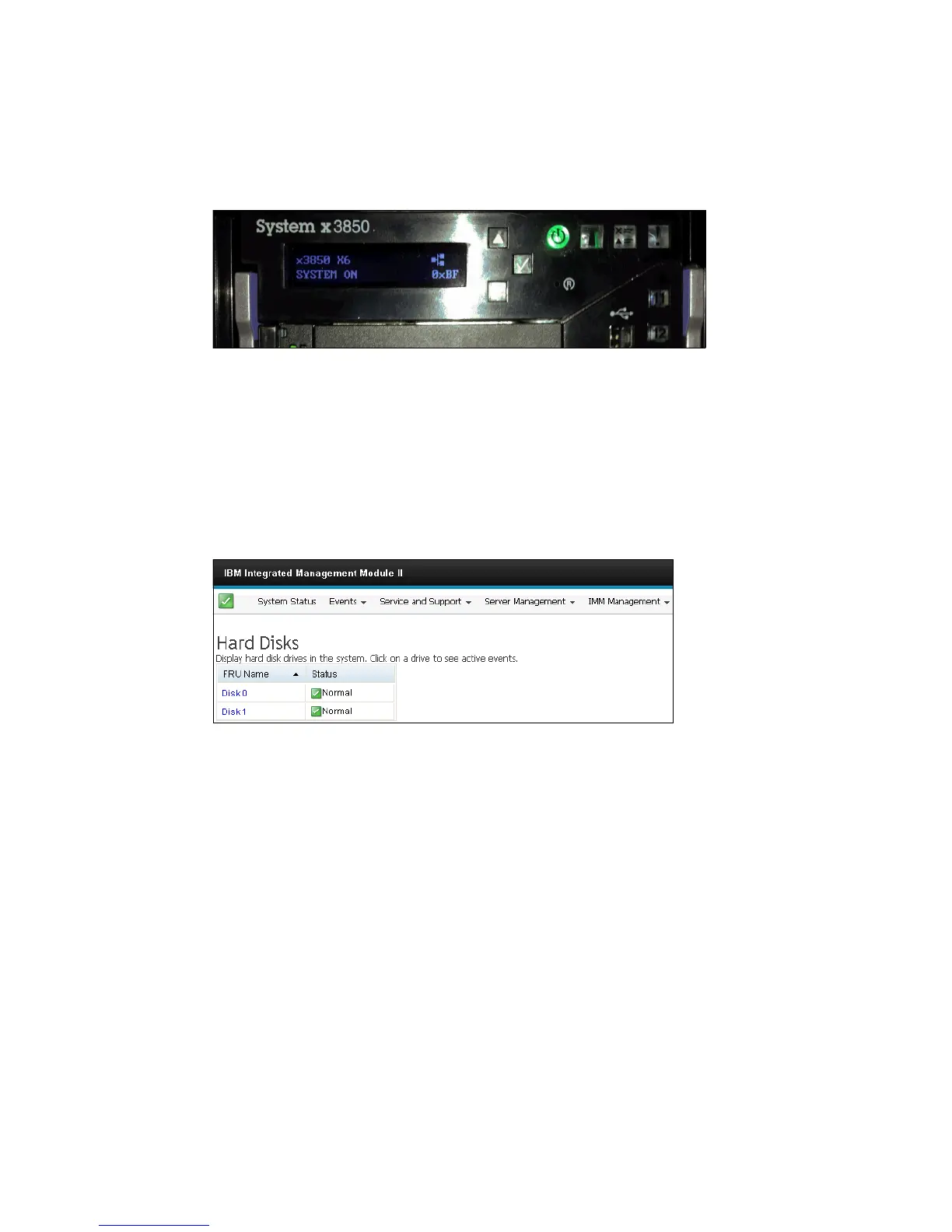

Figure 5-7 LED light path diagnostic panel
Scrolling through the LED panel using the up and down arrows shown in Figure 5-7 will reveal
the hardware subsystem that is experiencing an error.
Most servers are not physically located near the people who manage them. To help you see
the event from a remote location, the IMM2 provides the capability of looking at all tiers of
light path diagnostics via the System Status page under the Hardware Health menu as seen
in Figure 5-6 on page 138. Clicking a hardware component will reveal the hardware
component causing the error. A Hardware Status example of disks is shown in Figure 5-8.
Figure 5-8 Hardware Status example
Hardware event log
For more detailed information, including the events that led up to a failure, you can access the
hardware event log. Although not every event in the hardware event log is an event needing
attention, the event log can provide insight to the cause or conditions that led up to the failure.
The event log can be saved to a text file to be sent to IBM support.

IBM X3850 X6 Specifications

General

Chipset	Intel C602J
Network Controller	Integrated quad-port Gigabit Ethernet
Processor	Up to four Intel Xeon E7-4800 v2 series processors or Intel Xeon E7-8800 v2 series processors
Memory	Up to 6 TB of DDR3 ECC Registered DIMMs (RDIMMs) or Load-Reduced DIMMs (LRDIMMs)
Form Factor	4U rack server
Storage	Up to 24x 2.5" hot-swap SAS/SATA HDDs or SSDs
Expansion Slots	Up to 11 PCIe 3.0 slots
Power Supply	Up to four 1400W or 900W hot-swap power supplies
Memory Type	DDR3 RDIMM/LRDIMM
Storage Controller	ServeRAID M5210 SAS/SATA controller
RAID Support	RAID 0, 1, 5, 6, 10, 50, 60
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
