Chapter 5. Preparing the hardware 165
򐂰 Unassigned node: The servers are not a part of the assigned group and need to be added.
The processors cannot be accessed and the node will not function in an unassigned state.
After it has been added, the node can be assigned as a partition mode or assigned as
stand-alone mode. See Figure 5-39 for an example of two nodes in an unassigned state.

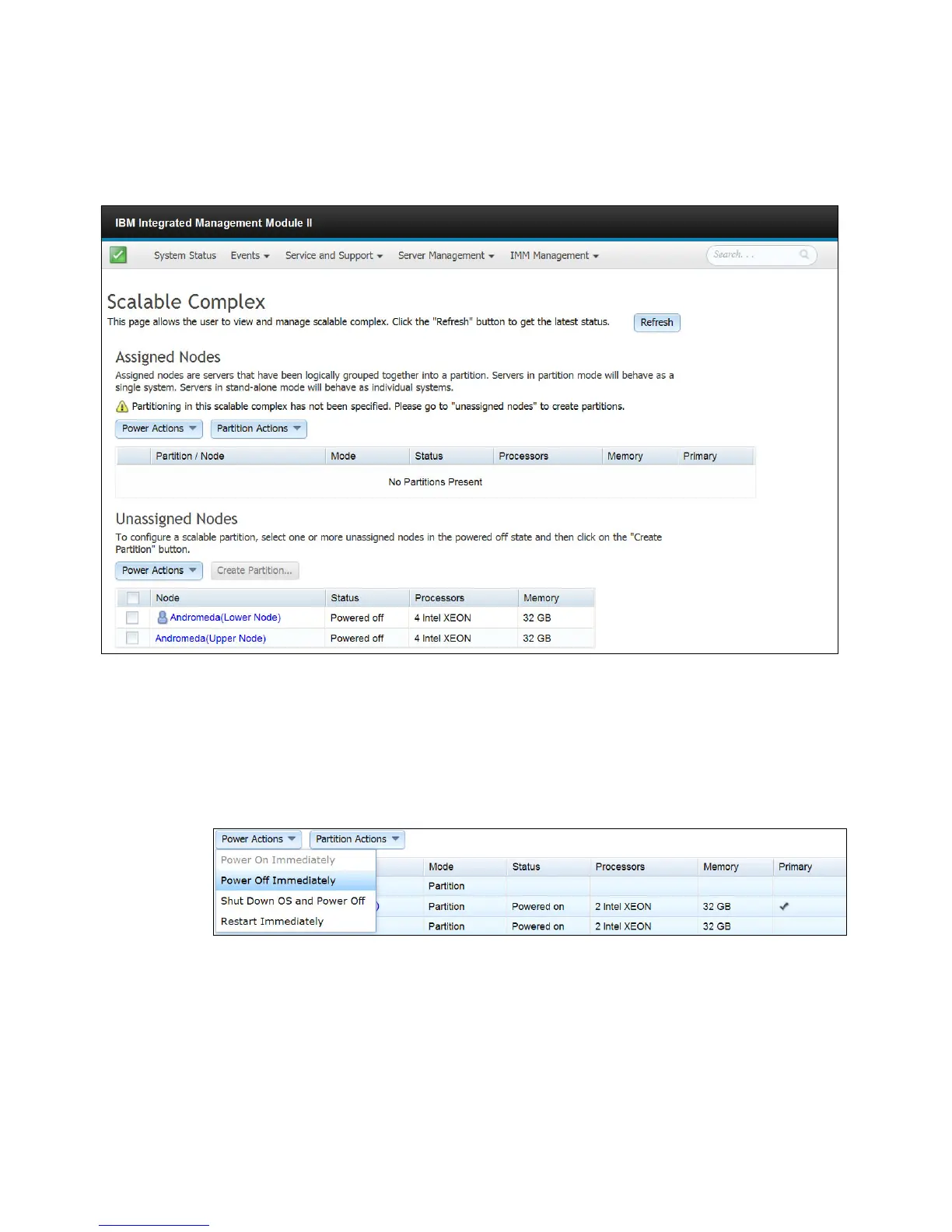

Figure 5-39 Scalable complex window with unassigned nodes
The IMM2 web interface scalable complex window allows you to perform the following
functions on assigned nodes:
򐂰 Power Actions:
– Power on/off the nodes immediately, shut down OS and power off, and restart the
nodes. See Figure 5-40.
Figure 5-40 Scalable complex window - Power Actions

IBM X3850 X6 Specifications

General

Chipset	Intel C602J
Network Controller	Integrated quad-port Gigabit Ethernet
Processor	Up to four Intel Xeon E7-4800 v2 series processors or Intel Xeon E7-8800 v2 series processors
Memory	Up to 6 TB of DDR3 ECC Registered DIMMs (RDIMMs) or Load-Reduced DIMMs (LRDIMMs)
Form Factor	4U rack server
Storage	Up to 24x 2.5" hot-swap SAS/SATA HDDs or SSDs
Expansion Slots	Up to 11 PCIe 3.0 slots
Power Supply	Up to four 1400W or 900W hot-swap power supplies
Memory Type	DDR3 RDIMM/LRDIMM
Storage Controller	ServeRAID M5210 SAS/SATA controller
RAID Support	RAID 0, 1, 5, 6, 10, 50, 60
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
