176 IBM System x3850 X6 and x3950 X6 Planning and Implementation Guide

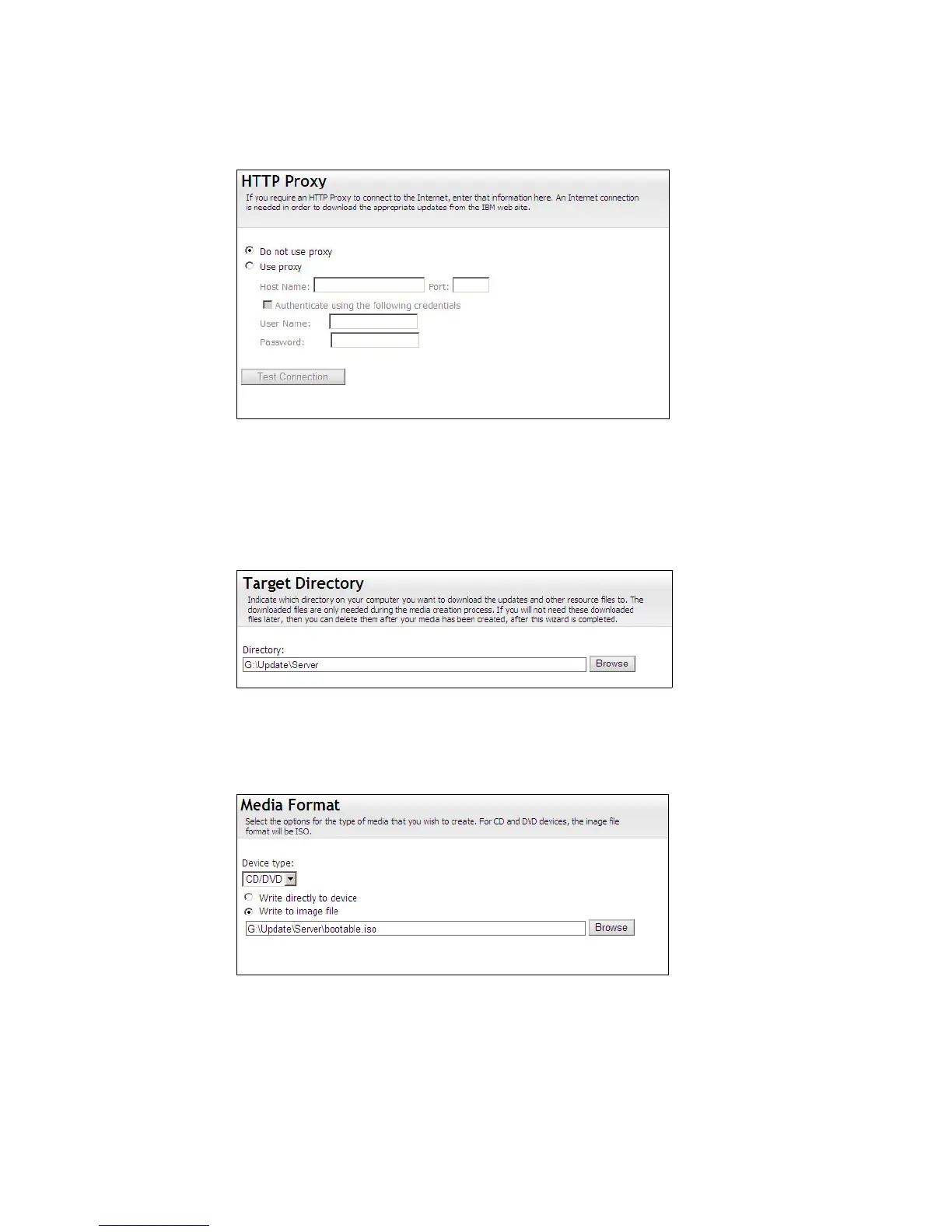

6. Enter the settings for an HTTP proxy server, if necessary, or check Do not use proxy, as
shown in Figure 5-64. Click Next.
Figure 5-64 HTTP Proxy settings
7. Select one or more machine types that are contained on the bootable media and click
Next.
8. Select the directory where you want to store the downloaded files, as shown in
Figure 5-65. Click Next.
Figure 5-65 Example of a target directory
9. By default, BoMC creates an ISO file, as shown in Figure 5-66. You can choose another
medium. Click Next.
Figure 5-66 Example of a target media

IBM X3850 X6 Specifications

General

Chipset	Intel C602J
Network Controller	Integrated quad-port Gigabit Ethernet
Processor	Up to four Intel Xeon E7-4800 v2 series processors or Intel Xeon E7-8800 v2 series processors
Memory	Up to 6 TB of DDR3 ECC Registered DIMMs (RDIMMs) or Load-Reduced DIMMs (LRDIMMs)
Form Factor	4U rack server
Storage	Up to 24x 2.5" hot-swap SAS/SATA HDDs or SSDs
Expansion Slots	Up to 11 PCIe 3.0 slots
Power Supply	Up to four 1400W or 900W hot-swap power supplies
Memory Type	DDR3 RDIMM/LRDIMM
Storage Controller	ServeRAID M5210 SAS/SATA controller
RAID Support	RAID 0, 1, 5, 6, 10, 50, 60
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
