180 IBM System x3850 X6 and x3950 X6 Planning and Implementation Guide
Integrated Management Module (IMM)
You can perform certain firmware updates using the IMM. See 7.2, “Integrated Management
Module II (IMM2)” on page 201 for information about how to connect to the IMM. The IMM2
will allow you to update DSA, IMM2 (primary and backup images), and UEFI (primary and
backup images).
The following section describes the process of updating the IMM2, UEFI, and DSA via the
IMM2 page:
1. From the IMM2 web interface, select Server Management  Server Firmware, as seen
in Figure 5-73.

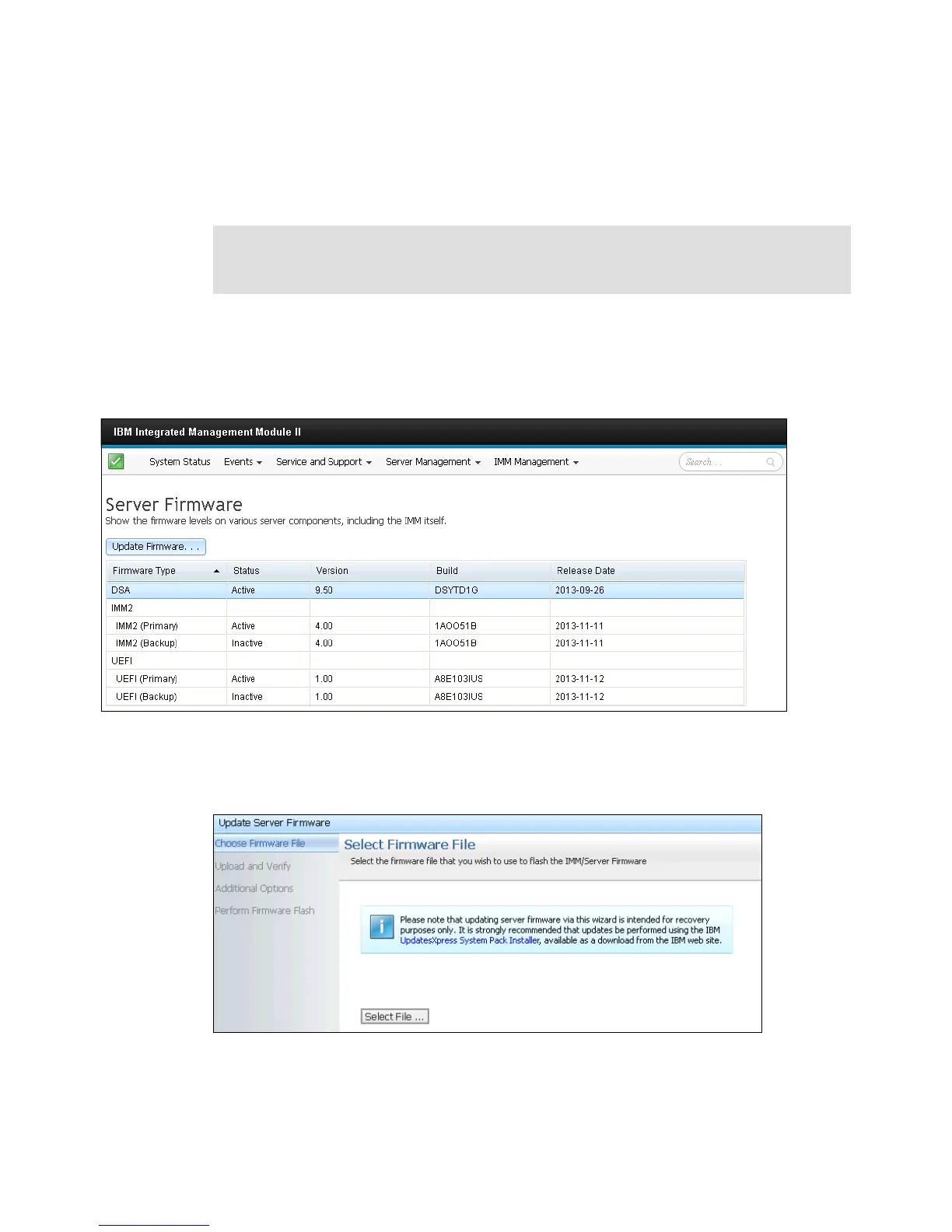

Figure 5-73 The IMM2 Server Firmware panel
2. Click Update Firmware. A wizard will launch to guide you through the update process as
seen in Figure 5-74.
Figure 5-74 IMM2 firmware selection page
3. Ensure that you have downloaded the appropriate firmware update from the IBM support
page.
4. After you have selected your file, you can perform the firmware flash.
Note: Updating server firmware via the IMM2 is intended for recovery purposes. The
preferred method of updating firmware is to use IBM UpdateXpress System Pack Installer,
as outlined in this section.

IBM X3850 X6 Specifications

General

Chipset	Intel C602J
Network Controller	Integrated quad-port Gigabit Ethernet
Processor	Up to four Intel Xeon E7-4800 v2 series processors or Intel Xeon E7-8800 v2 series processors
Memory	Up to 6 TB of DDR3 ECC Registered DIMMs (RDIMMs) or Load-Reduced DIMMs (LRDIMMs)
Form Factor	4U rack server
Storage	Up to 24x 2.5" hot-swap SAS/SATA HDDs or SSDs
Expansion Slots	Up to 11 PCIe 3.0 slots
Power Supply	Up to four 1400W or 900W hot-swap power supplies
Memory Type	DDR3 RDIMM/LRDIMM
Storage Controller	ServeRAID M5210 SAS/SATA controller
RAID Support	RAID 0, 1, 5, 6, 10, 50, 60
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
