202 IBM System x3850 X6 and x3950 X6 Planning and Implementation Guide

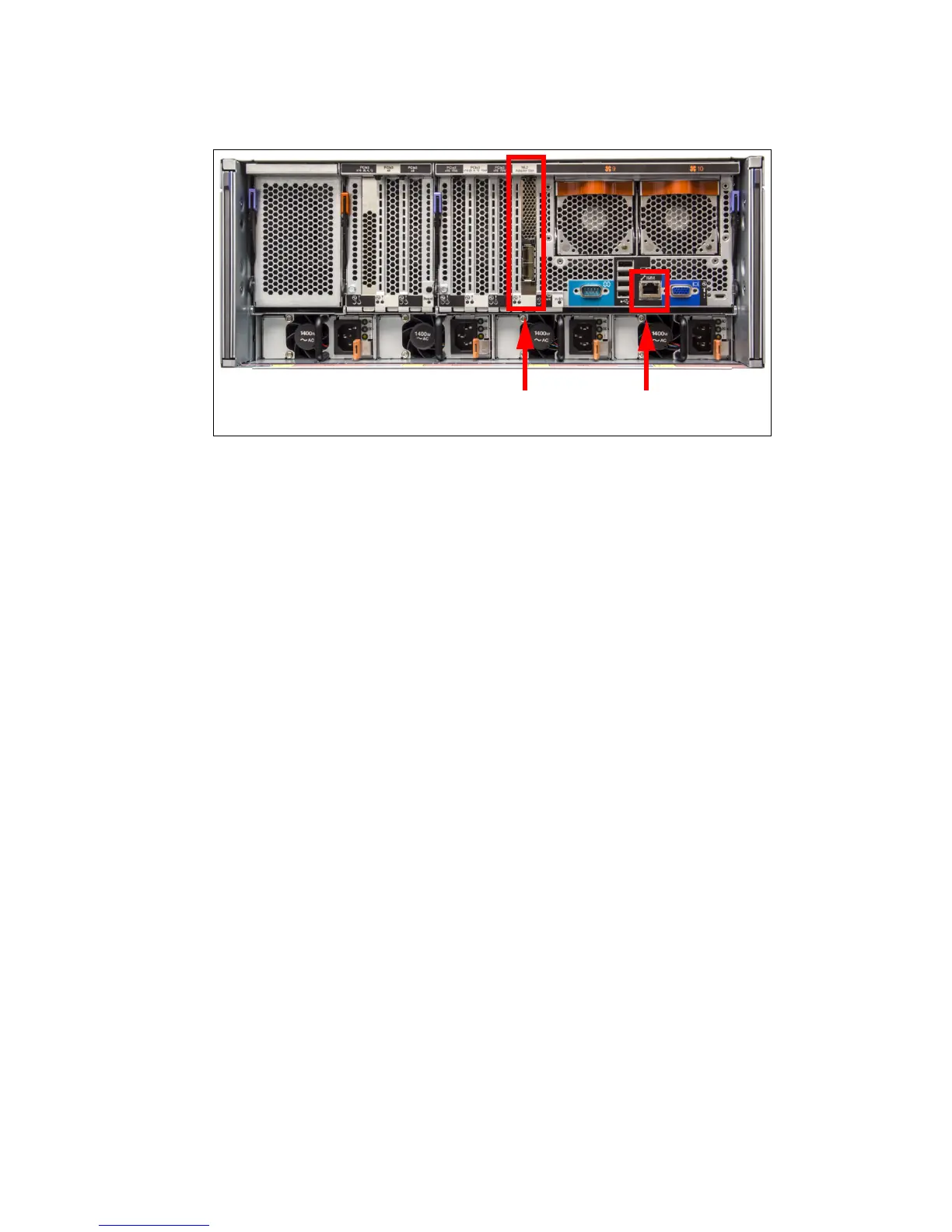

Figure 7-1 shows the location of the IMM2 and ML2 ports on the rear of the server.
Figure 7-1 Ports over which the IMM2 can be managed out-of-band on X6.
By default, the ML2 slot is not shared for use with the IMM2. You must enable this feature in
the Unified Extensible Firmware Interface (UEFI) of the server. The following sections contain
the configuration instructions.
To enable the IMM2 to use the ML2 adapter, complete the following instructions:
1. Ensure that you have an ML2 Ethernet adapter installed.
2. Boot up the server and press F1 when prompted.
3. Select System Settings from the System Configuration and Boot Management menu.
4. Select Integrated Management Module from the System Settings menu.
ML2 adapter Dedicated
IMM2 port

IBM X3850 X6 Specifications

General

Chipset	Intel C602J
Network Controller	Integrated quad-port Gigabit Ethernet
Processor	Up to four Intel Xeon E7-4800 v2 series processors or Intel Xeon E7-8800 v2 series processors
Memory	Up to 6 TB of DDR3 ECC Registered DIMMs (RDIMMs) or Load-Reduced DIMMs (LRDIMMs)
Form Factor	4U rack server
Storage	Up to 24x 2.5" hot-swap SAS/SATA HDDs or SSDs
Expansion Slots	Up to 11 PCIe 3.0 slots
Power Supply	Up to four 1400W or 900W hot-swap power supplies
Memory Type	DDR3 RDIMM/LRDIMM
Storage Controller	ServeRAID M5210 SAS/SATA controller
RAID Support	RAID 0, 1, 5, 6, 10, 50, 60
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
