IBM X3850 X6 User Manual

Chapter 7. Management 203
5. Select Network Configuration from the Integrated Management Module. This menu
allows you to configure the network settings for the IMM2. Also, you can configure the
IMM2 to share the use of ML2 or out-of-band management from this menu, as shown in
Figure 7-2.

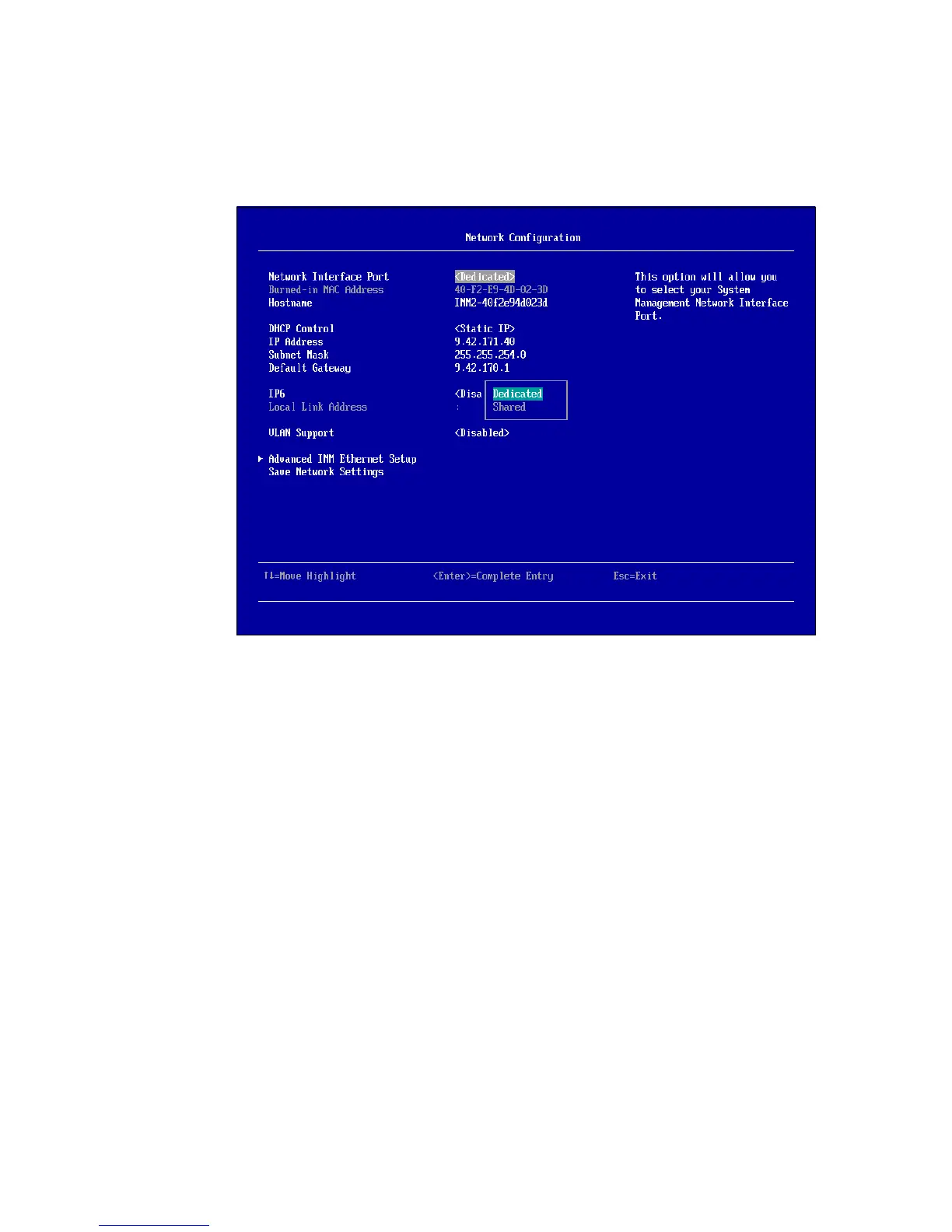

Figure 7-2 IMM2 Network Configuration panel
6. Set the Network Interface Port setting to Shared to allow the IMM2 to use the ML2
adapter.
7. For DHCP Control, choose the Static IP option.
8. For IP Address, enter the relevant IP address.
9. For Subnet Mask, enter the required subnet mask.
10.For Default Gateway, enter the required default gateway address.
11.When you have completed the IP address configuration, press Esc three times to return to
the System Configuration and Boot Management menu.
12.For Exit Setup, press the Y key when prompted to save and exit the Setup utility. At this
point, the server reboots with the new settings.
13.Plug a network cable into either the dedicated system management port or the ML2
adapter if you set the IMM2 to share its use as per instructions. Make sure that you can
ping the IP address of the IMM2 on the connected network port.

IBM X3850 X6 Specifications

General

Chipset	Intel C602J
Network Controller	Integrated quad-port Gigabit Ethernet
Processor	Up to four Intel Xeon E7-4800 v2 series processors or Intel Xeon E7-8800 v2 series processors
Memory	Up to 6 TB of DDR3 ECC Registered DIMMs (RDIMMs) or Load-Reduced DIMMs (LRDIMMs)
Form Factor	4U rack server
Storage	Up to 24x 2.5" hot-swap SAS/SATA HDDs or SSDs
Expansion Slots	Up to 11 PCIe 3.0 slots
Power Supply	Up to four 1400W or 900W hot-swap power supplies
Memory Type	DDR3 RDIMM/LRDIMM
Storage Controller	ServeRAID M5210 SAS/SATA controller
RAID Support	RAID 0, 1, 5, 6, 10, 50, 60
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
