8-4 Controller Assembly

Rev AA

Controller Assembly

Table 8-3 lists the parts of the controller assembly.

Item Number P/N Description Qty

A Controller Assembly

(Refer to Figure 8-2)

1 400885 Thermal Coder Fuse Kit Set of 10

2 403348 Power Supply Unit 1

3 403345 Processor PCB 1

4 403344 LCD Touchscreen 1

5 403183 Controller Mounting Yoke Kit 1

6 402793 Thermal Printer Mains Lead

Assembly

Table 8-3: Controller Assembly - Parts List

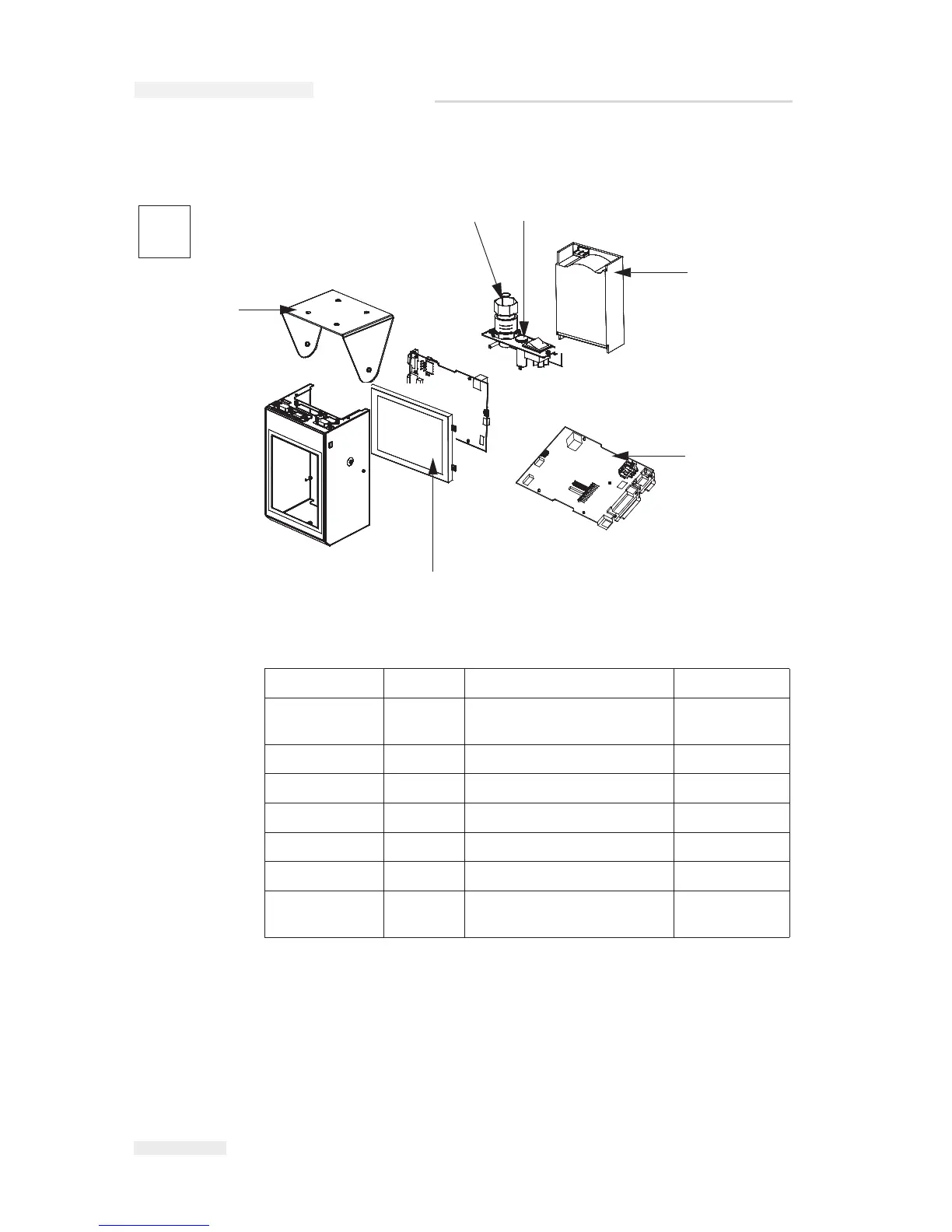

Figure 8-2: Controller Assembly
