Maintaining the Printer
This section contains the information on how to replace:
• The Compact Flash Card
• The Main PCB of the printer
• The Peel Roller
•The Printhead
• The Cassette Rollers
Replacing the Compact Flash Card
To replace the compact flash card, proceed as follows:
1 Remove the cassette and place the printer face down on a flat surface.
Remove the rear cover by unscrewing the 4 screws, one from each side
of the printer (Figure 5-12) and then lift the cover off.

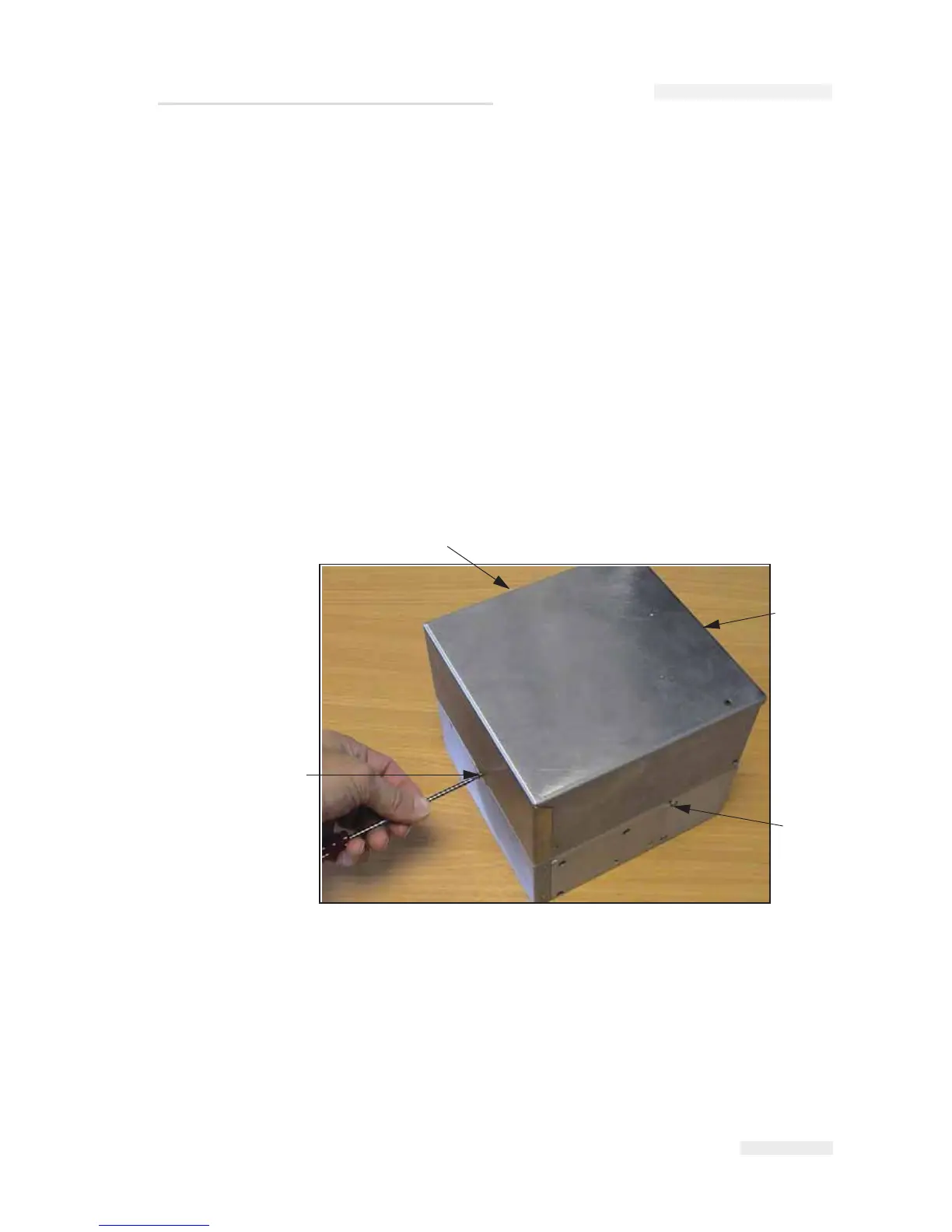

Figure 5-12: Rear Cover Removal
1. Screws
