Rev AA Maintaining the Printer 5-17
Replacing the Printhead
To replace the printhead proceed as follows.

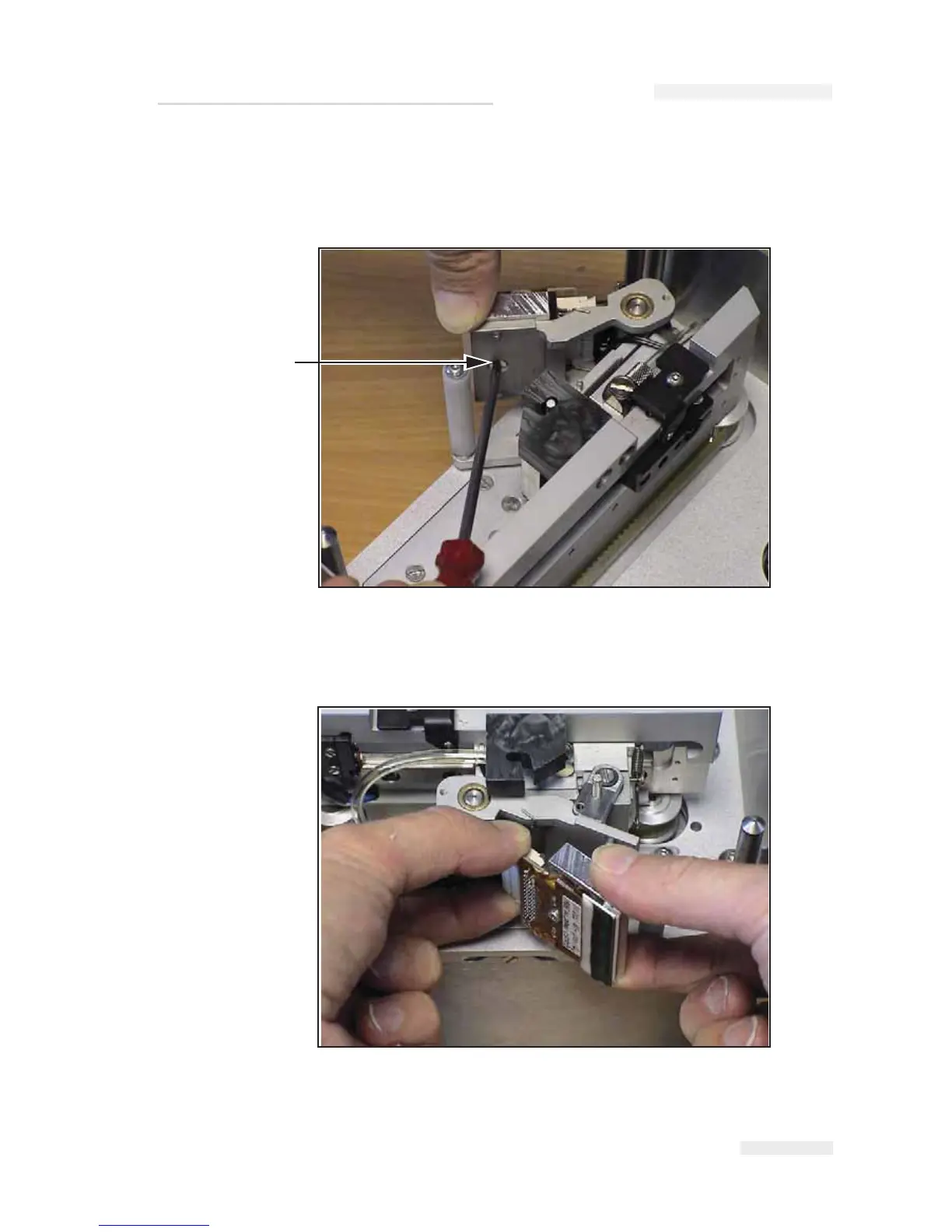

1 Remove the printhead retaining screw as shown in Figure 5-21.
2 Move the printhead from the parked position.
3 Disconnect the printhead and remove.
Printhead Screw
Figure 5-21: Printhead Screw Removal
Figure 5-22: Printhead Removal
