Drawings
Printer Dimensions

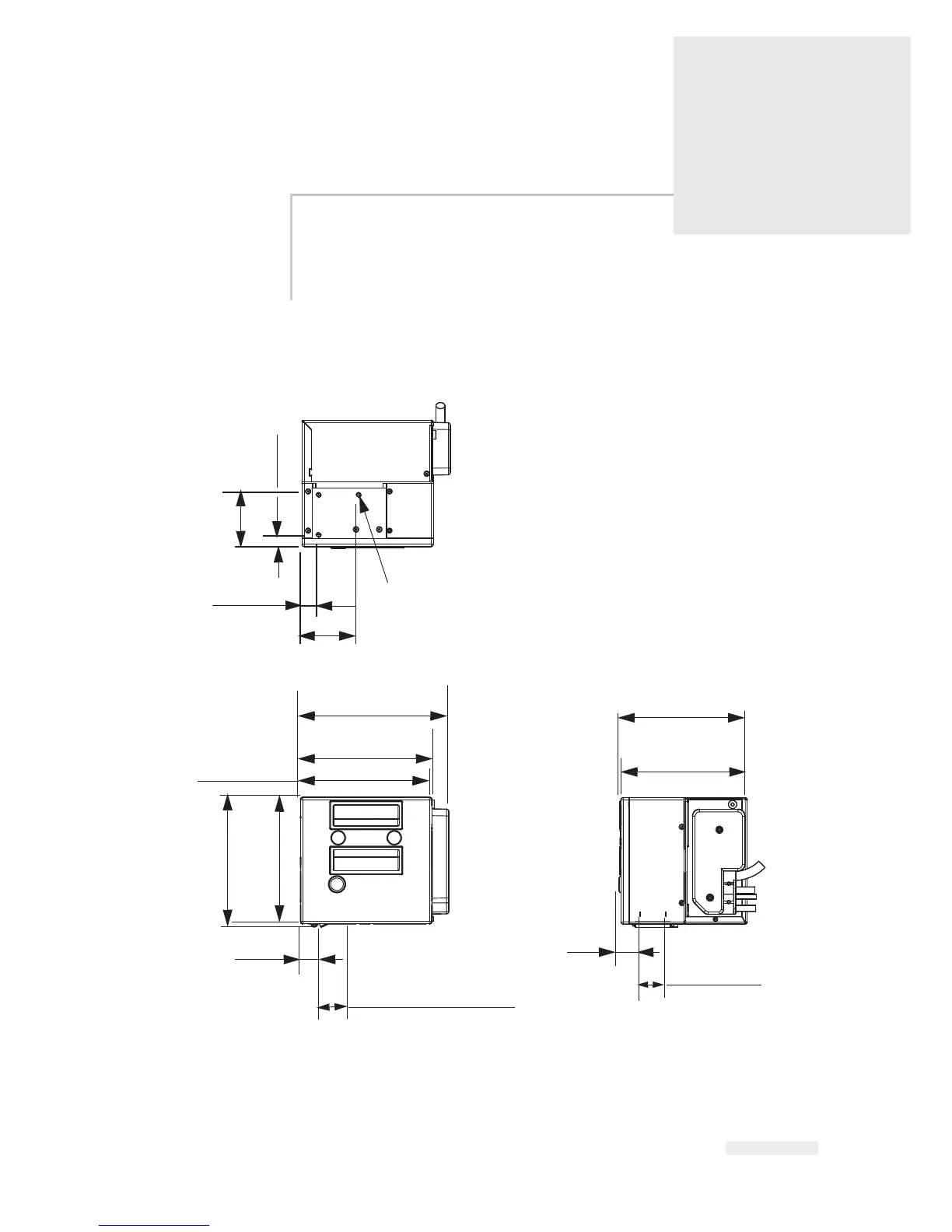

Figure 9-1 shows the dimensions of the Videojet 6210 (RH) printer.
64.50 mm (2 PLCS)
14.50 mm
70.73 mm (2.78 inches)
M6 Tapped Holes
Thread Depth 6.00
3 Places
20.73 mm (2 PLCS)
167.15 mm
185.30 mm
158.00 mm
Printhead Retracted
162.50 mm
25.70 mm
32.50 mm (1.28 inches)
157.80 mm
159.60 mm
26.20 mm
32.00 mm
Printable Area
Figure 9-1: Videojet 6210 30 mm RH Printer Dimensions
(7.3 inches)
(6.58 inches)
164.00 mm
(6.46 inches)
(1.01 inches)
Printhead Stroke
(6.4 inches)
(6.22 inches)
(6.23 inches)
(6.21 inches)
(1.03 inches)
(1.26 inches)
(2.54 inches)
0.57 inches
(0.82 inches)
