Videojet 6210 Service Manual
9-2 Printer Dimensions
Rev AA

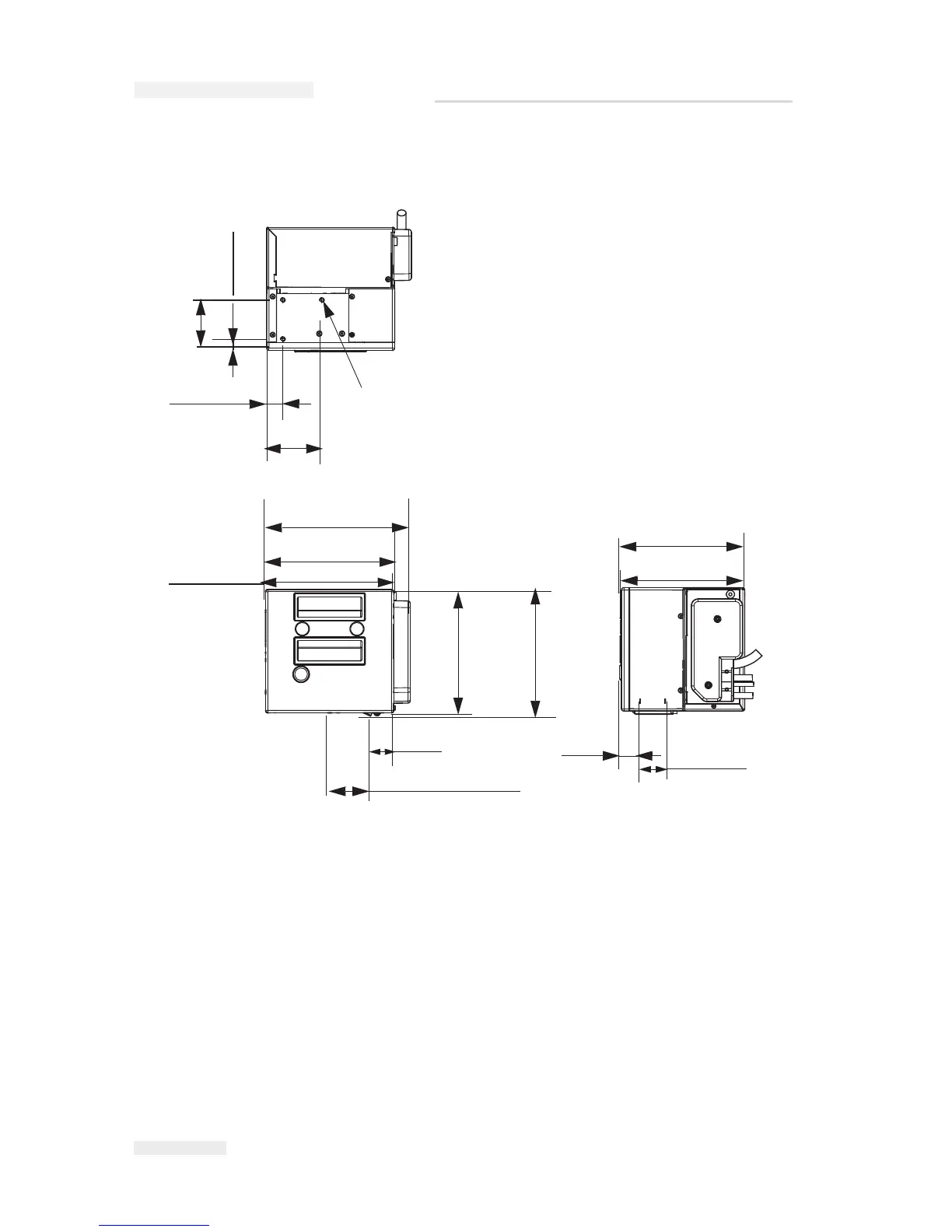

Figure 9-2 shows the dimensions of the Videojet 6210 (LH) printer.
Figure 9-2: Videojet 6210 30 mm LH Printer Dimensions
64.50 mm 2 PLCS
14.50 mm
20.73 mm 2 PLCS
70.73 mm (2.78 inches)
M6 Tapped Holes
Thread Depth 6.00
3 Places
164.00 mm
167.15 mm
185.30 mm
Printhead Retracted
162.50 mm
158.00 mm
29.0 mm
157.80 mm
159.60 mm
32.00 mm
Printable Area
32.50 mm (1.28 inches)
26.20 mm
(7.29 inches)
(0.57 inches)
(2.54 inches)
(0.82 inches)
(6.58 inches)
(6.46 inches)
(6.22 inches)
(6.39 inches)
(1.14 inches)
Printhead Stroke
(6.28 inches)
(6.21 inches)
(1.03 inches)
(1.26 inches)
